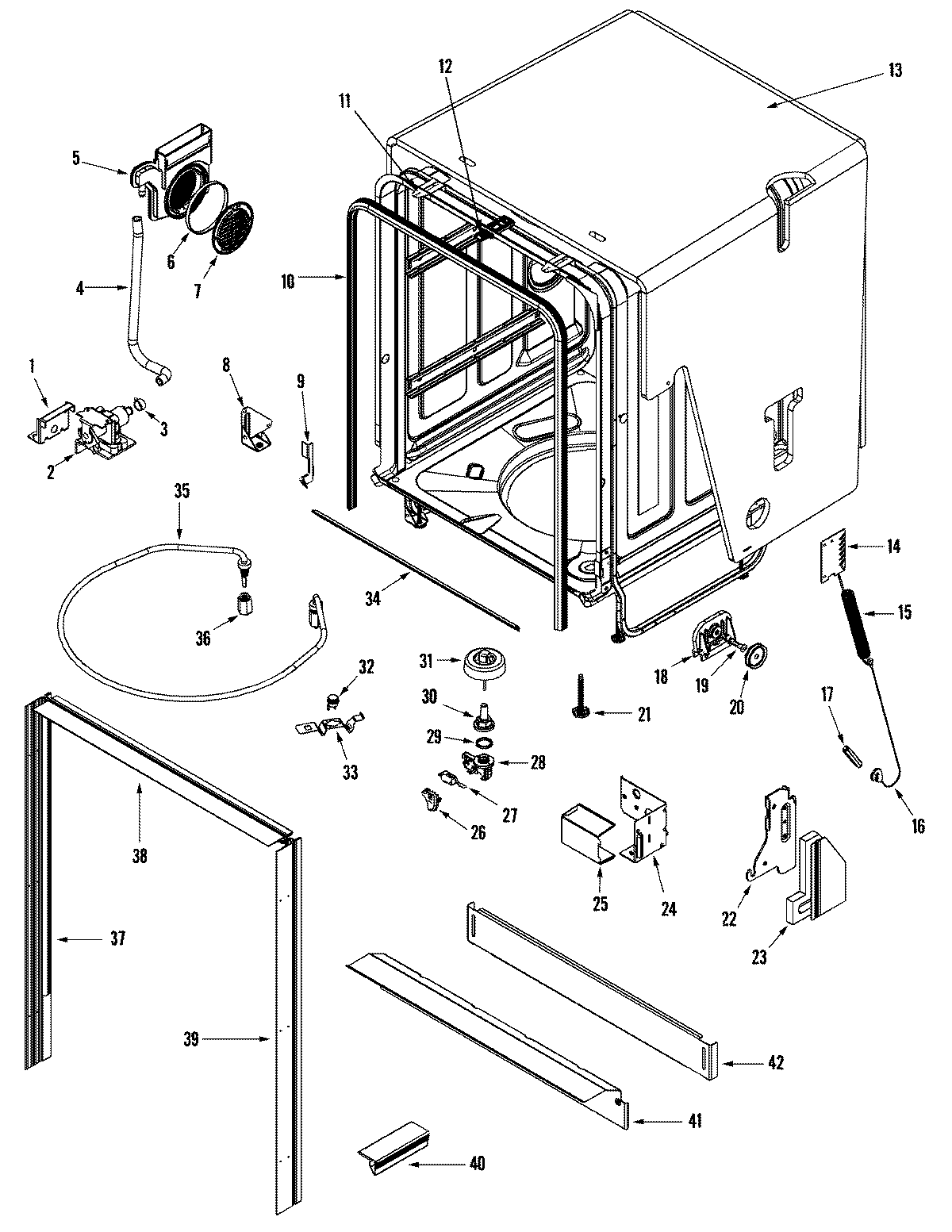

ADB3500AWS 06 – TUB

Products

Position	Product
NI	MAY 99003087
1	MAY 99002629
2	W11082871 Whirlpool Dishwasher Inlet Valve
2	MAY 99002553
3	WP596669 Whirlpool Hose Clamp
4	WP99002852 Whirlpool Dishwasher Injector Hose
5	MAY 99003028
6	WP99002150 Whirlpool Dishwasher Air Seal
7	W10259618 Whirlpool Dishwasher Deflector
8	BRACKET, SUPPORT (LT)
9	WP99003039 Whirlpool Dishwasher Trim
9	MAY 99003038
10	WP99003337 Whirlpool Door Seal
11	MAY 99002648
12	MAY 99003357
13	WPW10223013 Whirlpool Dishwasher Insulation Pad
13	FASTENER, INSULATION
14	6-918346 Whirlpool Dishwasher Bracket
15	WP99002598 Whirlpool Door Spring
16	WP99003446 Whirlpool Door Cable
18	MAY 99003687
18	MAY 99003688
18	MAY 99002607
18	MAY 99003686
19	MAY 99002609
20	WP99002608 Whirlpool Dishwasher Cable Roller
21	WPW10143258 Whirlpool Dishwasher Leg Leveler
22	MAY 99002927
22	MAY 99002928
23	BACKER, HINGE SEAL (LT)
23	BACKER, HINGE SEAL (RT)
24	BRACKET, JUNCTION BOX SUPPORT
24	SCREW 10-32X.400 (T-20 HEAD)
25	MAY 912365
25	MAY 99002638
26	MAY 99003079
27	MAY 99002631
28	MAY 99003031
29	W10833055 Whirlpool Dishwasher Standpipe
30	WPW10268755 Whirlpool Dishwasher Float
31	MAY 99002630
32	MAY 99002633
33	MAY 99001008
34	WP99003041 Whirlpool Dishwasher Trim
35	W10283681 Whirlpool Dishwasher Heater
35	MAY 99002973
36	MAY 99003033
37	MAY 99003034
38	MAY 99003036
39	MAY 99003035
39	MAY 99002692
40	GAP SEAL, TOE KICK (BLK)
41	SUPPORT, FRONT (W/SEALS)(BLK)
42	WP6-912366 Whirlpool Dishwasher Screw
42	PANEL, TOE (W/DAMPER-BLK)
42	Damper, Toe Panel (Black)
