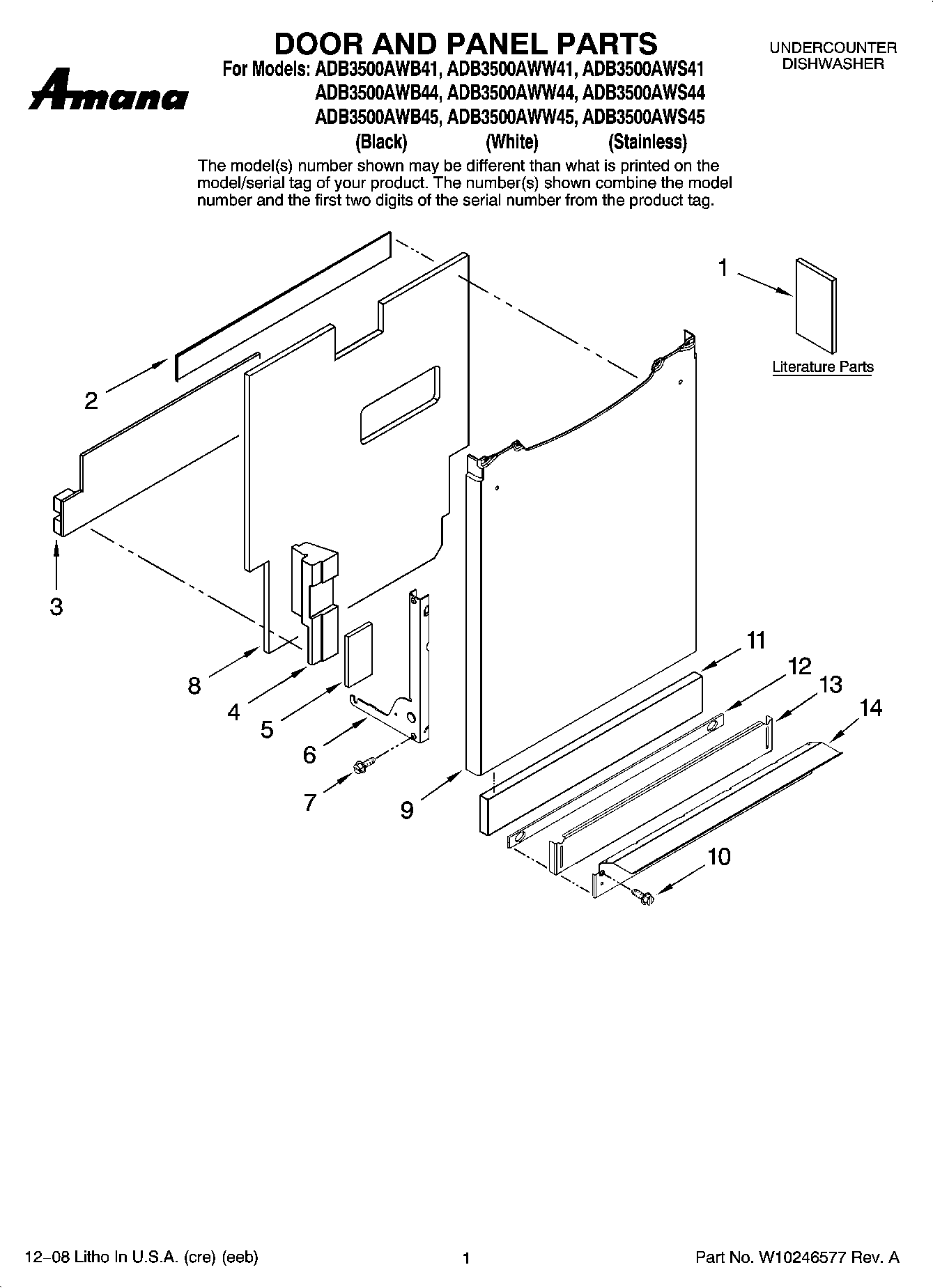

ADB3500AWS45 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Guide, Use & Care
1	MAY W10158012
1	Energy Guide
2	DAMPER (2`` X 20``)
3	MAY 99003048
4	MAY 99003047
4	MAY 99003046
5	MAY 99003049
6	MAY 99002929
6	WPW10118637 Whirlpool Dishwasher Bracket
7	MAY 99001075
8	MAY 99003044
9	MAY 99002770
9	MAY 99002771
9	PANEL, DECO (W/DAMPER-BLK)
10	WP6-912366 Whirlpool Dishwasher Screw
10	SCREW, ACCESS PANEL
11	WP6-920587 Whirlpool Dishwasher Shield
12	MAY 99002698
12	Damper, Toe Panel (Black)
13	MAY 99002766
13	PANEL, TOE (W/DAMPER-BLK)
14	SUPPORT, FRONT (W/SEALS)(WHT)
14	SUPPORT, FRONT (W/SEALS)(BLK)
