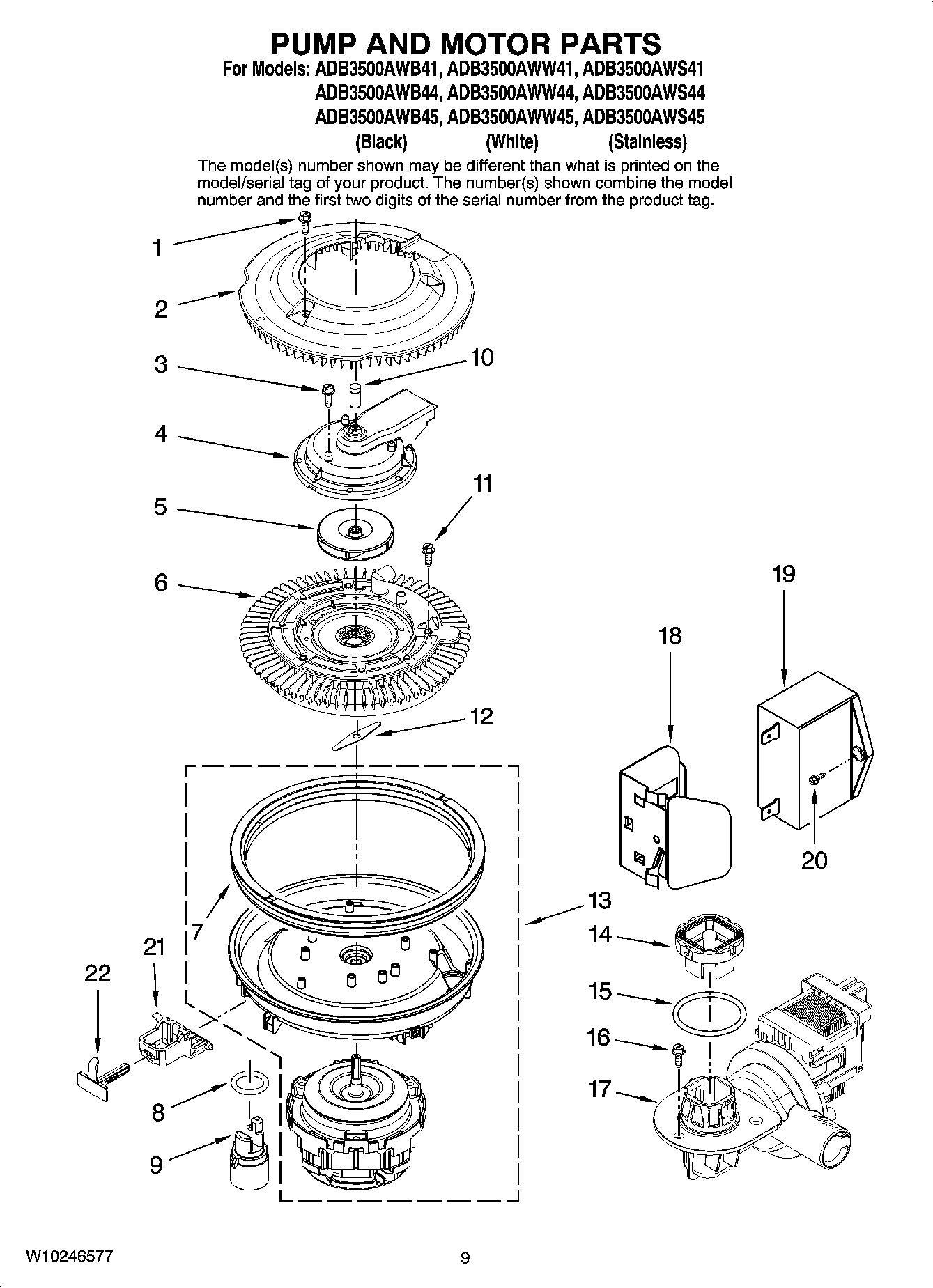

ADB3500AWW45 08 – PUMP AND MOTOR PARTS

Products

Position	Product
1	MAY 99002666
2	WPW10166788 Whirlpool Dishwasher Filter Frame
3	SCREW, STAINLESS PAN HEAD
4	DISCHARGE HOUSING ASSY (UPR)
5	WP99002659 Whirlpool Impeller
6	Filter/Flowplate Assembly
7	12002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
8	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
9	MAY 99003613
10	MAY 99003697
11	SCREW, DISCHARGE HOUSING
12	MAY 99003427
13	MAY 6-919962
14	MAY 99003309
15	MAY 99002857
16	SCREW, TRUSS HEAD (10-18X.75)
17	MAY W10200518
18	MAY 99003440
19	CAPACITOR, MOTOR
20	SCREW 10-32X.400 (T-20 HEAD)
21	MAY 99003056
22	MAY 99003057
