ADE18D1G2 1 – Aparts

ADE18D1G2 1

Products

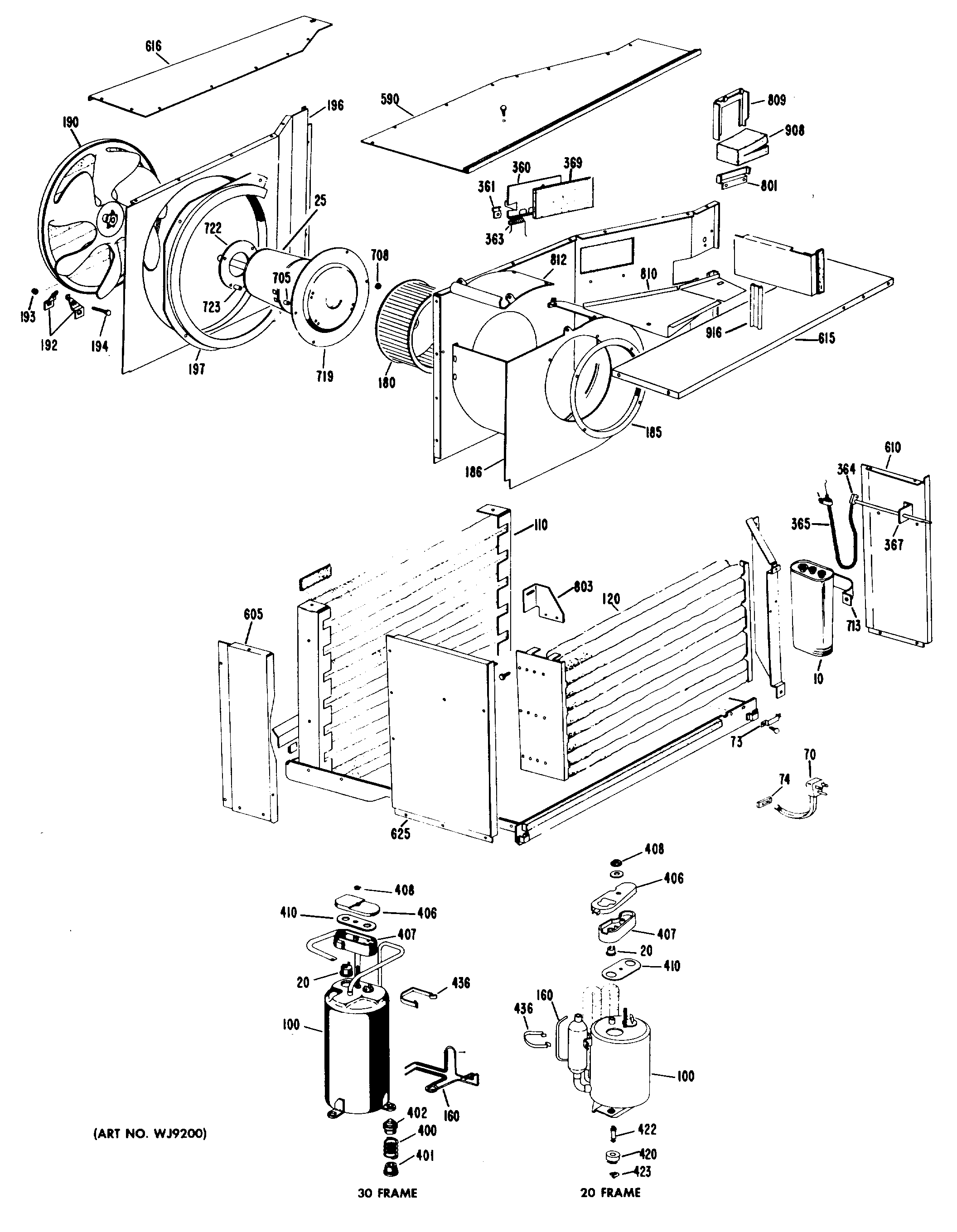

Position	Product
10	GEN WJ20X0324
20	GEN WJ23X0180
25	GEN WJ94X0513
70	GEN WJ35X0099
73	CLAMP POWER CORD
74	GEN WJ01X0361
100	GEN WJ98X0441
110	GEN WJ88X0083
120	GEN WJ87X0200
160	CAPILLARY .054 CUT TO 16
160	CAPILLARY .036 CUT TO 14
160	CAPILLARY .042 CUT TO 15
180	GEN WJ74X0058
185	INDOOR ORIFICE
186	GEN WJ76X0219
190	GEN WJ73X0043
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0236
197	BAFFLE
360	GEN WJ70X0283
360	GEN WJ70X0166
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	GEN WJ14X0097
365	GEN WJ14X0095
400	GEN WJ02X0259
400	GEN WJ02X0258
400	GEN WJ02X0257
401	GEN WJ01X0348
402	GEN WJ01X0347
406	GEN WJ79X0302
407	GEN WJ79X0301
408	GEN WJ01X0292
410	GEN WJ43X0333
436	ACCUMULATOR CLAMP
590	COVER ASM
610	GEN WJ81X0064
615	GEN WJ79X0347
616	GEN WJ79X0285
625	GEN WJ82X0064
708	GEN WJ01X0445
713	GEN WJ03X0230
722	GEN WJ66X0197
723	GEN WJ01X0417
801	PLATE
809	TUBE SEAL CLAMP
810	COVER EVAPORATOR
812	GEN WJ76X0217
916	SPACER
