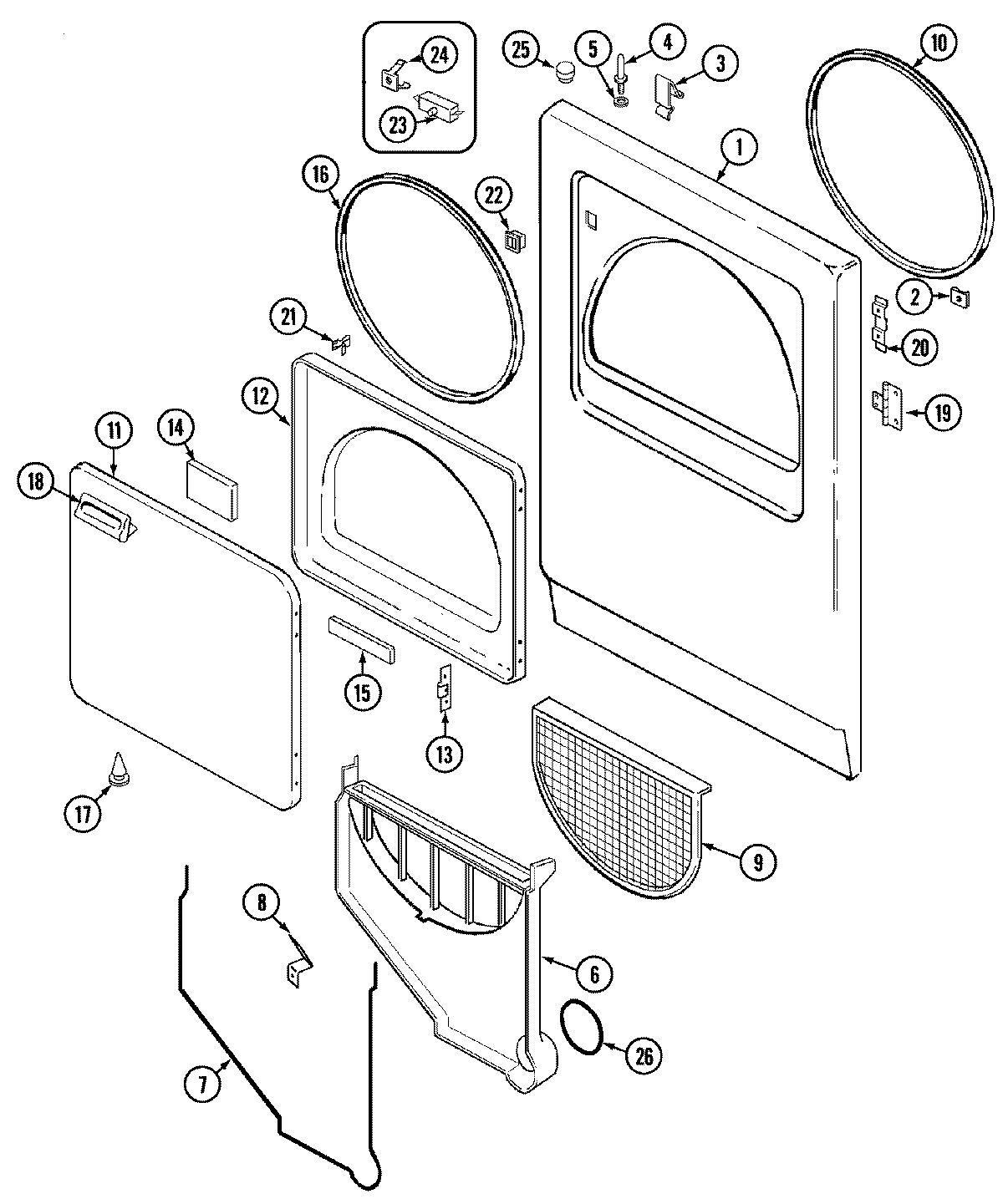

ADE25K3W 04 – DOOR (REV. E)

ADE25K3W 04 – DOOR (REV. E)

Written by

in

ADE25K3W 04 – DOOR (REV. E)

Products

PositionProduct
1MAY 53-0726
2WP489478 Whirlpool Refrigerator Screw
2MAY 25-7817
3WP25-7220 Whirlpool Cabinet Clip
4MAY 53-0643
5MAY 25-0224
5MAY 53-0200
6MAY 53-1299
7MAY 53-0204
8MAY 53-0123
9WP53-0918 Whirlpool Lint Filter
10MAY 53-0282
11MAY 53-0124
12MAY 53-0912
13MAY 53-0119
14MAY 53-1490
15MAY 53-1491
16MAY 25-7770
16WP31001529 Whirlpool Door Seal
17MAY 25-3534
18MAY 53-0928
18MAY 25-7810
19MAY 53-1492
19W10756178 Whirlpool Screw
20MAY 53-0121
21MAY 73-0033
22WP489483 Whirlpool Screw
22LA-1003 Whirlpool Dryer Door Catch and Metal Strike
23MAY LA-1005
23MAY 53-0147
24MAY 63-5990
25MAY 33-2653
2612001324 Whirlpool Collector Duct
