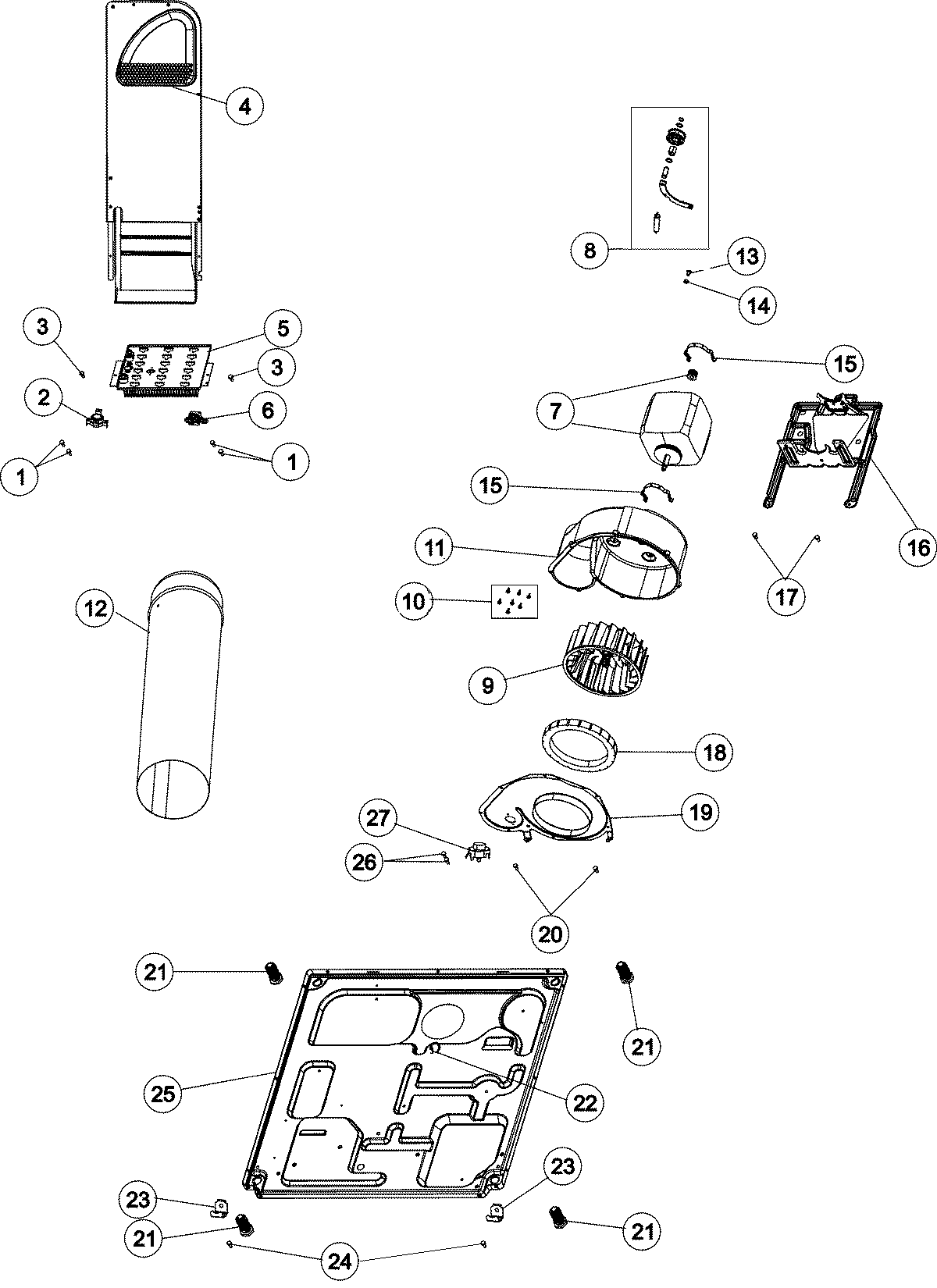

ADE7005AKW 01 – BASE, HEATER & MOTOR

Products

Position	Product
1	WP3177991 Whirlpool Screw
2	WPW10116735 Whirlpool Dryer High Limit Thermostat
4	MAY 503605
5	WPY503978 Whirlpool Heating Element
6	MAY 40113801
7	MAY 37001253
8	WP37001287 Whirlpool Dryer Idler Lever Shaft Pulley
9	MAY 56000
10	MAY 31260
11	MAY 56020
12	MAY 505518
13	D500824 Speed Queen Screw
14	WPW10139757 Whirlpool Nut
15	WP660658 Whirlpool Clamp
16	MAY 503613
18	MAY 37001119
19	MAY 500078
20	WP3390631 Whirlpool Screw
21	MAY Y500101
22	MAY 504034
23	MAY 37001145
24	WP27001200 Whirlpool Screw
25	MAY 37001156
26	MAY 501086
27	MAY Y308037
