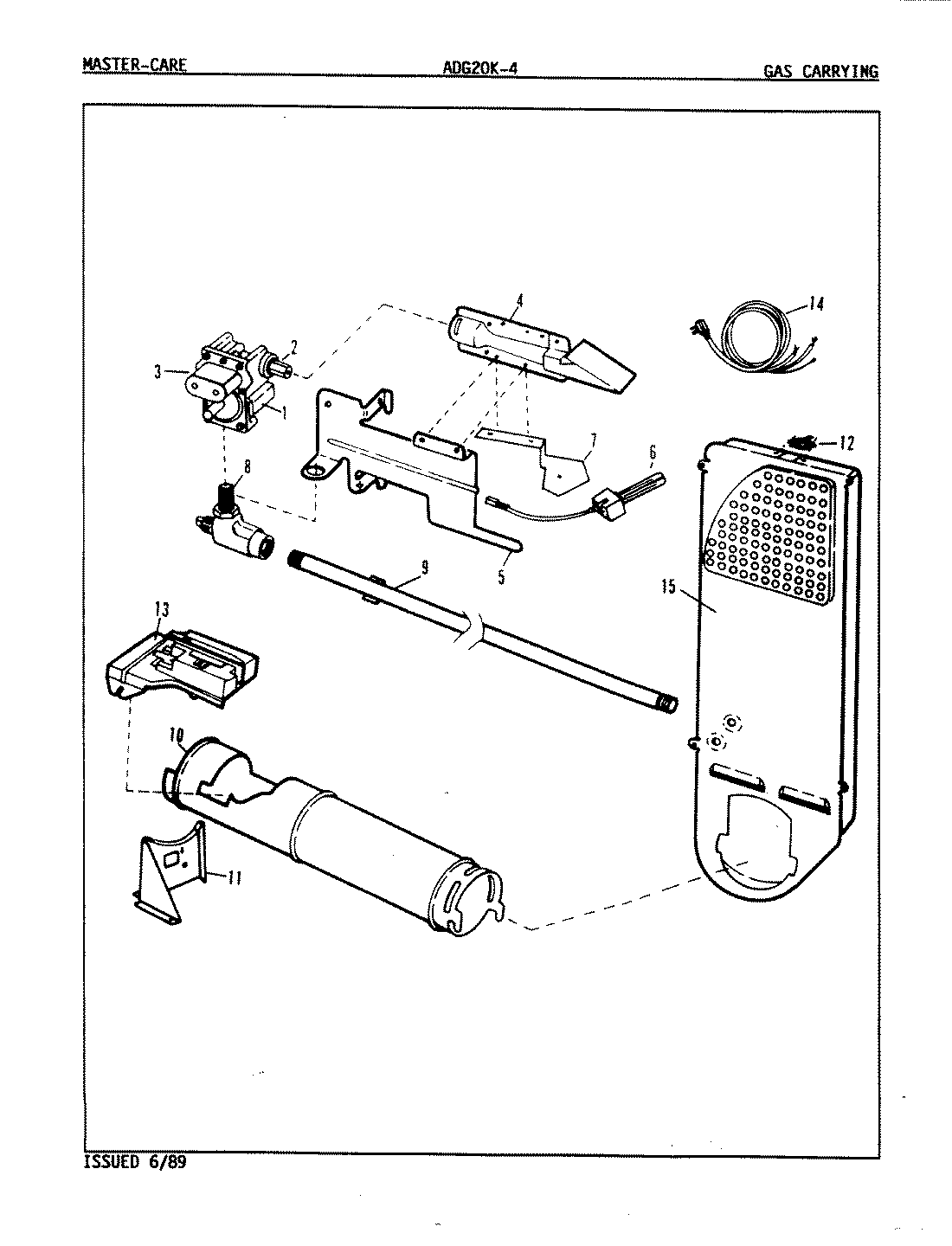

ADG20K4A 03 – GAS CARRYING (REV. A-B)

Products

Position	Product
1	MAY 53-0194
2	MAY 63-3570
3	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3	MAY 63-6615
3	MAY 63-6614
4	MAY 63-6682
5	MAY 53-0140
6	WP31001556 Whirlpool Igniter
7	MAY 25-3034
7	MAY 25-7744
7	MAY 53-0686
8	MAY 53-0101
9	MAY 53-0173
10	MAY 53-0138
11	MAY 53-0139
12	MAY 53-0143
12	MAY 25-0168
13	MAY 25-2134
13	WP90767 Whirlpool Screw
13	MAY 25-7741
13	WP338906 Whirlpool Dryer Gas Sensor
14	MAY 63-6259
15	LA-1053 Whirlpool Dryer Thermal Fuse
15	MAY 53-0169
15	WP63-6766 Whirlpool LP Conversion Kit
