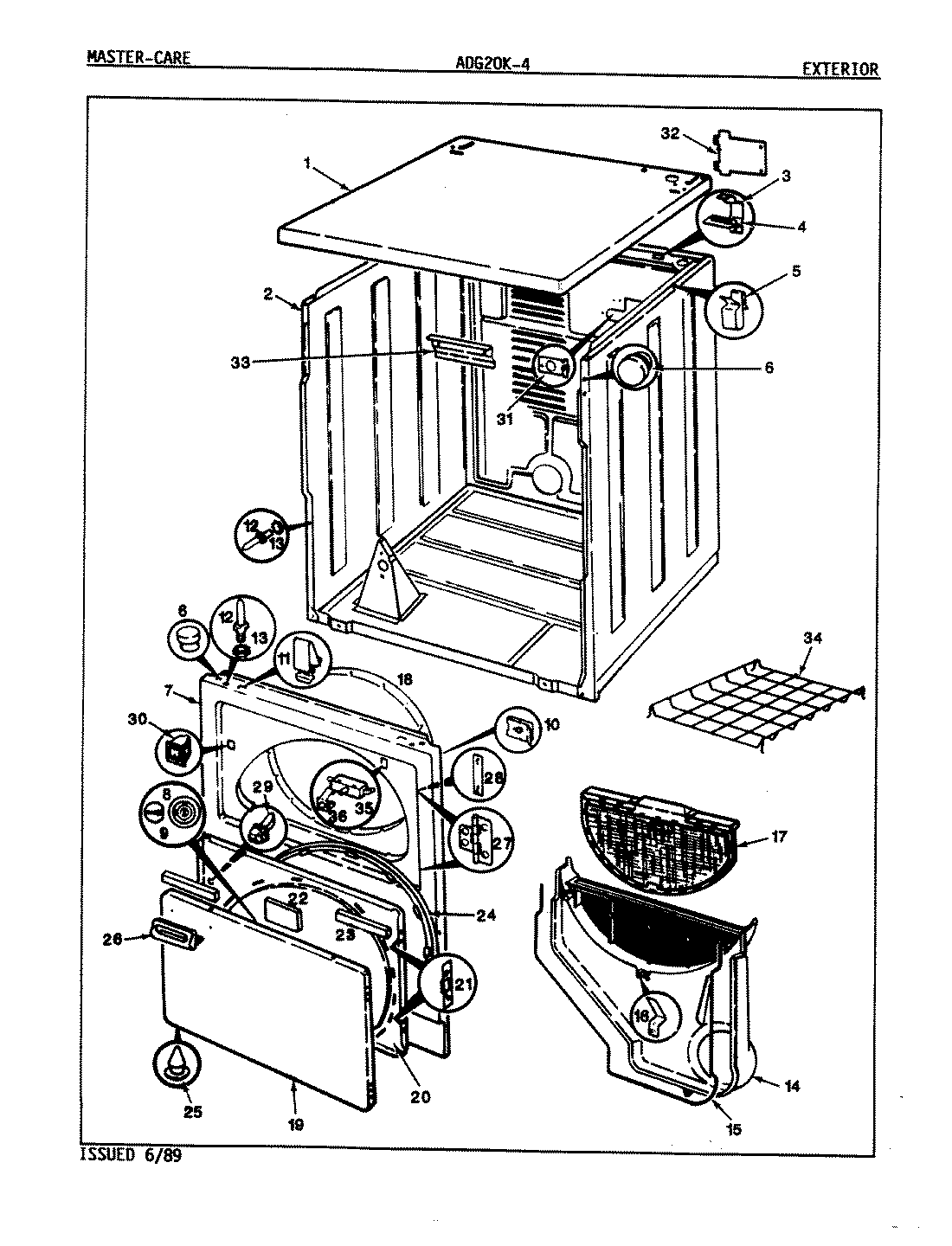

ADG20K4W 03 – EXTERIOR (REV. A-B)

Products

Position	Product
1	MAY 53-0314
2	MAY 53-0667
3	MAY 63-5712
4	WP90767 Whirlpool Screw
4	MAY 33-0930
5	MAY 25-3034
6	MAY 33-2653
7	MAY 53-0727
8	MAY 53-0592
8	MAY 53-0155
8	MAY 53-0161
9	MAY 53-0593
9	MAY 53-0156
9	MAY 53-0162
10	MAY 25-7817
10	WP489478 Whirlpool Refrigerator Screw
11	WP25-7220 Whirlpool Cabinet Clip
12	MAY 63-6148
13	MAY 25-0224
13	MAY 53-0200
14	MAY 53-0917
14	MAY 53-1299
15	MAY 53-0204
15	MAY 53-1298
16	MAY 53-0123
17	WP53-0918 Whirlpool Lint Filter
18	MAY 53-0282
19	MAY 53-0154
20	MAY 53-0912
21	MAY 53-0119
22	MAY 53-0251
23	MAY 53-0252
24	WP31001529 Whirlpool Door Seal
24	MAY 25-7770
25	MAY 25-3534
26	MAY 25-7810
26	MAY 53-0928
27	MAY 53-0122
28	W10756178 Whirlpool Screw
28	MAY 53-0121
28	LA-1003 Whirlpool Dryer Door Catch and Metal Strike
29	MAY 73-0033
30	MAY 73-0034
32	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
32	MAY 53-0283
34	MAY 53-0772
34	MAY LA-1005
35	MAY 53-0148
36	MAY 63-5990
36	MAY 63-5577
