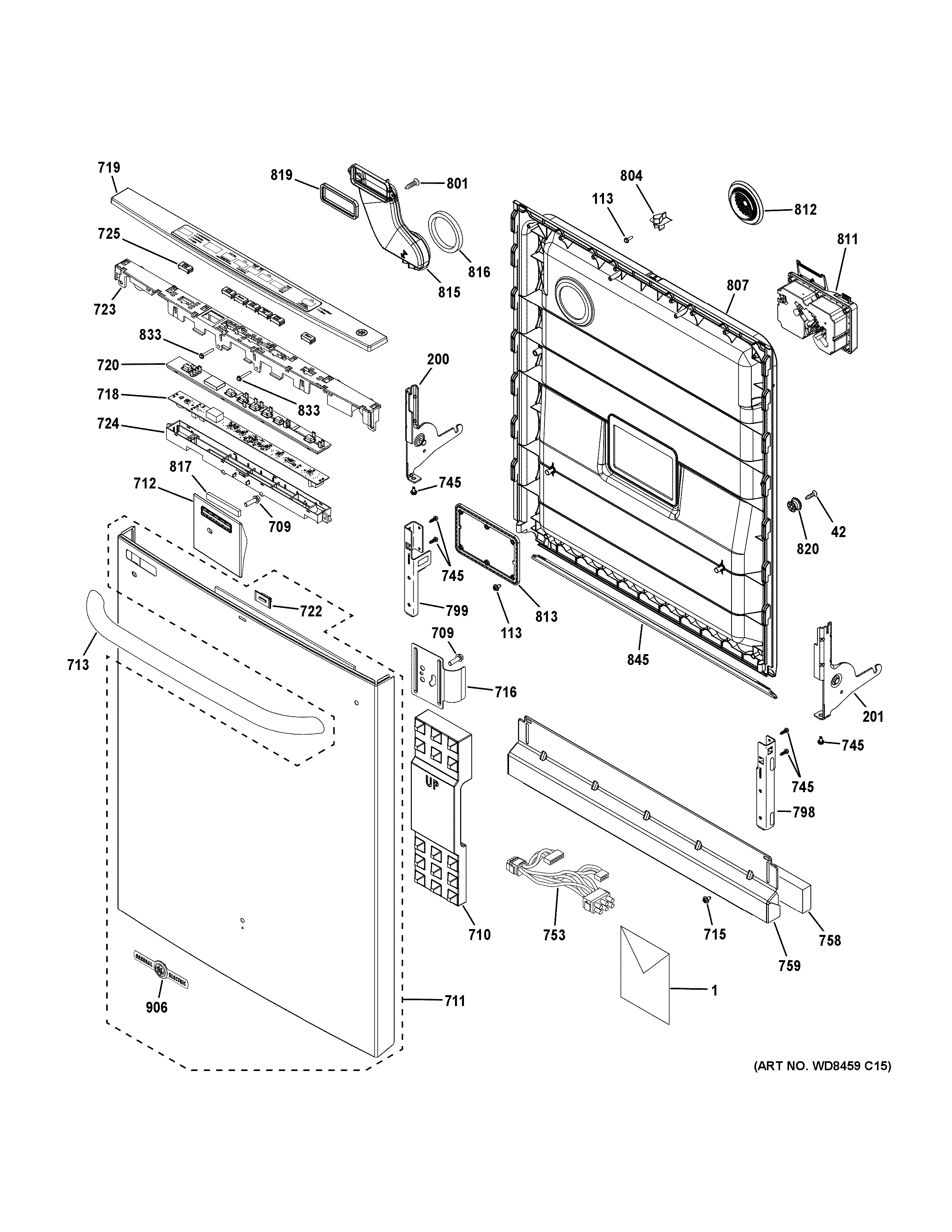

ADT521PGF0BS ESCUTCHEON & DOOR ASSEMBLY

ADT521PGF0BS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

ADT521PGF0BS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1INSERT MINI MANUAL
1PM OWNERS MANUAL
1PM MINI-MANUAL
1PM INSTALL INSTRUCTIONS
42SCREW #8-3/4 L HX HD SS
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly
201WD14X20129 GE Dishwasher Left Door Hinge Assembly
709SCR 10-32 TT HEX 14/25 S
710WD01X10578 GE Dishwasher Foam Door Block
711KIT DOOR ASM OUTER
712VENT ADAPTER
713WD09X21014 GE Dishwasher Stainless Steel Handle
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
716WD01X20135 GE Dishwasher Handle Bracket
718CONFIGURED UI BOARD
719CONSOLE CVR GRAPHIC ASM
720WD12X10454 GE Dishwasher Silicone Light Pipe
722WD09X20066 GE Dishwasher Lens and Adhesive Assembly
723WD12X10469 GE Dishwasher Control Cover
724WD12X10470 GE Dishwasher Bottom Housing
725BUTTON AND GRAPHICS ASM
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X10545 GE Dishwasher Door Harness Assembly
758WD27X21334 GE Insulation
759TOE KICK
798WD01X22513 GE Dishwasher Hinge Support Bracket
799WD01X22512 GE Dishwasher Hinge Support Bracket
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
804WD13X10071 GE Dishwasher Door Strike
807WD27X29398 GE Inner Door
811DETERGENT MODULE
812WD12X10471 GE Dishwasher Grey Hybrid Vent
813WD12X10420 GE Dishwasher Detergent Plate
815WD35X20855 GE Dishwasher Vent for Non-Fan Models
816DOOR VENT SEAL
817WD08X10102 GE Foam Blanking Top Control
819GASKET VENT
820WD01X24424 GE Dishwasher Mounting Basket Door Kit
833WD2X295 GE Refrigerator Screw
845WD08X21894 GE Dishwasher Door Gasket
906WD04X20426 GE Assembly Bad
