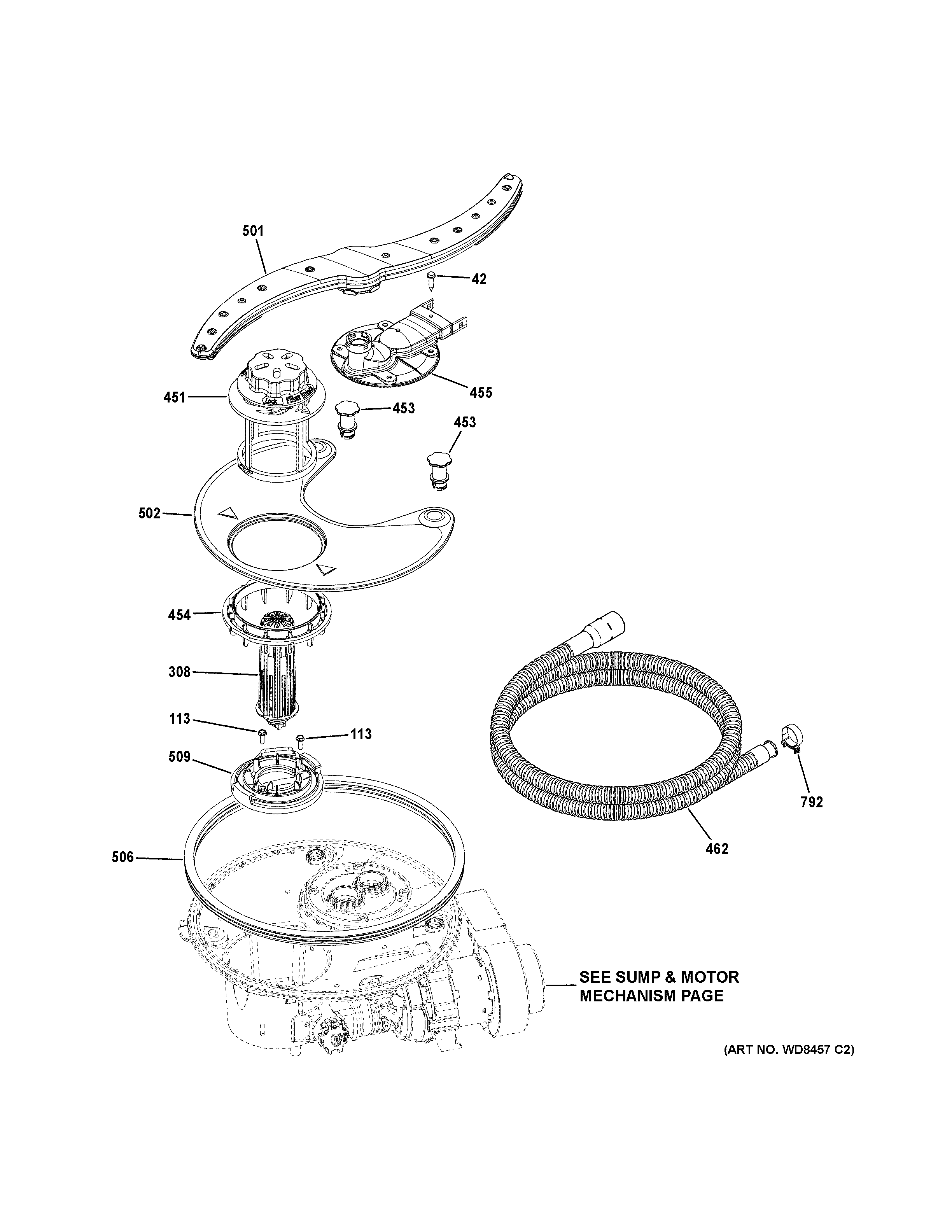

ADT521PGF6WS SUMP & FILTER ASSEMBLY

ADT521PGF6WS SUMP & FILTER ASSEMBLY

Written by

in

ADT521PGF6WS SUMP & FILTER ASSEMBLY

Products

PositionProduct
42SCREW #8-3/4 L HX HD SS
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
308WD21X10519 GE Dishwasher Flood Switch
451WD49X24057 GE Dishwasher Ultra Fine Filter Kit Replacement
453WD24X10057 GE Vent Filter Replacement
454WD12X10419 GE Dishwasher Adapter Filter
455WD18X10051 GE Dishwasher Rear Feed Tube Adapter
462DRAIN TUBE ASM
501WD22X33499 GE Dishwasher Lower Spray Arm – Heat Shield No Longer Required
502WD22X10092 GE Dishwasher Coarse Filter, Plastic
506WD08X22758 GE Dishwasher Gasket
509WD12X10421 GE Dishwasher Floor Plate Manual
792WD01X10104 GE Dishwasher Hose Clamp
