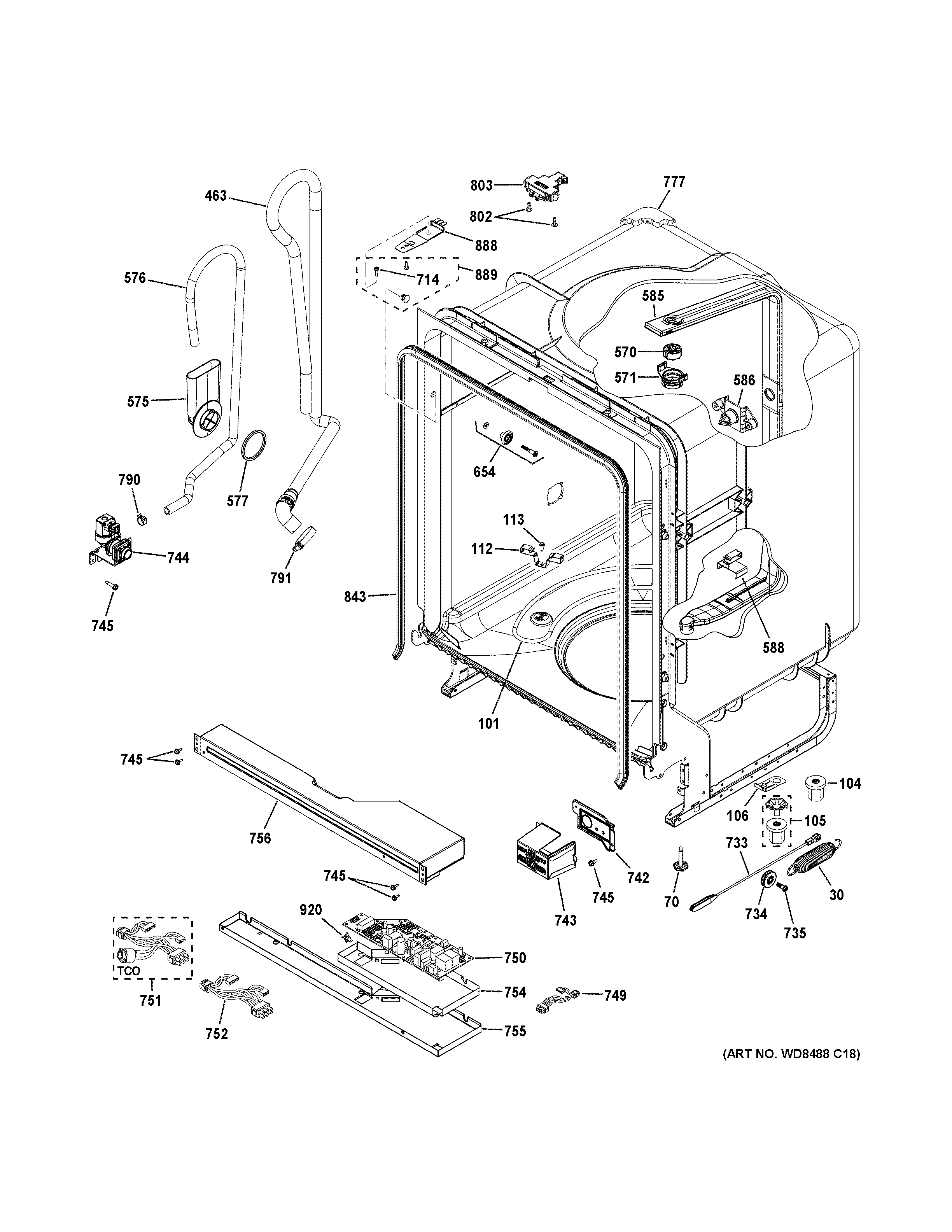

ADT521PGJ2WS BODY PARTS

ADT521PGJ2WS BODY PARTS

Written by

in

ADT521PGJ2WS BODY PARTS

Products

PositionProduct
30WD03X20446 GE Dishwasher Door Spring
70WD02X31882 GE Leveling Leg
101HEATING ELEMENT
104WD01X10070 GE Dishwasher Nut
105WD02X28518 GE Dishwasher Heater Nut
106WD02X26579 GE Dishwasher Grounding Plate
112WD01X22507 GE Dishwasher Heater Support
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
463HIGH LOOP DRAIN HOSE
570WD22X20689 GE Dishwasher Impeller
571WD22X20688 GE Dishwasher Hub
576WD24X27659 GE Dishwasher Fill Funnel Hose
577WD12X22158 GE Dishwasher Fill Funnel Assembly
585WD12X21681 GE Dishwasher Main Conduit
586WD12X32039 GE Dishwasher Conduit Docking Port
588WD01X23982 GE Dishwasher Conduit Clip
654WD12X10433 GE Dishwasher Tub Roller and Stud Assembly
714WD02X10160 GE Screw
733WD01X10569 GE Dishwasher Door Cable
734WD16X21836 GE Dishwasher Pulley
735WD01X21837 GE Dishwasher Screw 10-32
742WD12X25060 GE Junction Box Bracket Assembly
743WD12X10412 GE Dishwasher Wiring Cover
744WATER VALVE AND HARNESS SE
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
749WD21X23559 GE Dishwasher Wire Harness
750WD21X24900C GE Control Board + Core
751HARNESS ASM AC
752WD21X23416 GE Dishwasher Direct Connect Harness Assembly
754WD01X21974 GE Dishwasher Dielectric Shield
755WD30X21714 GE Dishwasher Bottom Control Box
756WD27X10390 GE Dishwasher Control Box
777WD30X28658 GE Dishwasher Tub Insulation Blanket
790WD01X22786 GE Dishwasher Hose Clamp
791WD01X24246 GE Dishwasher Clamp
802WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
803WD21X10490 GE Dishwasher Standard Tub Side Door Latch
843GASKET TUB PLASTIC
888WD01X21740 GE Dishwasher Countertop Mounting Bracket
889CT SCREW ASM
920WD01X21975 GE Dishwasher Control Board Clip
