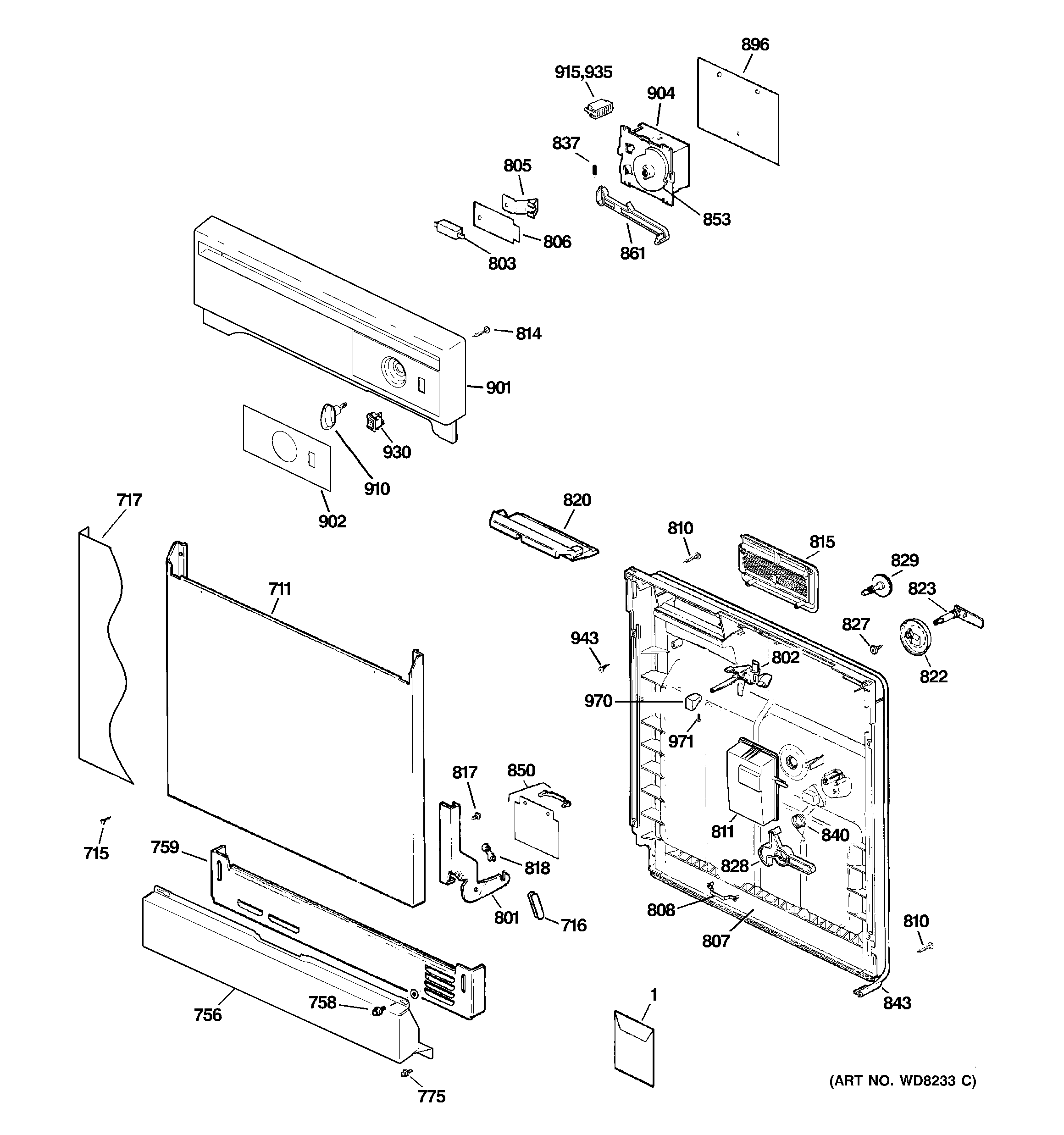

ADW1100N00BB ESCUTCHEON & DOOR ASSEMBLY

ADW1100N00BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

ADW1100N00BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30491-1
1GEN 31-30218
1GEN 49-55023
711WD31X10024 GE Dishwasher Black Front Panel
711WD31X10025 GE Dishwasher Front Panel
715WD2X433 GE Dishwasher Trim Screw
715WD2X432 GE Dishwasher Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717WD27X10254 GE Dishwasher Long Front Cover
717WD27X10255 GE Dishwasher Long Front Cover
756WD27X10223 GE Dishwasher Access Panel Finished Black
756WD27X10225 GE Dishwasher Finished Access Panel
758GEN WD02X10056
758WD02X10054 GE Dishwasher Screw 8-32
759WD27X10068 GE Dishwasher Toe Panel Kit
759WD27X10066 GE Dishwasher Toe Panel Kit
775GEN WD02X10127
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
775WD2X5166 GE Dishwasher Screw
801WD14X10030 GE Dishwasher Right Hand Arm Hinge
801WD14X10029 GE Dishwasher Left Hand Arm Hinge
802WD13X10003 GE Dishwasher Latch Assembly
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
810GEN WD02X0296
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
814GEN WD02X10104
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
817WD02X10141 GE Dishwasher Screw 10-32 TT Hex
818GEN WD12X10025
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850GEN WD12X0338
853GEN WD16X10010
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X11375
901GEN WD34X11324
901GEN WD34X11325
901GEN WD34X11374
902WD34X11361 GE Dishwasher Escutcheon Insert
902GEN WD34X11356
904WD21X33643 GE Dishwasher Timer
910WD9X349 GE Dishwasher Timer Knob
910WD9X353 GE Dishwasher Timer Knob
915WD01X10349 GE Dishwasher Housing Terminal
930SWITCH ROCKER
930SWITCH ROCKER
935GEN WD01X1434
943WZ5X219D GE Screw Package
970WD9X245 GE Dishwasher Latch Knob
970WD9X225 GE Dishwasher Latch Knob
971GEN WZ02X0045
