AE3213 Heater Duct – Electric Models Through Serial No. S6271975XG

AE3213 Heater Duct – Electric Models Through Serial No. S6271975XG

Written by

in

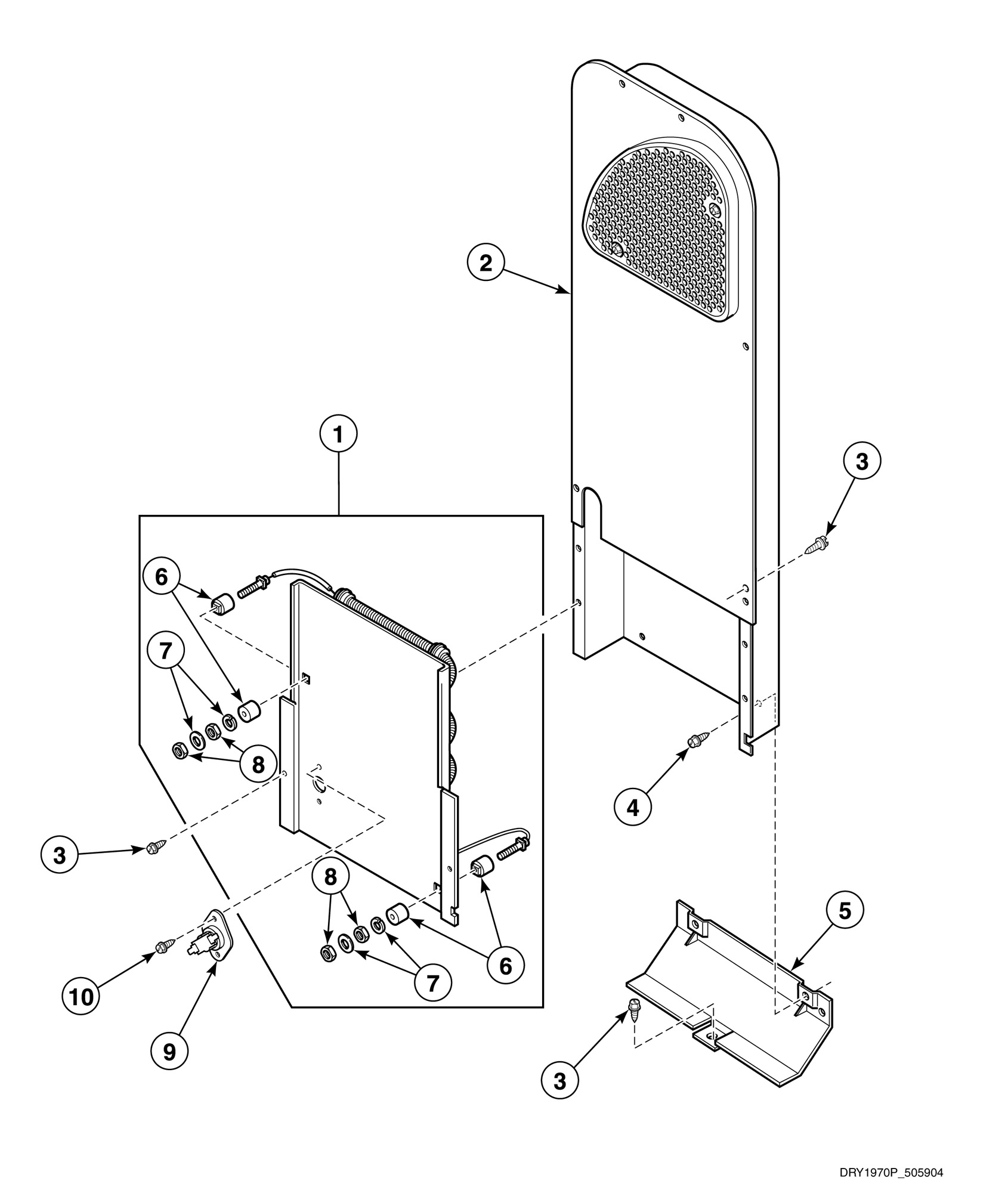

AE3213 Heater Duct – Electric Models Through Serial No. S6271975XG

Products

PositionProduct
1Heater Kit Assembly (Comment: 240 Volt, 5000 Watt, Red, Includes items 1, 7 and 8)
1Heater Kit Assembly (Comment: 208 Volt, 4750 Watt, White, Includes items 1, 7 and 8)
1Heater Kit Assembly (Comment: 240 Volt/50 Hertz, 4.8 kW, Includes items 1, 7 and 8)
1Heater Kit Assembly (Comment: 240 Volt/50 Hertz, 4.0 kW, Includes items 1, 7 and 8)
1Heater Kit Assembly (Comment: 240 Volt, 3.1 kW, Includes items 1, 7 and 8)
2Heater Duct and Screw Assembly
3Screw
4Screw
5Heat Duct Shield
6Wire Harness Assembly
7Washer
8Nut
9Limit Thermostat
10Screw
