AE3213 Loading Door, Front Panels and Access Door

AE3213 Loading Door, Front Panels and Access Door

Written by

in

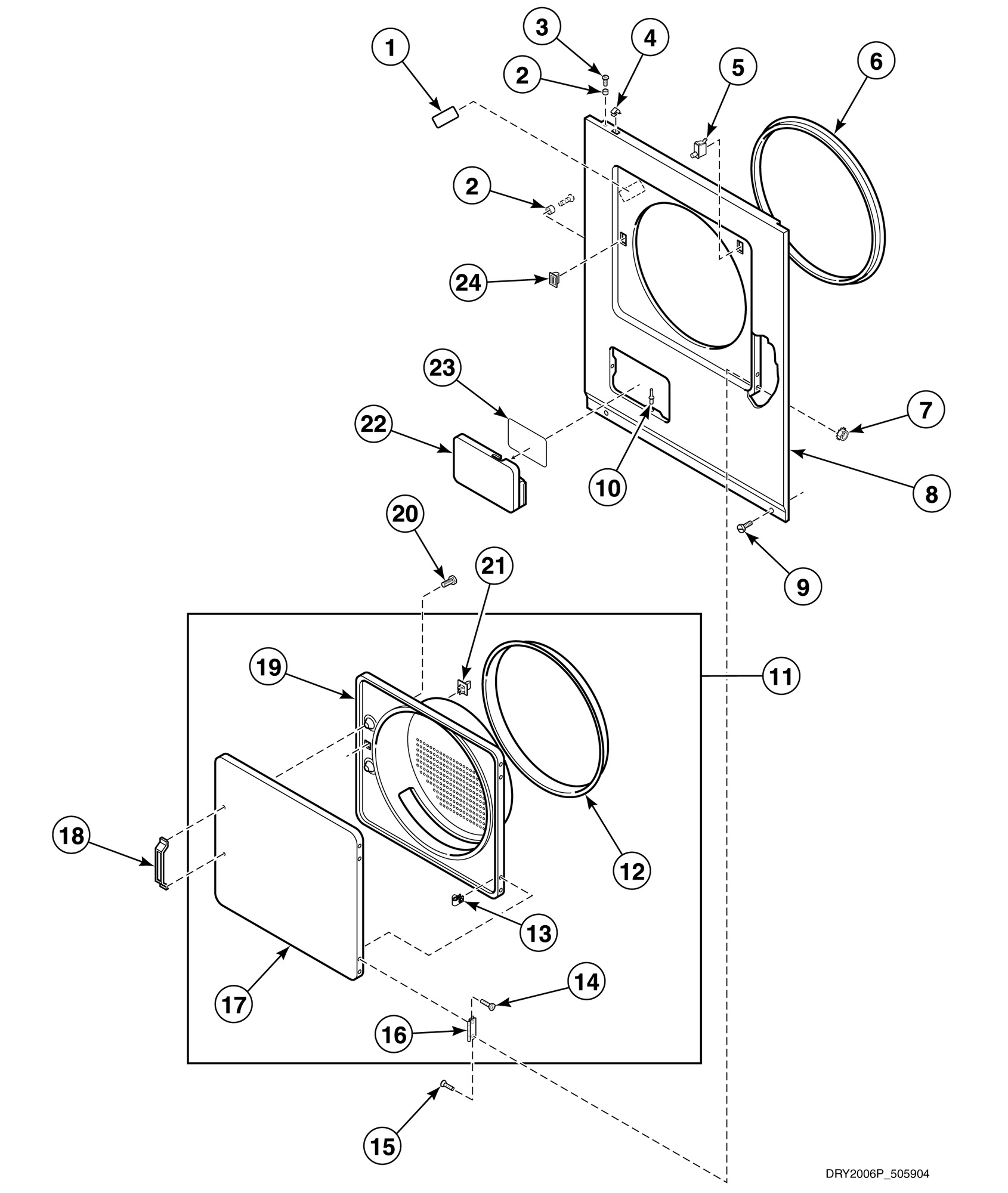

AE3213 Loading Door, Front Panels and Access Door

Products

PositionProduct
NAWasher (Comment: Used on front panel to fasten access door, Models starting Serial No. S6447808YH)
NAWire Harness Assembly
1Warning/Caution Label
2Panel Locator
3Screw
4Speed Clip
5Switch
6Front Panel Seal
7Nut
8Front Panel Assembly (Comment: White)
9Screw
10Support Barrel
11Door Assembly (Comment: Models starting Serial No. S6447808YH)
12Door Seal
13Nut
14Screw
15Screw
16Hinge
18Door Pull
20Screw
21Door Strike
22NOT ON YOUR MODEL
23Gas Clearance Label
24Door Catch Assembly
