AE3413 Heater Duct and Element Assembly

AE3413 Heater Duct and Element Assembly

Written by

in

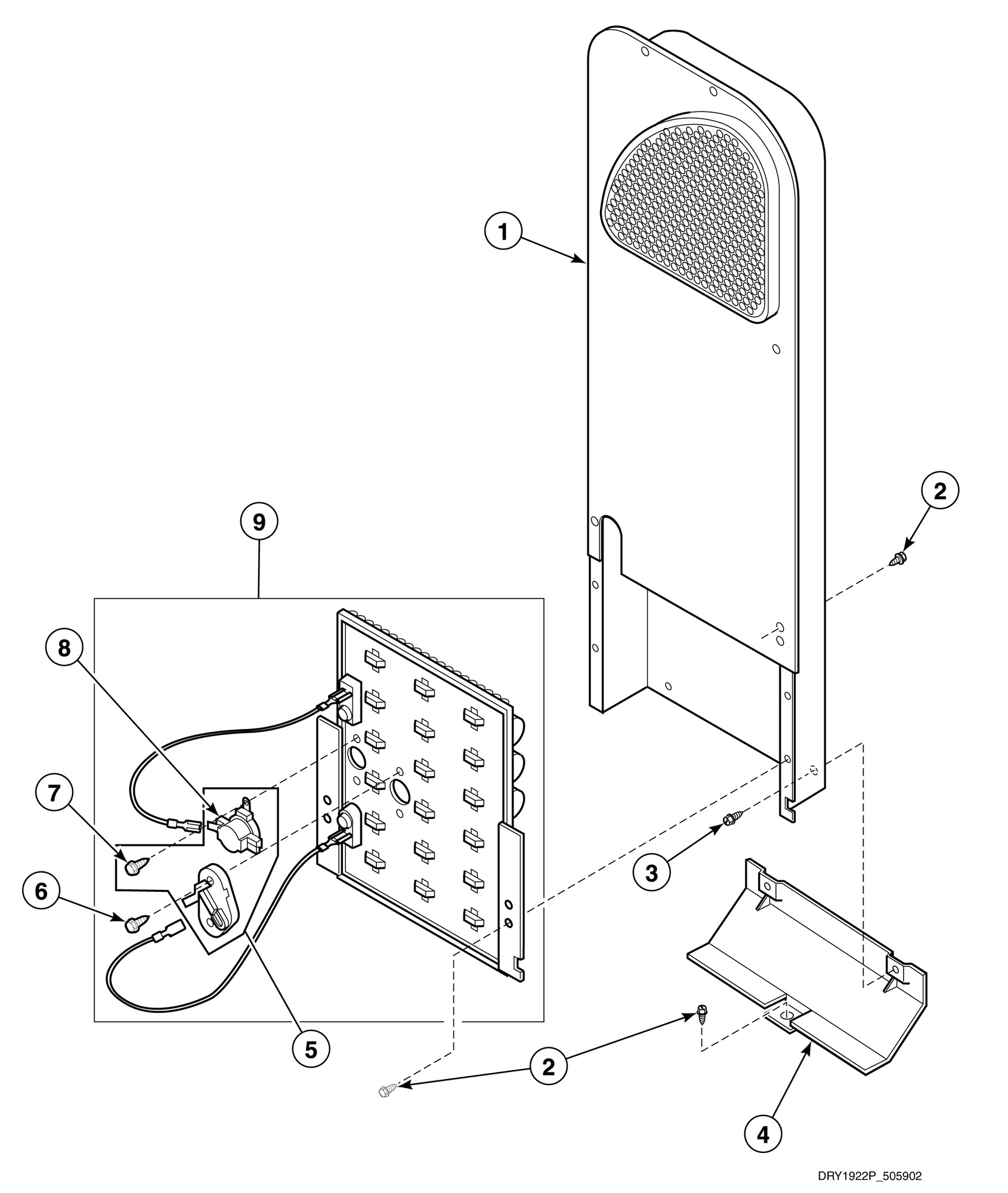

AE3413 Heater Duct and Element Assembly

Products

PositionProduct
1Heater Duct and Screw Assembly
2Screw
3Screw
4Heat Duct Shield
5Thermal Fuse Kit (Comment: Includes items 1 and 8)
6Screw
7Screw
8Limit Thermostat
9Heater Kit Assembly (Comment: 208 Volt, 4750 Watt, White, Includes items 1, 7 and 8)
9Heater Kit Assembly (Comment: 240 Volt, 5000 Watt, Red, Includes items 1, 7 and 8)
