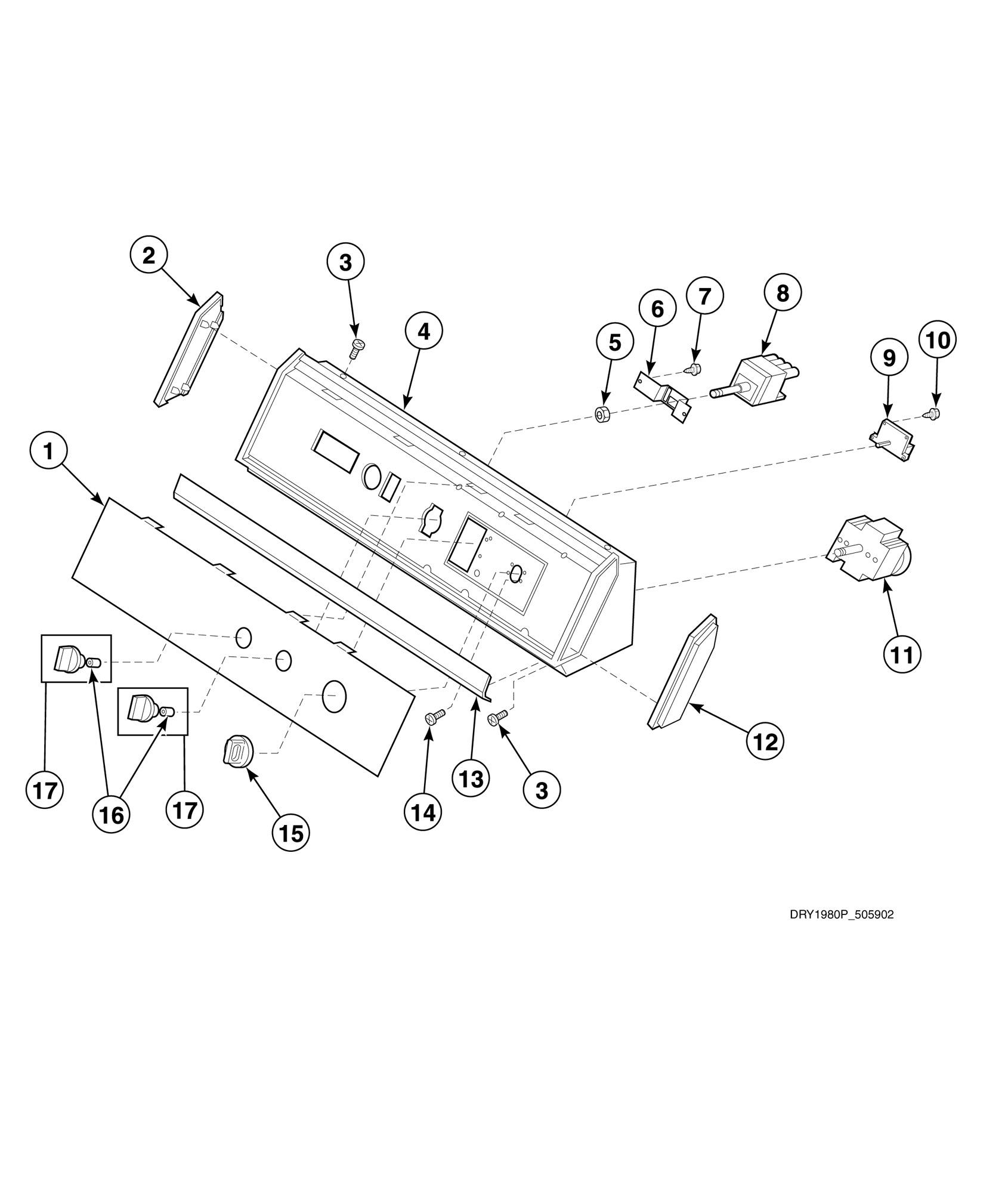

AE4413 Graphic Panel, Control Hood and Controls (Drawing 4 of 5)

Written by

Products

Position	Product
2	End Cap (Comment: Left)
3	Screw
5	Nut
7	Screw
8	Fabric Selector Switch (Comment: Models starting Serial No. S6271976XG)
9	Rotate-to-Start Switch
10	Screw
11	Timer
12	End Cap
13	NOT ON YOUR MODEL
14	Screw
15	Timer Knob Assembly
16	Wire Harness Assembly
17	Rotary Knob Assembly
