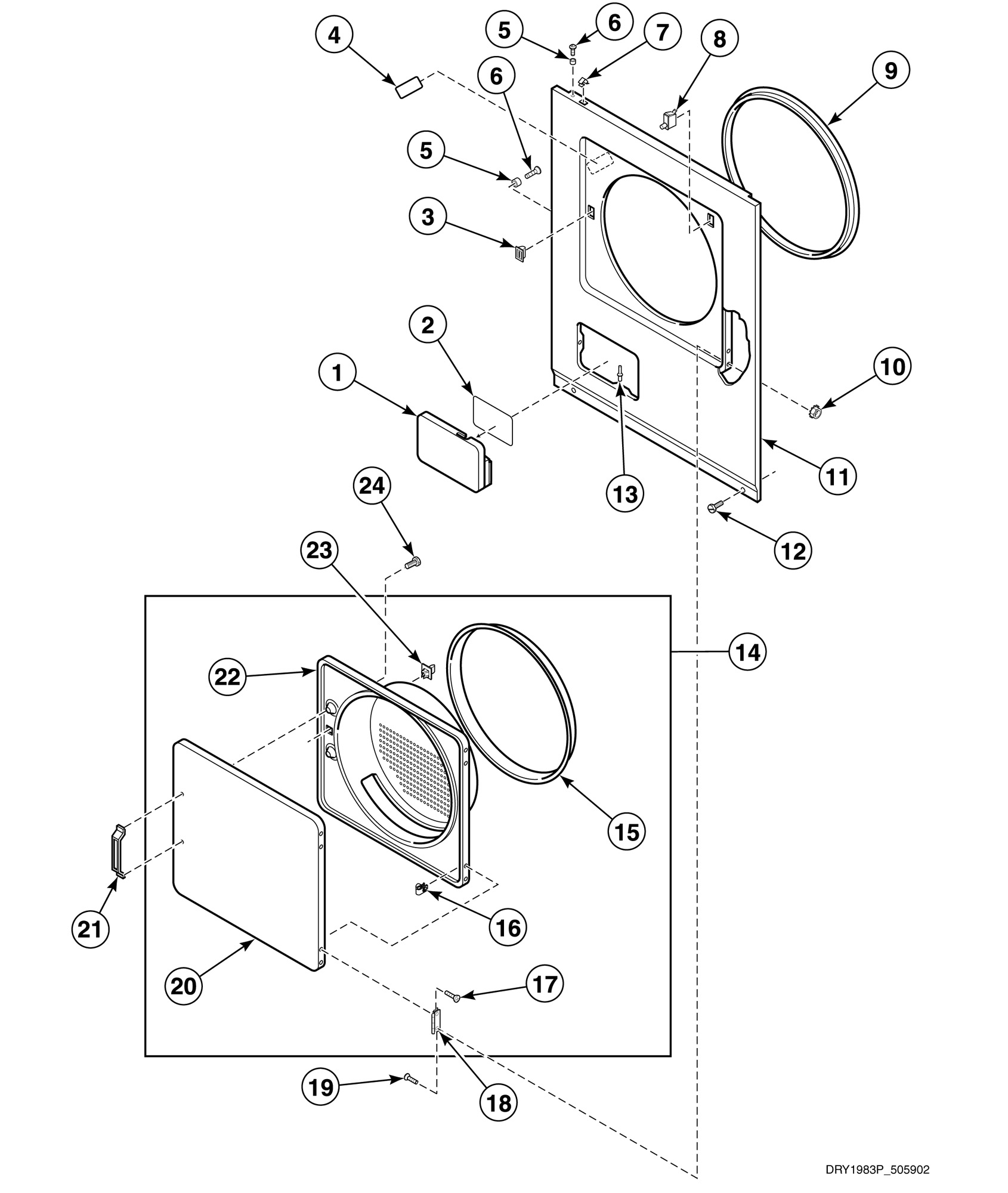

AE4413 Loading Door, Front Panel and Seals
Products
| Position | Product |
|---|---|
| 2 | Gas Clearance Label |
| 3 | Door Catch Assembly |
| 10 | Nut |
| 11 | Front Panel Assembly (Comment: White) |
| 12 | Screw |
| 13 | Support Barrel |
| 15 | Door Seal |
| 16 | Nut |
| 17 | Screw |
| 18 | Hinge |
| 19 | Screw |
| 21 | Door Pull |
| 22 | Wire Harness Assembly |
| 23 | Door Strike |
| 24 | Screw |
