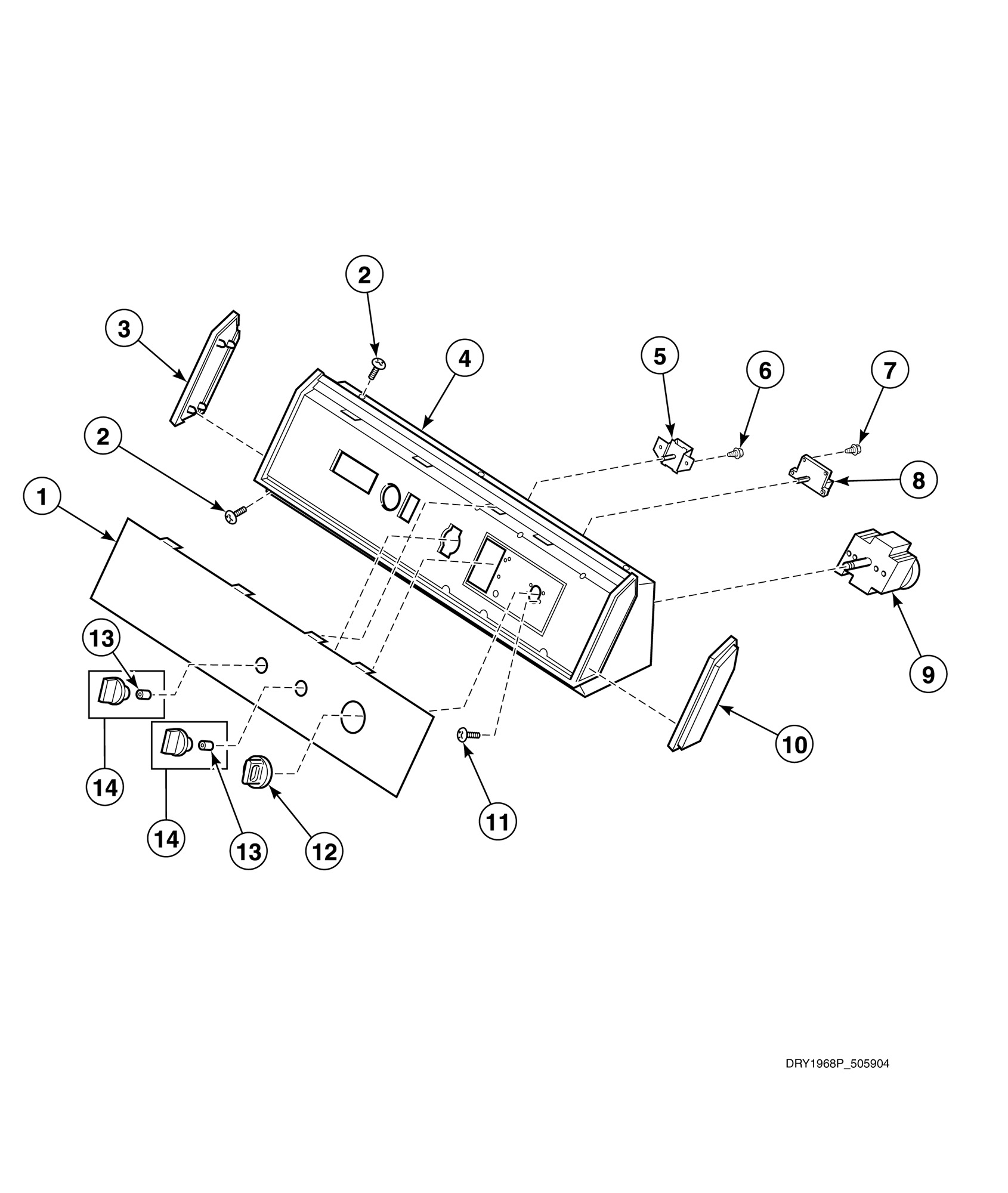

AE5113 Graphic Panel, Control Hood and Controls (Drawing 3 of 7)

AE5113 Graphic Panel, Control Hood and Controls (Drawing 3 of 7)

Written by

in

AE5113 Graphic Panel, Control Hood and Controls (Drawing 3 of 7)

Products

PositionProduct
2Screw
5Rotary Signal
6Screw
7Screw
8Rotate-to-Start Switch
9Timer (Comment: through Serial No. S6271975XG)
9Timer (Comment: starting Serial No. S6271976XG)
11Screw
12Timer Knob Assembly
13Wire Harness Assembly
14Rotary Knob Assembly
