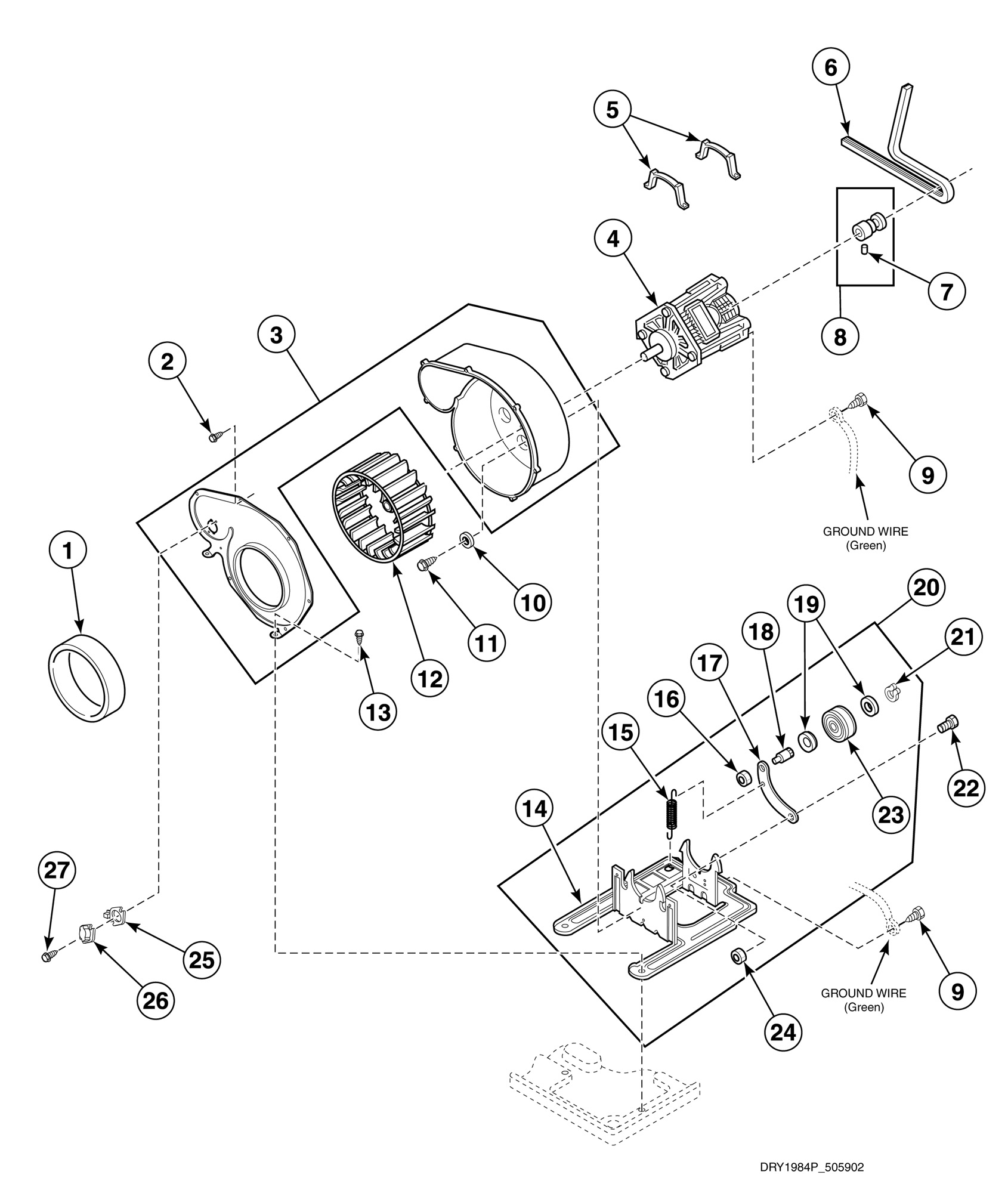

AE5413 Motor, Exhaust Fan and Belt

Products

Position	Product
NA	Wire Harness Assembly
NA	Anti-Seize Compound (Comment: Apply to motor shaft before installing blower fan assembly)
1	Seal
2	Screw
3	Blower Housing and Cover Kit
4	Motor (Comment: Includes switch)
5	Motor Mount Clamp
6	Cylinder Belt
7	Screw
9	Screw
10	Washer
11	Screw
12	Blower Fan Assembly
13	Screw
14	Motor Mount
15	Idler Spring
16	Nut
18	Shaft
19	Washer
20	Motor Mount and Idler Assembly
21	Retaining Ring
23	Idler Wheel and Bearing Assembly
24	Nut
25	Thermostat Heater (Comment: Use with 61372 Thermostat)
26	Thermostat (Comment: starting Serial No. S6271976XG)
27	Screw
