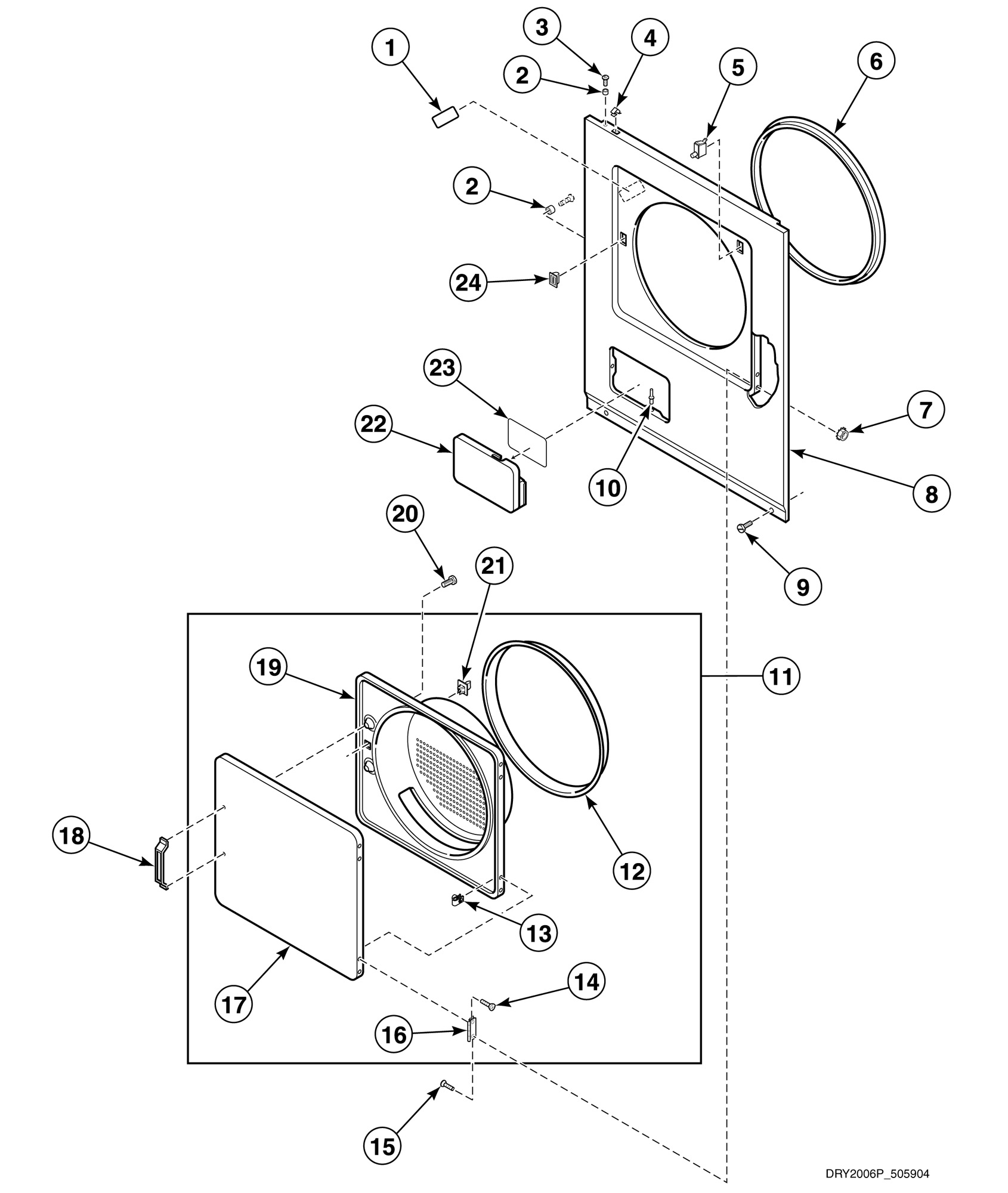

AE7133 Loading Door, Front Panels and Access Door

Products

Position	Product
NA	Washer (Comment: Used on front panel to fasten access door, Models starting Serial No. S6447808YH)
NA	Wire Harness Assembly
1	Warning/Caution Label
2	Panel Locator
3	Screw
4	Speed Clip
5	Switch
6	Front Panel Seal
7	Nut
8	Front Panel Assembly (Comment: White)
9	Screw
10	Support Barrel
11	Door Assembly (Comment: Models starting Serial No. S6447808YH)
12	Door Seal
13	Nut
14	Screw
15	Screw
16	Hinge
18	Door Pull
20	Screw
21	Door Strike
22	NOT ON YOUR MODEL
23	Gas Clearance Label
24	Door Catch Assembly
