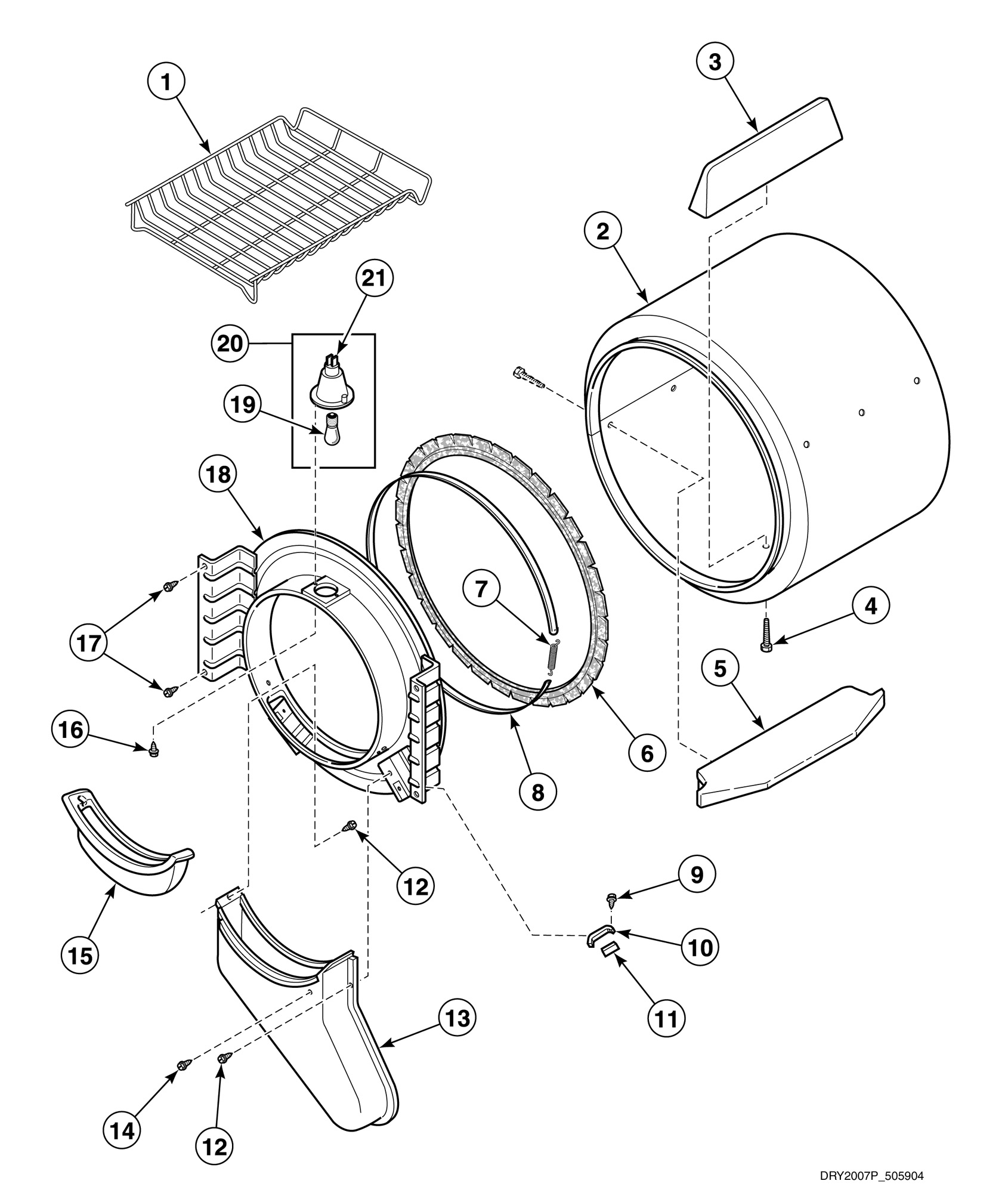

AE7233 Front Bulkhead, Air Duct, Felt Seal and Cylinder

Products

PositionProduct
2Cylinder Assembly (Comment: Includes baffles)
3Cylinder Baffle (Comment: Short, 2 required)
4Screw
5Cylinder Baffle (Comment: Extended, 1 required)
6Seal Assembly
7Spring
8Seal Strap
9Screw
10Cylinder Glide
11Thin Pad
12Screw
13Air Duct Assembly
15Lint Filter
16Screw
17Screw
18Wire Harness Assembly
21NOT ON YOUR MODEL
