AE7233 Power Cord and Terminals

AE7233 Power Cord and Terminals

Written by

in

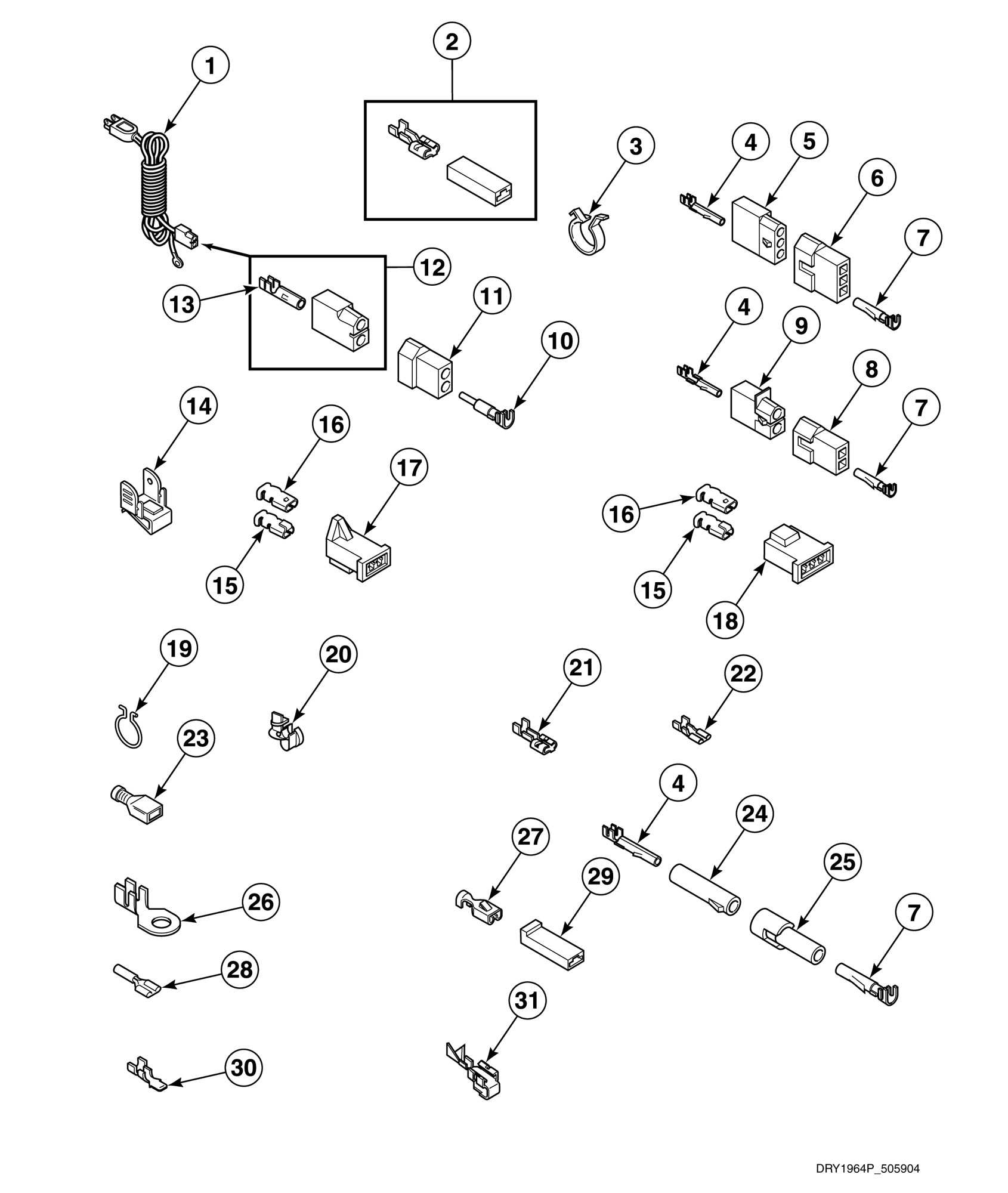

AE7233 Power Cord and Terminals

Products

PositionProduct
1NOT ON YOUR MODEL
2Ultra Pod Terminal (Comment: 1/4 inch, (1) 12 gauge wire, (2) 18 gauge wires)
3Wire Clip
4Female Pin Terminal
53 Circuit Receptacle
6Plug
7Male Pin Terminal
82 Circuit Plug
92 Circuit Receptacle
10Male Pin Terminal
112 Circuit Plug
122 Circuit Receptacle
13Female Pin Terminal
14Grounding Clip
15Female Piggyback Terminal
16Female Spade Terminal
172 Circuit Connector
183 Circuit Connector
19Wire Clip
20Strain Relief
21Female Spade Terminal (Comment: 1/4 inch, (2) 18 gauge wires)
21Female Spade Terminal (Comment: 1/4 inch, (1) 12 gauge wire)
21Female Spade Terminal (Comment: 1/4 inch, (1) 18 gauge wire)
22Female Spade Terminal (Comment: 3/16 inch, (1) 18 gauge wire, .020 tab)
22Female Spade Terminal (Comment: 3/16 inch, Thermostat wire, .032 tab)
22Female Spade Terminal (Comment: 3/16 inch, (2) 18 gauge wires, .020 tab)
23Insulated Female Terminal (Comment: 3/16 inch)
23Ultra Pod Terminal (Comment: 1/4 inch)
24Molex Receptacle
251 Circuit Plug
26Ring Terminal (Comment: No. 10, (1) 18 gauge wire)
26Ring Terminal (Comment: No. 10, (2) 18 gauge wire
27GEN 00321
27GEN 00115
28GEN 00215
28Wire Harness Assembly
29GEN 90789
30GEN 00139
31GEN 00114
