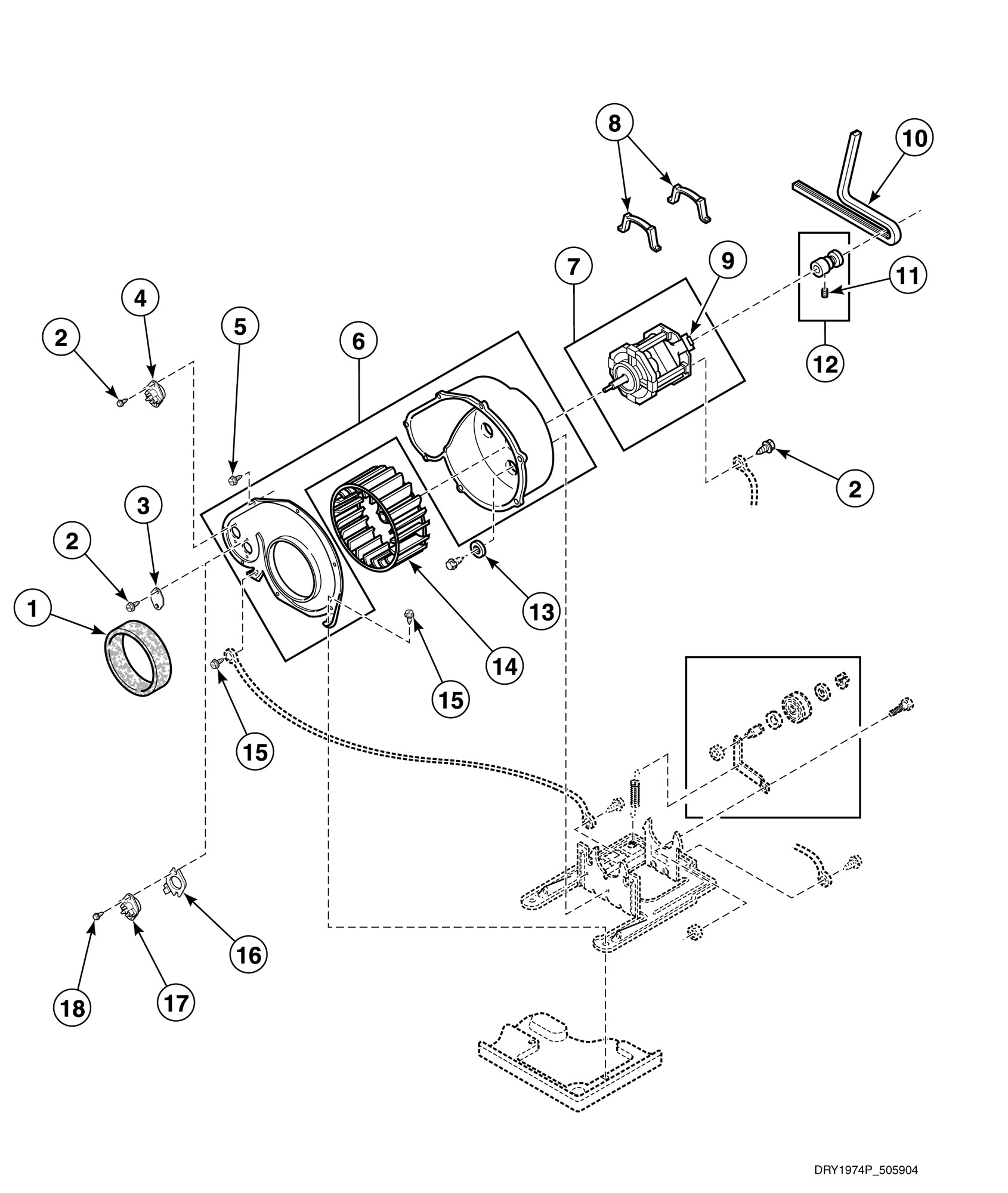

AE9133 Motor, Exhaust Fan and Belt (Drawing 1 of 2)

AE9133 Motor, Exhaust Fan and Belt (Drawing 1 of 2)

Written by

in

AE9133 Motor, Exhaust Fan and Belt (Drawing 1 of 2)

Products

PositionProduct
NAAnti-Seize Compound (Comment: Apply to motor shaft before installing blower fan assembly)
1Seal
3Thermostat Opening Cover
4Thermostat
5Screw
6Blower Housing and Cover Kit
7Motor (Comment: Includes switch)
8Motor Mount Clamp
10Cylinder Belt
11Screw
12Wire Harness Assembly
13Washer
14Blower Fan Assembly
15Screw
16Thermostat Heater (Comment: Use with 61372 Thermostat)
17Thermistor Assembly (Comment: Black)
18Screw
18Screw
