AE9233 Heater Duct – Electric Models Starting Serial No. S6271976XG

AE9233 Heater Duct – Electric Models Starting Serial No. S6271976XG

Written by

in

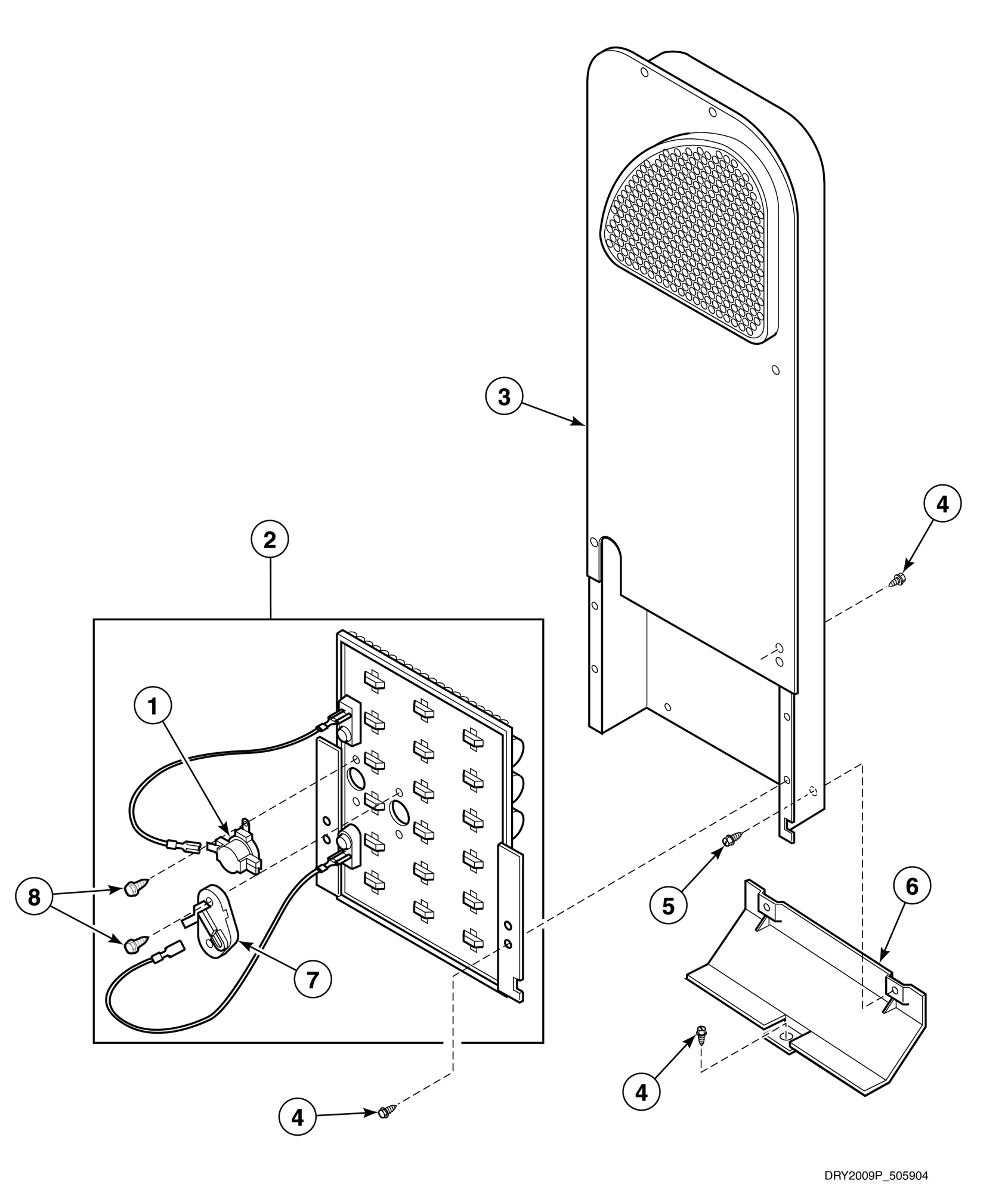

AE9233 Heater Duct – Electric Models Starting Serial No. S6271976XG

Products

PositionProduct
1Limit Thermostat
2Heater Kit Assembly (Comment: 240 Volt, 5000 Watt, Red, Includes items 1, 7 and 8)
2Heater Kit Assembly (Comment: 208 Volt, 4750 Watt, White, Includes items 1, 7 and 8)
2Heater Kit Assembly (Comment: 240 Volt/50 Hertz, 4.8 kW, Includes items 1, 7 and 8)
2Heater Kit Assembly (Comment: 240 Volt/50 Hertz, 4.0 kW, Includes items 1, 7 and 8)
2Heater Kit Assembly (Comment: 240 Volt, 3.1 kW, Includes items 1, 7 and 8)
3Heater Duct and Screw Assembly
4Screw
5Screw
6Heat Duct Shield
7Thermal Fuse Kit (Comment: Includes items 1 and 8)
8Screw
