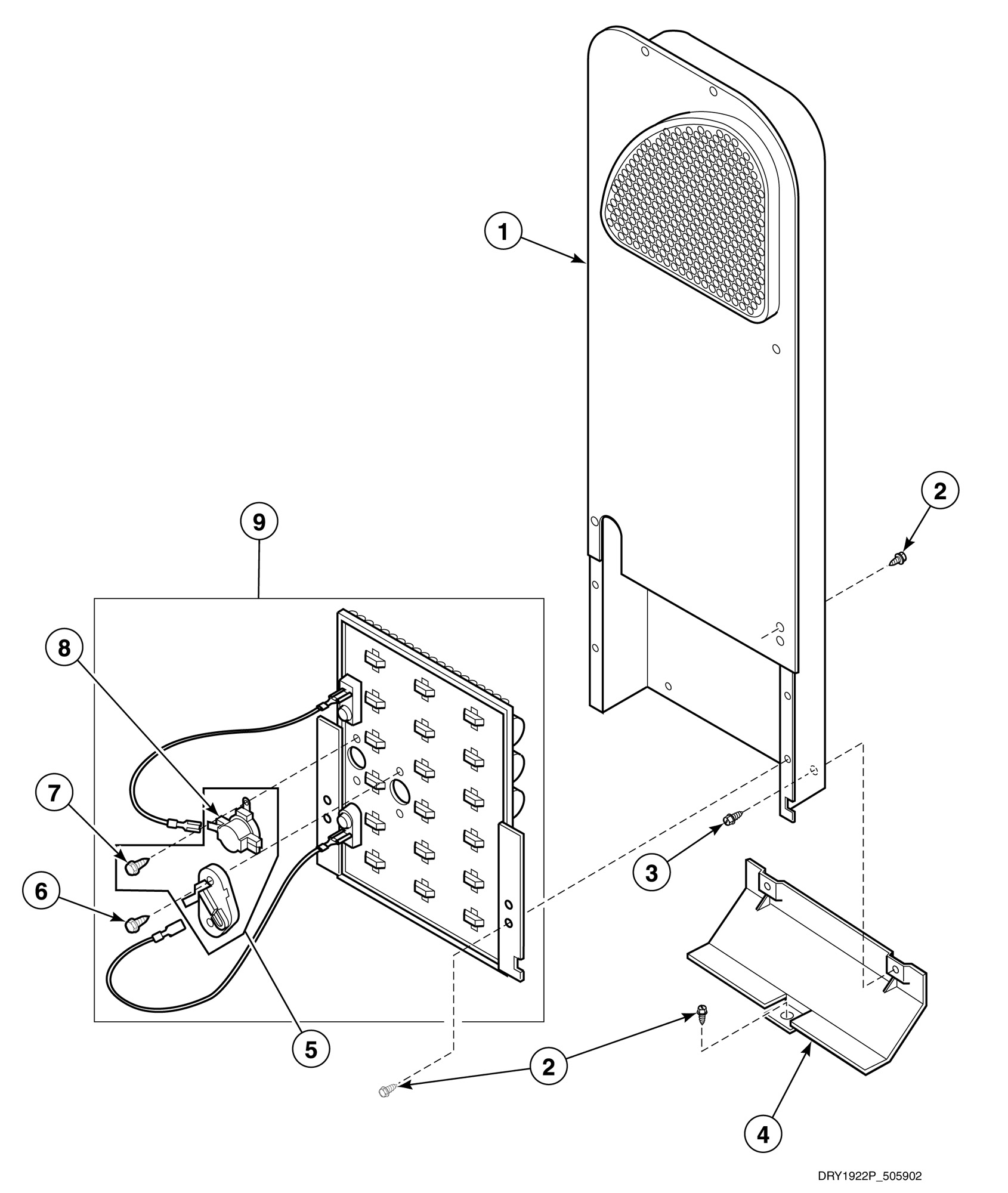

AE9433 Heater Duct and Element Assembly

Products

PositionProduct
1Heater Duct and Screw Assembly
2Screw
3Screw
4Heat Duct Shield
5Thermal Fuse Kit (Comment: Includes items 1 and 8)
6Screw
7Screw
8Limit Thermostat
9Heater Kit Assembly (Comment: 208 Volt, 4750 Watt, White, Includes items 1, 7 and 8)
9Heater Kit Assembly (Comment: 240 Volt, 5000 Watt, Red, Includes items 1, 7 and 8)
