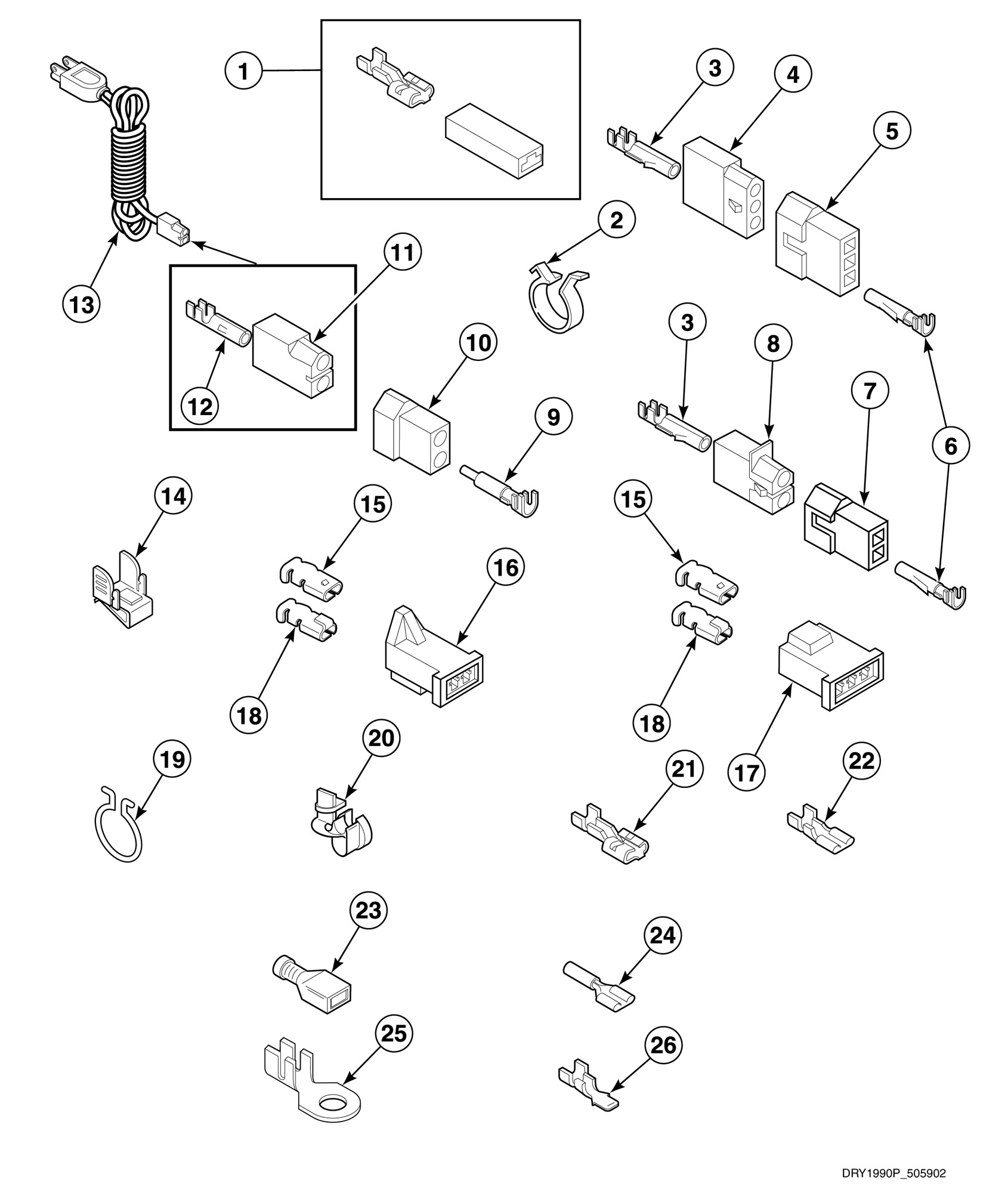

AE9433 Lead-In Cord and Terminals

Products

Position	Product
1	Ultra Pod Terminal (Comment: 1/4 inch, (1) 12 gauge wire, (2) 18 gauge wires)
2	Wire Clip
3	Female Pin Terminal
4	3 Circuit Receptacle
5	Plug
6	Male Pin Terminal
7	2 Circuit Plug
8	2 Circuit Receptacle
9	Male Pin Terminal
10	2 Circuit Plug
11	2 Circuit Receptacle
12	Female Pin Terminal
13	NOT ON YOUR MODEL
14	Grounding Clip
15	Female Spade Terminal
16	2 Circuit Connector
17	3 Circuit Connector
18	Female Piggyback Terminal
19	Wire Clip
20	Strain Relief
21	Female Spade Terminal (Comment: 1/4 inch, (2) 18 gauge wires)
21	Female Spade Terminal (Comment: 1/4 inch, (1) 12 gauge wire)
21	Female Spade Terminal (Comment: 1/4 inch, (1) 18 gauge wire)
22	Female Spade Terminal (Comment: 3/16 inch, (2) 18 gauge wires, .020 tab)
22	Female Spade Terminal (Comment: 3/16 inch, Thermostat wire, .032 tab)
22	Female Spade Terminal (Comment: 3/16 inch, (1) 18 gauge wire, .020 tab)
23	Insulated Female Terminal (Comment: 3/16 inch)
23	Ultra Pod Terminal (Comment: 1/4 inch)
24	Wire Harness Assembly
24	GEN 00215
25	Ring Terminal (Comment: No. 10, (1) 18 gauge wire)
25	Ring Terminal (Comment: No. 10, (2) 18 gauge wire
26	GEN 00139
