AEC12AXH1 ROOM AIR CONDITIONER

AEC12AXH1 ROOM AIR CONDITIONER

Written by

in

AEC12AXH1 ROOM AIR CONDITIONER

Products

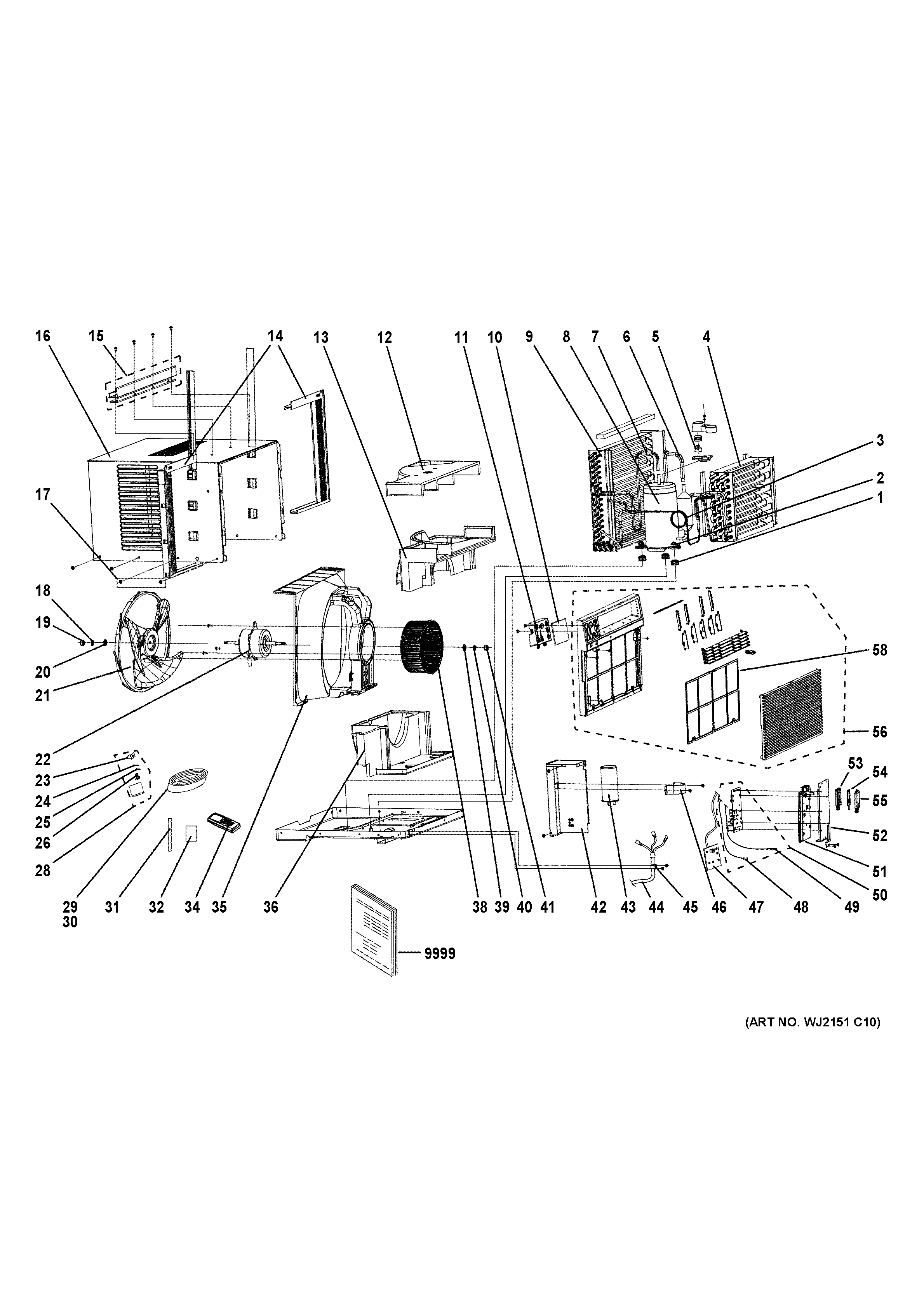

PositionProduct
1WJ01X10355 GE Rubber Grommet
2NUT
3WJ53X23450 GE Capillary Subassembly
4WJ87X23448 GE Evaporator Assembly
5OVERLOAD PROTECTOR
6WJ53X21891 GE Suction Tube
7DISCHARGE TUBE
8WJ98X21823 GE Compressor and Fittings
9WJ88X21223 GE Air Conditioner Condenser Assembly
10MEMBRANE
11WJ76X23453 GE LCD Cover
12WJ76X21806 GE Indoor Fan Shroud Upper
13WJ76X21808 GE Indoor Fan Shroud Center
14WJ86X23446 GE Curtain
15WJ65X23449 GE Air Conditioner Top Rail
16WJ90X23447 GE Cabinet
17WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC
18WJ01X10313 GE Washer Air Conditioner
19WJ01X10314 GE Air Conditioner Nut with Washer
20WJ01X10312 GE Air Conditioner Washer
21WJ73X21228 GE Outdoor Fan
22WJ94X21809 GE Air Conditioner Fan Motor
23WJ01X10349 GE Room Air Conditioner Installation Hardware
24WJ01X10351 GE Screw
25WJ01X21463 GE Sub-Assembly Screw
26WJ43X20227 GE Installation Clamp
28WJ01X21231 GE Room Air Conditnr Installation
29WJ01X10425 GE Gasket Seal
30WJ01X10426 GE Gasket Seal
31WJ43X21200 GE Air Conditioner Accordian Panel Seal
32WJ01X23451 GE Sealing Sponge
34WJ26X20522 GE Air Conditioner Remote Controller
35WJ76X21810 GE Outdoor Fan Shroud
36WJ76X21807 GE Indoor Lower Fan Shroud
38CENTRIFUGAL FAN
39WJ01X10347 GE Washer (6mm)
40WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
41WJ01X10329 GE Air Conditioner Nut
42WJ05X20228 GE Electric Box
43WJ20X21825 GE Capacitor
44WJ35X10169 GE Power Cord
45CABLE CLAMP
46WJ03X20231 GE Capacitor Clamp
47WJ26X20184 GE Air Conditioner Room Display
48WJ62X25554 GE Sensor Tube
49WJ27X10122 GE Air Conditioner Thermostat
50WJ26X23454 GE Main Board
52WJ65X21301 GE Main Board Support
53WIFI BOX
54WIFI MODULE
55WIFI BOX COVER
56WJ71X23445 GE Air Conditioner Front Panel Assembly
58WJ85X23452 GE Filter
9999PM MINI-MANUAL
9999PM USE & CARE
