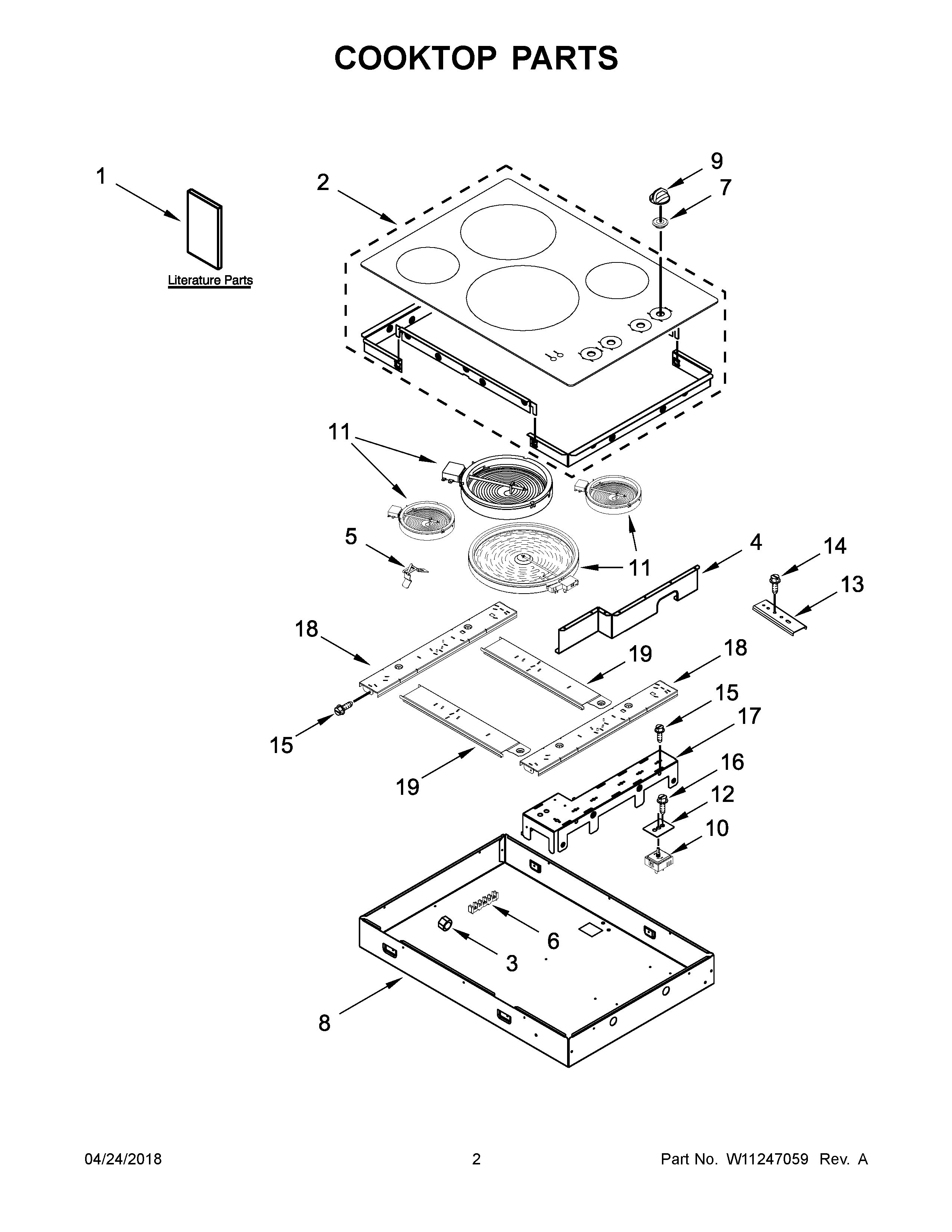

AEC6540KFB01 02 – COOKTOP PARTS

Products

Position	Product
NI	SCREW (FOR MAIN HARNESS)
NI	MAY W11190473
NI	MAY W11190472
NI	SEAL, LIMITER
NI	MAY 7111P020-60
NI	MAY 8008P068-60
NI	MAY 8286642
NI	MAY W10316661
NI	MAY W11190476
NI	WP7103P027-60 Whirlpool Nut
NI	LINER (NOT A SERVICEABLE PART)
NI	SCREW, GROUNDING
1A	MAY W10373101
1	INSTRUCTIONS, INSTALLATION
1B	MAY W10895306
1C	MAY W10291395
2	MAY W10883602
3	NUT
4	MAY W10311796
5	SPRING, ELEMENT
6	MAY 7401P038-60
7	GROMMET (BLACK)
9	KNOB, CONTROL (BLACK)
10	SWITCH, INFINITE (LEFT FRONT)
10B	SWITCH, INFINITE (RIGHT FRONT)
10C	SWITCH, INFINITE (RIGHT REAR)
10A	SWITCH, INFINITE (LEFT REAR)
11A	ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
11B	ELEMENT (2500W) (RIGHT FRONT)
11	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
12	MAY 3183956
13	MAY 4455917
14	MAY 3400093
15	MAY 7101P426- 60
16	SCREW
17	MAY W10484349
18	MAY W10457917
19	MAY W10311790
