AED06LNL1 ROOM AIR CONDITIONER

Products

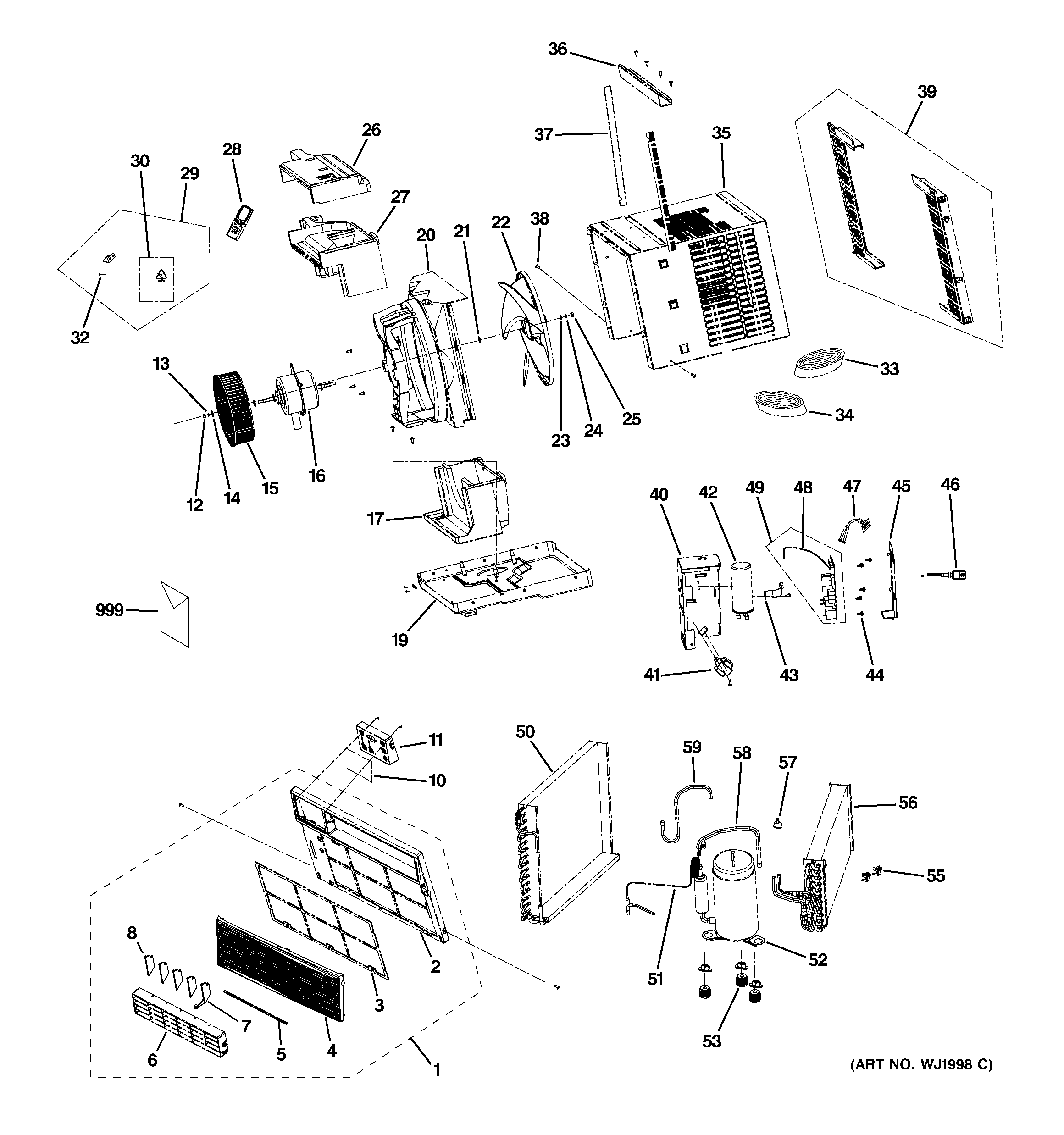

Position	Product
1	GEN WJ71X10655
2	FRONT CASE
3	WJ71X10657 GE Air Filter
4	GEN WJ82X10059
5	LINK, LOUVER VERTICAL
6	WJ14X10082 GE Air Guide Frame
7	WJ71X10573 GE Air Conditioner Swing Louver
8	GEN WJ71X10574
10	GEN WJ07X10247
11	GEN WJ26X10324
12	WJ01X10344 GE Nut (M5)
13	WJ03X10074 GE Washer Spring (5 mm Diameter)
14	GEN WJ01X10345
15	FAN, CENTRIFUGAL
16	GEN WJ95X10025
17	GEN WJ76X10289
19	GEN WJ89X10063
19	WJ89X10066 GE Base Assembly
20	WJ01X10346 GE Motor Support
21	WJ43X10072 GE Gasket (8 mm Diameter)
22	FAN, AXIAL FLOW
23	WJ01X10347 GE Washer (6mm)
24	WJ01X10313 GE Washer Air Conditioner
25	WJ01X10314 GE Air Conditioner Nut with Washer
26	GEN WJ76X10290
27	GEN WJ76X10291
28	WJ26X20522 GE Air Conditioner Remote Controller
29	WJ01X10349 GE Room Air Conditioner Installation Hardware
30	WJ01X10350 GE Plastic Bag
32	WJ01X10351 GE Screw
33	WJ43X10073 GE Air Conditioner Gasket Seal
34	WJ43X10074 GE Seal Gasket
35	WJ90X10123 GE Cabinet Assembly
36	WJ82X20256 GE Top Rail
37	WJ66X10084 GE Connection Bar to Cabinet
38	SELF-TAPPING SCREW
39	WJ01X10353 GE Air Conditioner Room Side CU
40	WJ26X10323 GE Electric Box
41	GEN WJ27X10073
42	WJ20X10164 GE Compressor Capacitor
42	GEN WJ20X10167
43	WJ02X10032 GE Clamp Capacitor
44	WJ01X10354 GE Support PCB
45	WJ26X10322 GE Electric Box
46	GEN WJ35X10155
47	DISPLAY BOARD
48	WJ27X10122 GE Air Conditioner Thermostat
49	BOARD, MAIN
50	GEN WJ88X10218
51	GEN WJ53X10232
52	GEN WJ98X10298
52	GEN WJ98X10271
53	GEN WJ01X10385
53	WJ01X10355 GE Rubber Grommet
55	WJ03X10067 GE Sensor Holder
56	GEN WJ87X10262
57	GEN WJ23X10132
57	GEN WJ23X10154
58	GEN WJ62X10009
59	WJ62X10008 GE Discharge Tube
59	GEN WJ62X10018
