AED10AVL1 ROOM AIR CONDITIONER

AED10AVL1 ROOM AIR CONDITIONER

Written by

in

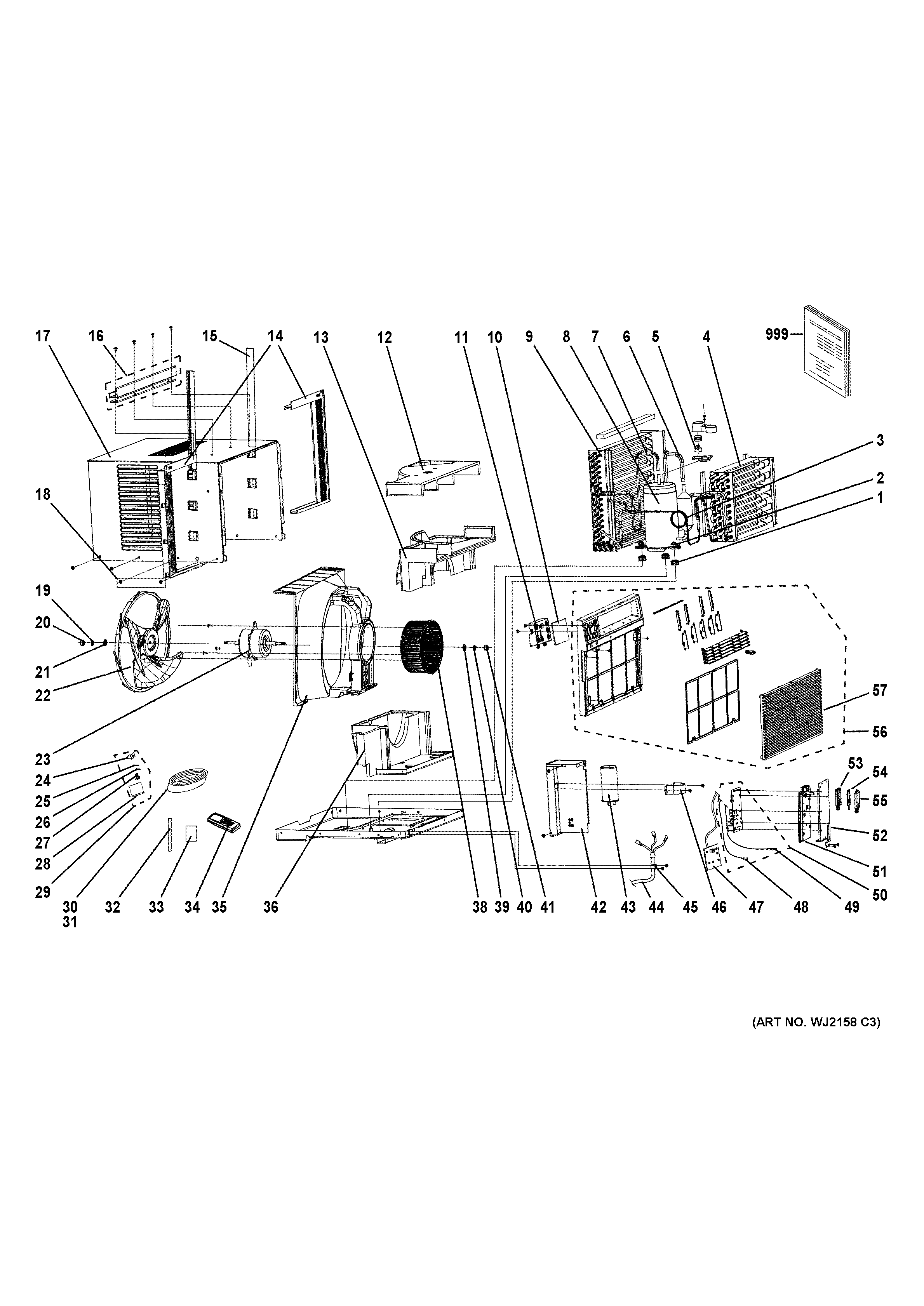

AED10AVL1 ROOM AIR CONDITIONER

Products

PositionProduct
1WJ01X10435 GE Rubber Grommet
2NUT
3WJ53X21283 GE Capillary Tube Assembly
4WJ87X21280 GE Evaporator Assembly
5OVERLOAD PROTECTOR
6WJ53X21281 GE Suction Tube
7DISCHARGE TUBE
8COMPRESSOR AND FITTINGS
9WJ88X21223 GE Air Conditioner Condenser Assembly
10OVERLAY
11WJ05X20235 GE LCD Cover
12WJ76X21222 GE Indoor Fan Shroud Upper
13WJ76X21227 GE Indoor Fan Shroud Center
14WJ86X21220 GE Air Conditioner Curtain Assembly
15SIDE PANEL RAIL
16WJ65X21224 GE Top Rail
17CABINET ASSY
18WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC
19WJ01X10313 GE Washer Air Conditioner
20WJ01X10314 GE Air Conditioner Nut with Washer
21WJ01X10312 GE Air Conditioner Washer
22WJ73X21228 GE Outdoor Fan
23WJ94X20527 GE Air Conditioner Room Fan Motor
24WJ01X10349 GE Room Air Conditioner Installation Hardware
25WJ01X10351 GE Screw
26WJ01X21463 GE Sub-Assembly Screw
27WJ43X20227 GE Installation Clamp
28SCREW BAG
29WJ01X21231 GE Room Air Conditnr Installation
30WJ01X10425 GE Gasket Seal
31WJ01X10426 GE Gasket Seal
32WJ43X21200 GE Air Conditioner Accordian Panel Seal
33WJ43X21888 GE Curtain Seal
34WJ26X20522 GE Air Conditioner Remote Controller
35WJ76X21234 GE Outdoor Fan Shroud
36WJ76X21213 GE Indoor Fan Shroud Lower
38WJ94X21214 GE Centrifugal Fan
39WJ01X10347 GE Washer (6mm)
40WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
41WJ01X10329 GE Air Conditioner Nut
42WJ05X20228 GE Electric Box
43WJ20X20220 GE Capacitor
44WJ35X10169 GE Power Cord
45WJ03X20292 GE Cable Clamp
46WJ03X10089 GE Clamp Capacitor
47WJ26X20184 GE Air Conditioner Room Display
48WJ62X25554 GE Sensor Tube
49WJ27X10122 GE Air Conditioner Thermostat
50WJ26X21282 GE Main Board Assembly
51WJ65X21301 GE Main Board Support
52ELECTRIC BOX COVER
53WIFI BOX
54WIFI MODULE
55WIFI BOX COVER
56WJ71X21219 GE Front Panel Assembly
57WJ85X21215 GE Air Filter Replacement
999PM MINI-MANUAL
999PM OWNERS MANUAL
