AED18DNH1 ROOM AIR CONDITIONER

AED18DNH1 ROOM AIR CONDITIONER

Written by

in

AED18DNH1 ROOM AIR CONDITIONER

Products

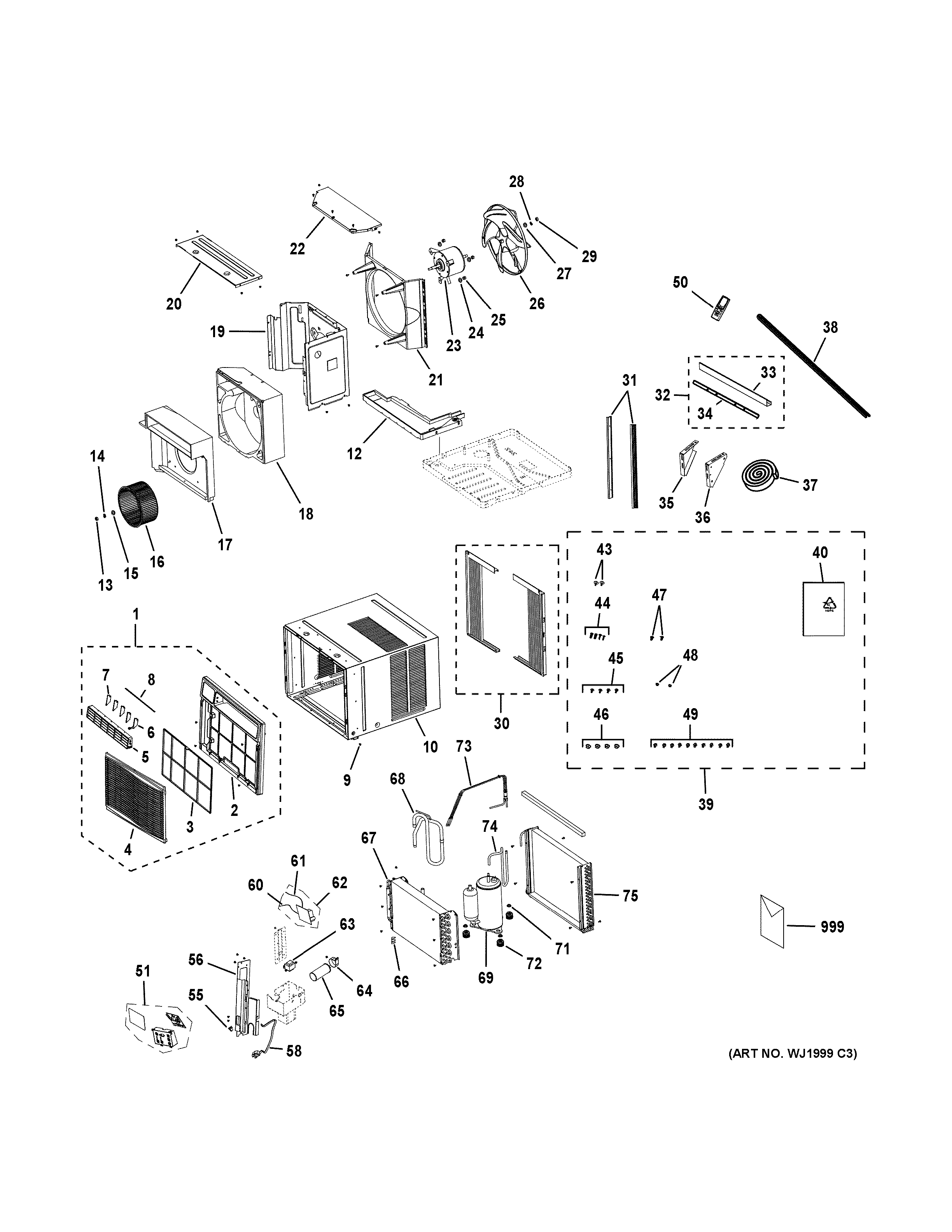

PositionProduct
1FRONT PANEL ASM
2GEN WJ71X10725
3WJ71X10668 GE Air Conditioner Filter Assembly
4AIR INTAKE PANEL
5GEN WJ14X10086
6WJ71X10573 GE Air Conditioner Swing Louver
7GEN WJ71X10574
8LINK VERTICAL LOUVER
9SELF-TAPPING SCREW
10WJ90X10126 GE Cabinet Assembly
12WJ05X10054 GE Air Conditioner Foam Water Tray
13WJ01X10265 GE Washer Nut
14WJ01X10266 GE Washer Assembly
15WJ43X10075 GE Gasket (Diameter 10mm)
16WJ73X10204 GE Centrifugal Fan
17WJ76X10307 GE Air Outlet Foam
18WJ76X10308 GE Air Conditioner Propeller Housing
19MOTOR SUPPORTING
20TOP COVER
21WJ79X10216 GE Condenser Cover
22WJ79X10217 GE Top Rear Cover
23FAN MOTOR
24WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
25WJ01X10329 GE Air Conditioner Nut
26WJ73X10190 GE Air Conditioner Axial Flow Fan
27WJ43X10076 GE Gasket Diameter 8mm
28WJ43X10077 GE Gasket (Diameter 8mm)
29WJ01X10374 GE Levo Nut (M8)
30WJ69X10018 GE Air Conditioner Curtain Assembly
31WJ68X10065 GE Cabinet Support
32WJ14X10087 GE Air Conditioner Top Guide Assembly
33WJ65X21244 GE Air Conditioner Top Guide
34WJ43X10078 GE Top Rail Gasket
35WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
36WJ67X10003 GE Right Side Case Mount Bracket
37WJ43X10079 GE Window Top Foam Gasket
38WJ43X10080 GE Window Seal Sash
39WJ01X10376 GE Room Air Conditnr Installation
40WJ01X10350 GE Plastic Bag
43BOLT M6X19
44WJ01X10351 GE Screw
45BOLT M5X13
46NUT M5X5
47SCREW
48NUT M6X6
49SCREW M4.8X8
50WJ26X20522 GE Air Conditioner Remote Controller
51PCB BOX SUB-ASM
55CABLE CLAMP
56ELEC BOX SUPPORTING
58WJ35X10165 GE Air Conditioner Power Cord
60WJ27X10122 GE Air Conditioner Thermostat
61WJ27X10135 GE Sensor Tube
62MAIN BOARD
63TRANSFORMER
64WJ02X10034 GE Capacitor Clamp
65CAPACITOR
66WJ02X10036 GE Sensor Support
67EVAPORATOR ASM
68WJ57X10032 GE Suction Pipe
69COMPRESSOR AND FITTINGS
71WJ01X10335 GE Washer Nut M8
72RUBBER GROMMET
73WJ53X10233 GE Capillary Sub-Assembly
74DISCHARGE TUBE
75CONDENSER ASSY
999MINI MANUAL
999PM OWNERS MANUAL
