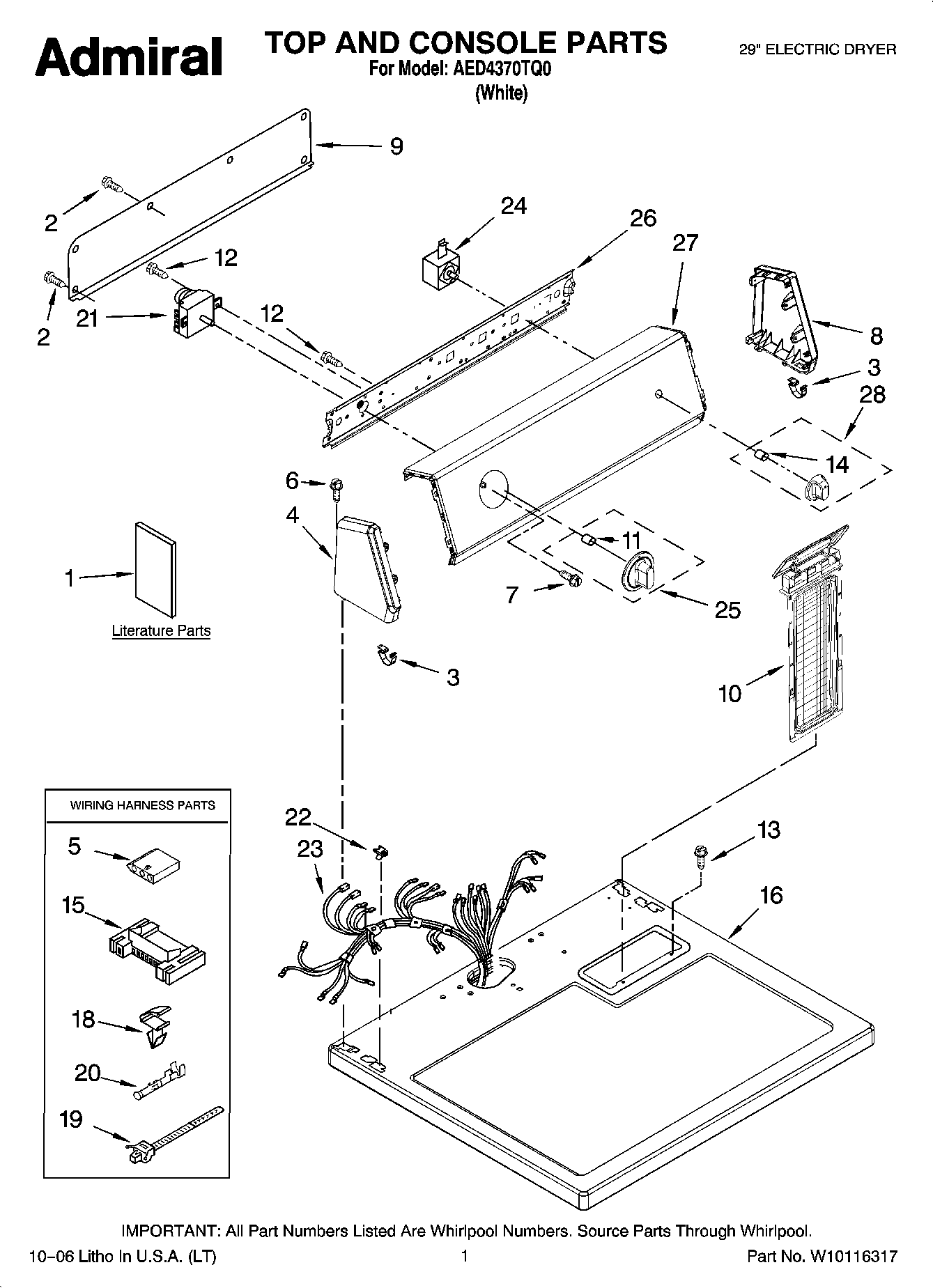

AED4370TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 8528187
1	MAY W10089174
1	MAY W10088970
1	Use & Care Guide
2	Screw
3	MAY 8312709
4	Cap, End (L.H.) (White)
5	MAY 3936144
6	Screw, Console
7	MAY 8533951
8	Cap, End (R.H.) (White)
9	MAY 8274261
10	MAY 8558467
12	MAY 8533971
13	SCREW
14	CLIP, SPRING
15	CONNECTOR (MOTOR)
16	MAY 8559800
18	CLIP, HARNESS
19	Tie, Cable
20	Terminal
21	MAY 8299781
22	Nut, Push-In
23	MAY 8299869
24	MAY 3977456
25	Timer Knob Assembly (White)
26	MAY 8579678
27	MAY W10086723
28	MAY W10110065
