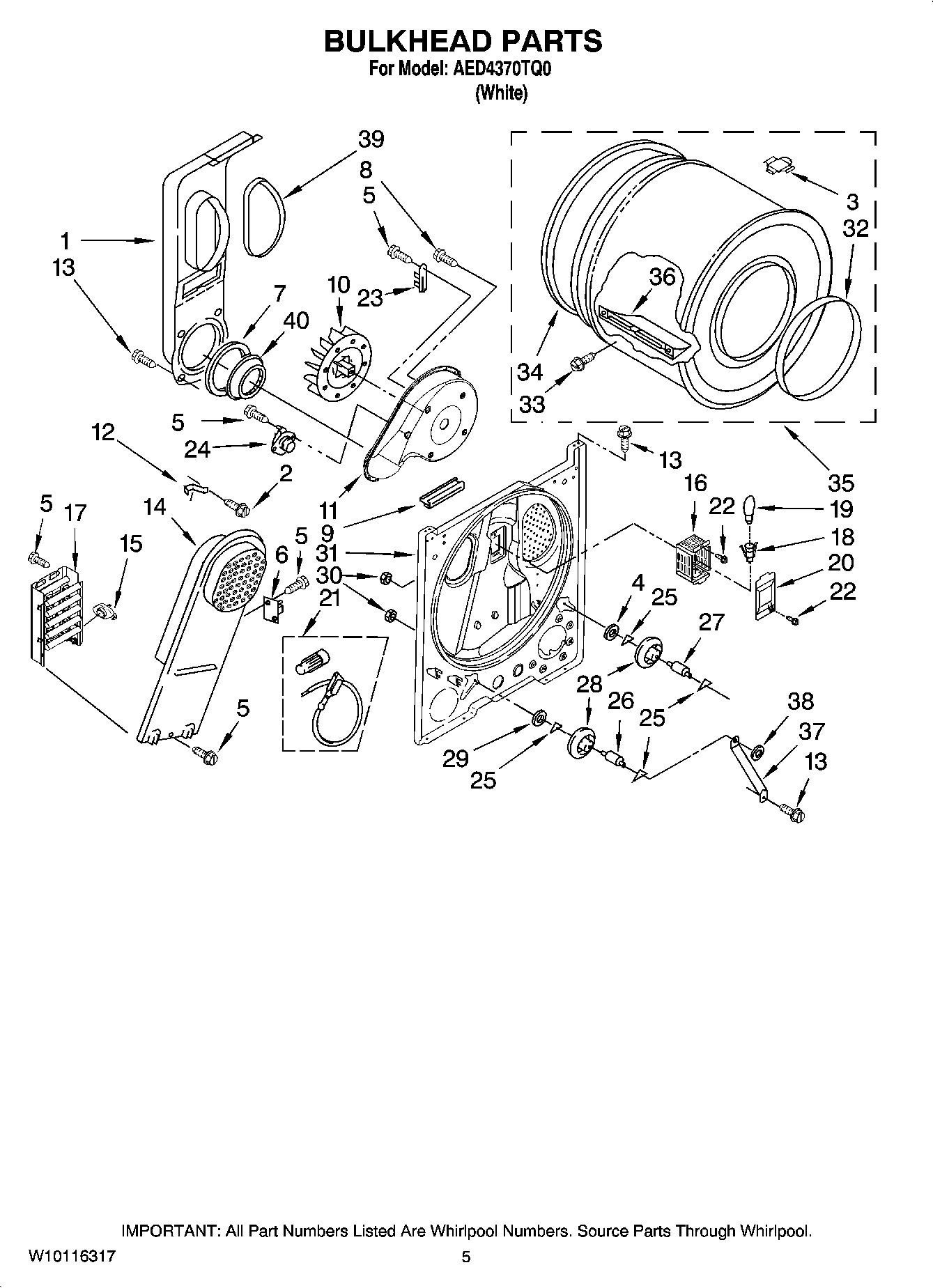

AED4370TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
	Dry Rack
	ACCESSORY PARTS, KIT, DRYER REPAIR
	PAINT, TOUCH-UP (1/2OZ. WHITE)
	PAINT, BULK (1 QT. WHITE (UNCUT))
1	MAY 694283
2	Screw
3	Plug, Drum Hole
4	WASHER
5	SCREW,8-18 X 3/8
6	MAY 3977393
7	MAY 347139
8	SCREW
9	MAY 3392247
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	MAY 3977373
17	MAY 8565582
18	Scocket, Assembly
19	MAY 3406124
20	MAY 8532165
21	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
22	MAY 487909
23	Fuse, Thermal (91 C)
24	MAY 3387134
25	WASHER, TRI RING
26	MAY 3399506
27	MAY 3399507
28	MAY 3397590
29	WASHER
30	Nut, 3/8-16
31	MAY 8529957
32	MAY 3394509
33	MAY W10109200
34	MAY 8066085
35	MAY 3396777
36	MAY 342847
37	Bracket, Support
38	NUT, PUSH ON
39	MAY 339956
40	MAY 696302
