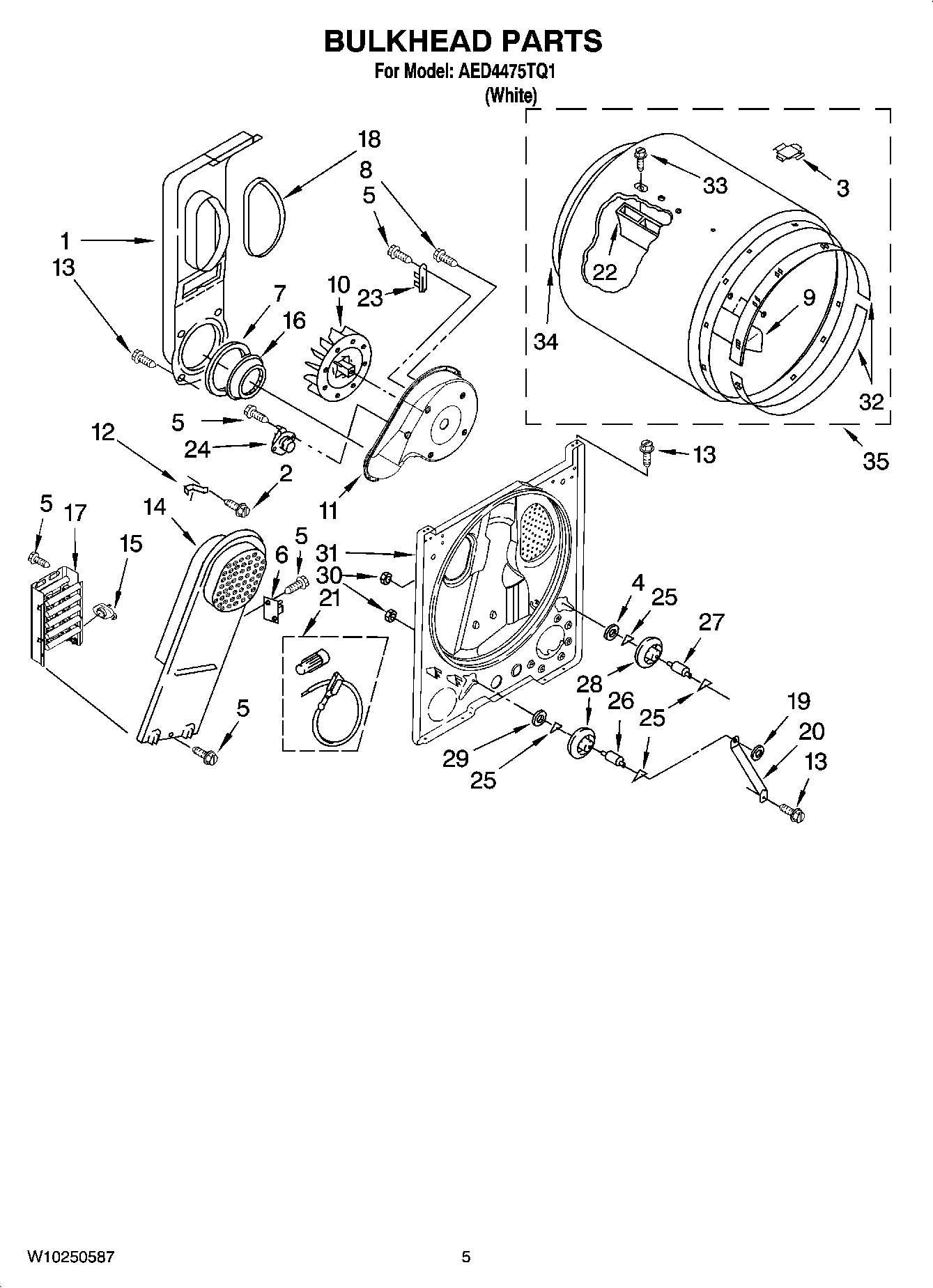

AED4475TQ1 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	Dry Rack
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
1	MAY 348368
2	Screw
3	Plug, Drum Hole
4	WASHER
5	SCREW,8-18 X 3/8
6	MAY 3977393
7	MAY 347139
8	SCREW
9	BAFFLE, DRUM (SHORT)
10	Wheel, Blower
11	MAY 8577230
12	MAY 8066155
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	MAY 696302
17	MAY 3403585
18	MAY 339956
19	NUT, PUSH ON
20	MAY 3976434
21	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
22	BAFFLE, DRUM (LONG)
23	Fuse, Thermal (91 C)
24	MAY 3387134
25	WASHER, TRI RING
26	MAY 3399506
27	MAY 3399507
28	MAY 3397590
29	WASHER
30	Nut, 3/8-16
31	MAY 3403491
32	Bearing, Ring
33	MAY W10219342
34	MAY 3406130
35	MAY 695587
