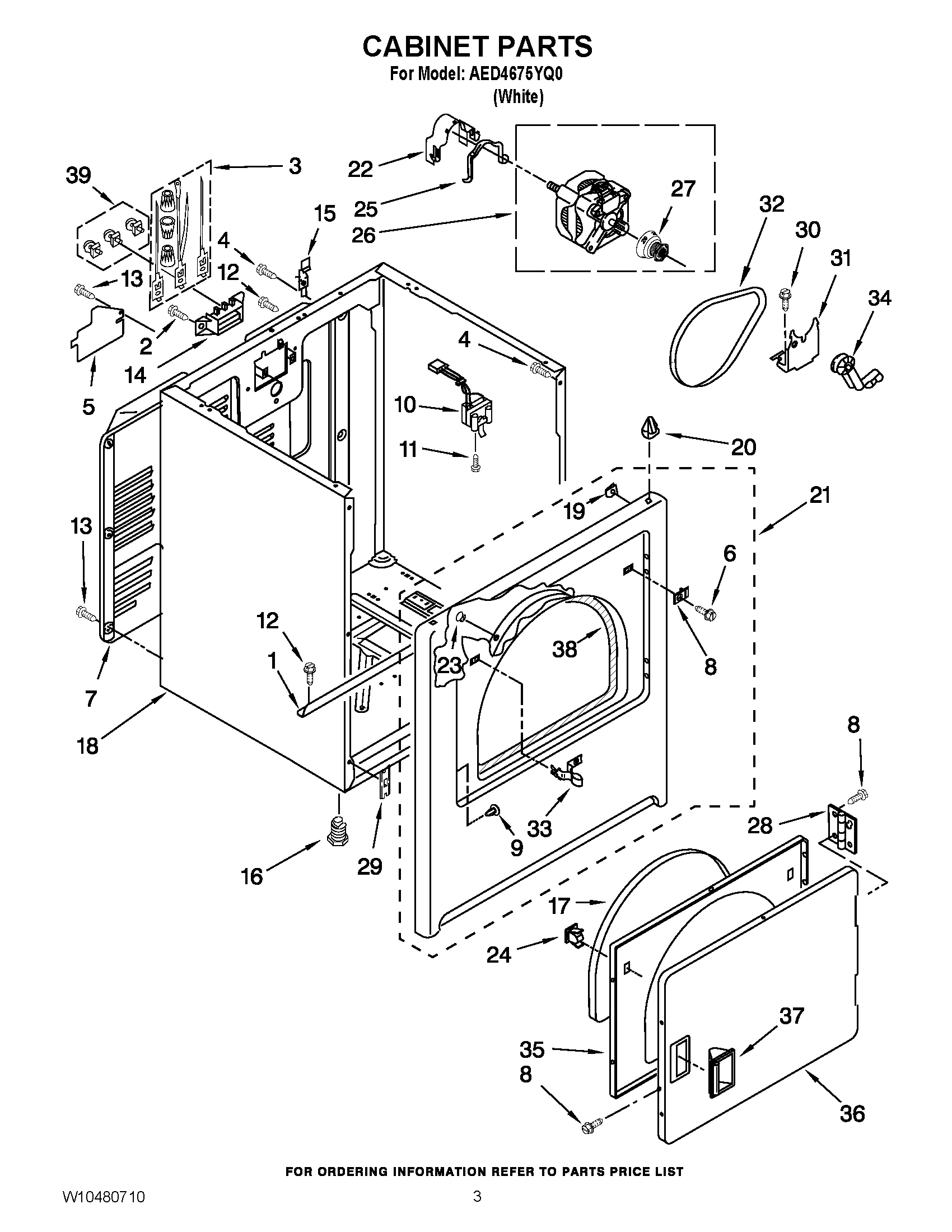

AED4675YQ0 02 – CABINET PARTS

Products

Position	Product
1	MAY W1026073
2	SCREW, 10-16 X 1/2
3	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
4	SCREW
5	MAY 3396795
6	PLUG-STRIKE
7	MAY 3396805
8	MAY 342055
9	PLUG, HINGE HOLES
10	MAY 3406109
11	SCREW
12	SCREW
13	Screw
14	MAY 3397659
15	Hinge, Top
16	MAY 3392100
17	MAY 3405246
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	Panel Front Assembly
22	Clamp, Motor (With Shield)
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	CLAMP, MOTOR MOUNT
26	Motor Assembly
27	Pulley, Motor
28	ASSEMBLY, HINGE AND PIN
29	MAY 3394083
30	BOLT
31	MAY 348780
32	MAY W10131364
33	Strike, Door
34	IDLER ASSEMBLY
35	Door, Rear
36	DOOR FRONT
37	MAY 8566059
38	MAY 3406129
39	MAY 279393
