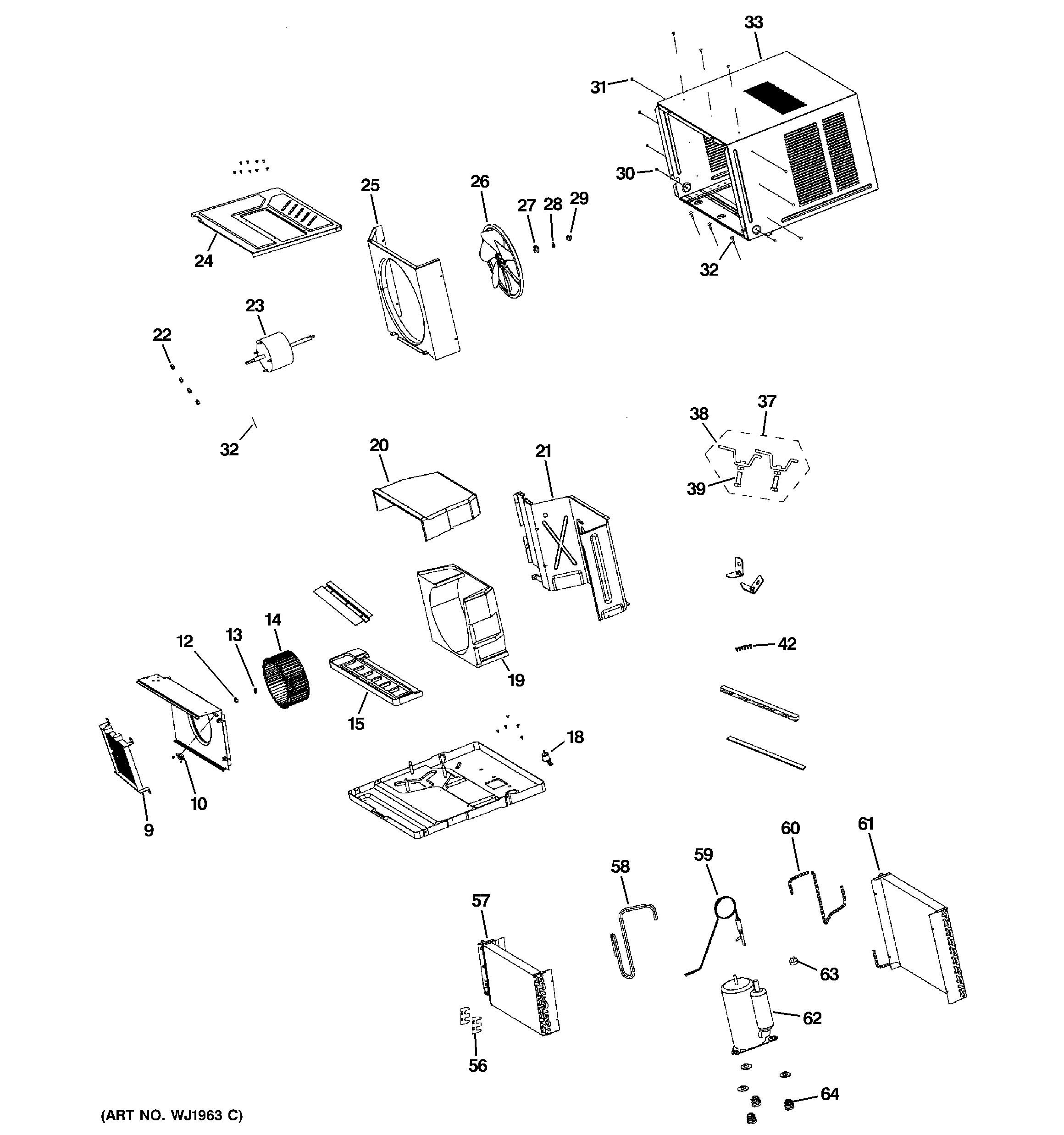

AEE08ANL1 CABINET & COMPONENTS

Products

Position	Product
9	GEN WJ27X10117
9	GEN WJ79X10218
10	WJ26X10332 GE Air Conditioner TCO
10	GEN WJ26X10331
12	WJ01X20351 GE Nut (M8)
13	WJ03X10075 GE Washer Spring (Diameter 8mm)
14	GEN WJ73X10167
15	WJ70X10058 GE Drain Pan
18	GEN WJ58X10042
19	WJ76X10255 GE Lower Snail Shell
20	GEN WJ76X10256
21	WJ45X10031 GE Middle Insulation Plate
22	WJ01X10412 GE Nut (M4)
23	GEN WJ95X10015
23	GEN WJ95X10016
24	WJ11X10023 GE Connecting Plate Top
25	GEN WJ76X10257
26	WJ73X20314 GE Air Conditioner Axial Flow Fan
27	WJ01X10312 GE Air Conditioner Washer
28	WJ01X10313 GE Washer Air Conditioner
29	WJ01X10314 GE Air Conditioner Nut with Washer
30	SELF-TAPPING SCREW
31	GEN WJ01X10413
32	SCREW
33	WJ90X10126 GE Cabinet Assembly
33	GEN WJ90X10134
37	WJ79X10208 GE Air Conditioner Mounting Rack Assembly
38	WJ79X10209 GE Mounting Rack
39	GEN WJ01X10360
42	WJ01X10351 GE Screw
56	WJ03X10067 GE Sensor Holder
57	GEN WJ88X10236
57	WJ88X10237 GE Evaporator Assembly
58	WJ57X10026 GE Pipe Suction
58	WJ57X10025 GE Suction Pipe
59	WJ53X10228 GE Capillary Sub Assembly
59	GEN WJ53X10227
60	GEN WJ49X10026
60	GEN WJ49X10027
61	GEN WJ87X10258
61	GEN WJ87X10257
62	GEN WJ98X10291
62	GEN WJ98X10290
63	GEN WJ23X10149
63	GEN WJ23X10148
64	WJ01X10380 GE Rubber Grommet
64	GEN WJ01X10385
