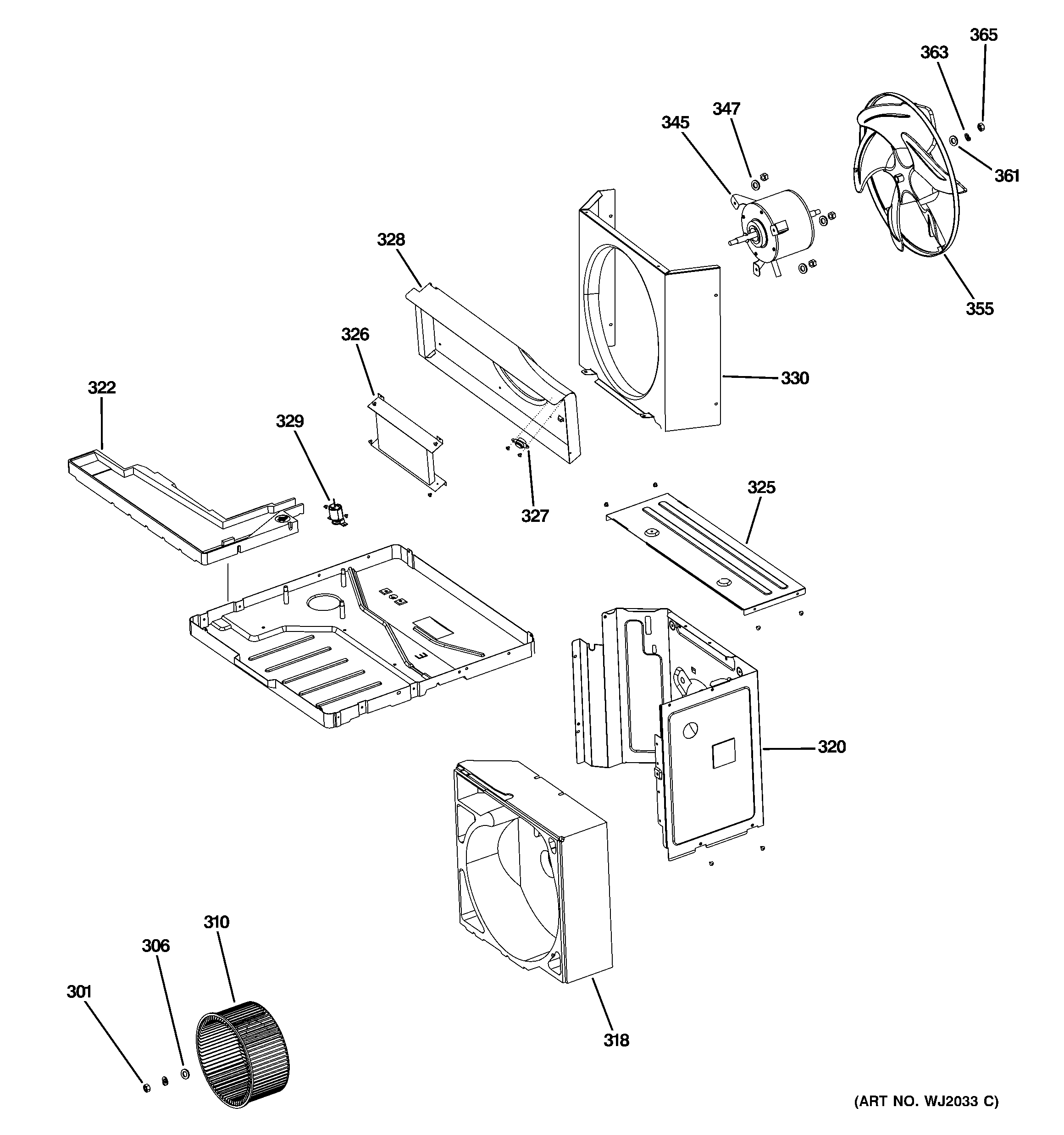

AEE08APL1 BASE PAN PARTS

AEE08APL1 BASE PAN PARTS

Written by

in

AEE08APL1 BASE PAN PARTS

Products

PositionProduct
301WJ01X20351 GE Nut (M8)
306WJ03X10075 GE Washer Spring (Diameter 8mm)
310GEN WJ73X10167
318WJ76X10255 GE Lower Snail Shell
320WJ45X10031 GE Middle Insulation Plate
322WJ70X10058 GE Drain Pan
325GEN WJ76X10256
326GEN WJ27X10117
327GEN WJ26X10331
328GEN WJ79X10259
329GEN WJ58X10042
330GEN WJ76X10257
345WJ95X10029 GE Air Conditioner Fan Motor
347WJ01X10412 GE Nut (M4)
355WJ73X20314 GE Air Conditioner Axial Flow Fan
361WJ01X10313 GE Washer Air Conditioner
363WJ01X10312 GE Air Conditioner Washer
365WJ01X10314 GE Air Conditioner Nut with Washer
