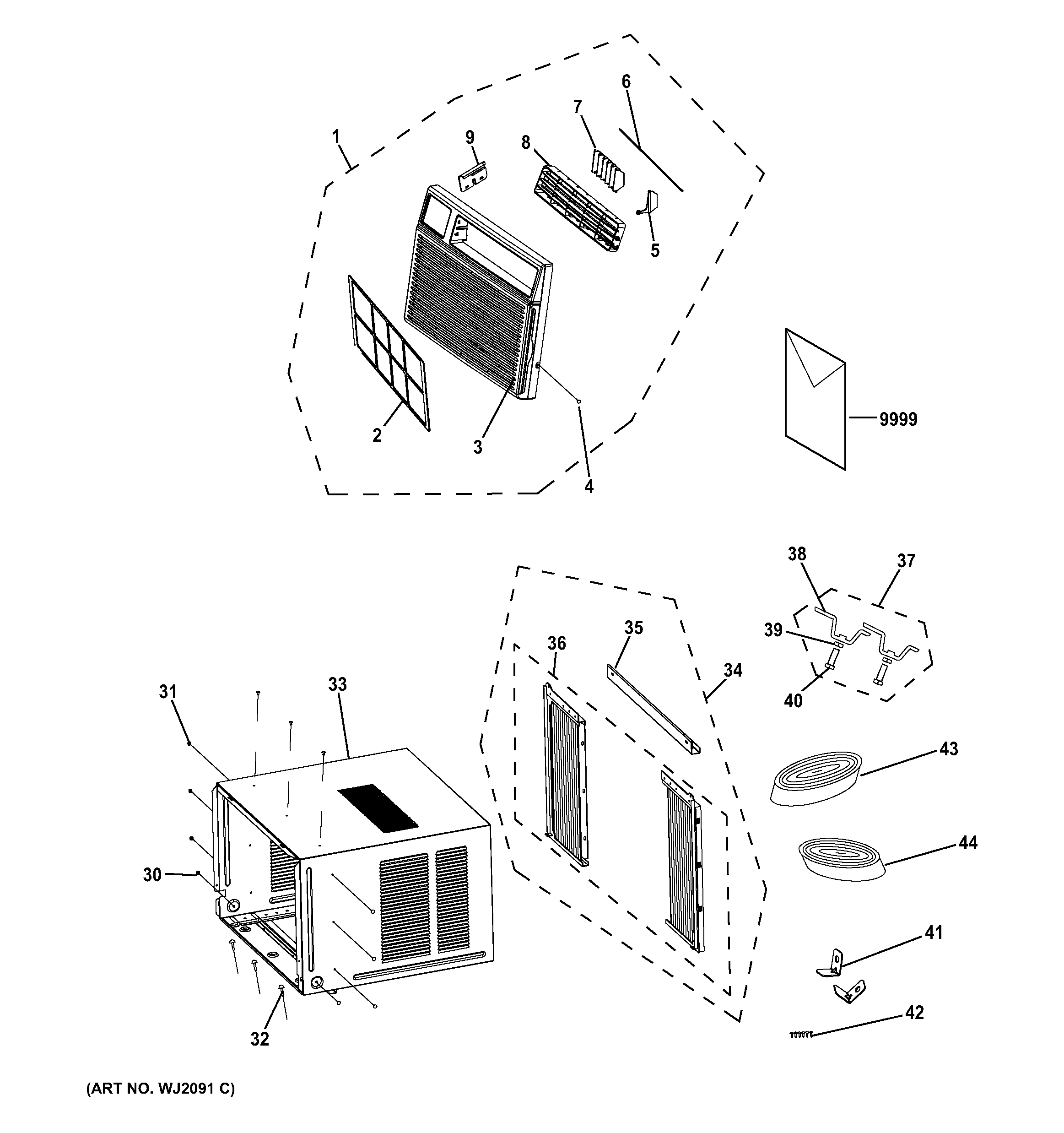

AEE08ARL1 GRILLE & CHASSIS PARTS

Products

Position	Product
1	WJ71X10777 GE Air Conditioner Front Panel Assembly
2	WJ71X10571 GE Air Conditioner Filter
3	GEN WJ71X10636
4	GEN WJ01X10430
5	WJ71X10573 GE Air Conditioner Swing Louver
6	WJ14X10079 GE Air Conditioner Guide Lever
7	GEN WJ71X10574
8	GEN WJ71X10572
9	SUPPORT OF LOUVER
30	SELF-TAPPING SCREW
31	GEN WJ01X10413
32	SCREW
33	GEN WJ90X10134
34	WJ01X10359 GE Curtain Assembly
35	WJ68X10063 GE Air Conditioner Top Guide Assembly
36	WJ71X10575 GE Air Conditioner Flex Mounted Frame
37	WJ79X10208 GE Air Conditioner Mounting Rack Assembly
38	WJ79X10209 GE Mounting Rack
39	WJ01X20351 GE Nut (M8)
40	GEN WJ01X10360
41	WJ66X10098 GE Window Locking Bracket
42	WJ01X10351 GE Screw
43	WJ44X10015 GE Seal Strip
44	WJ44X10016 GE Seal Strip
9999	GEN 31-61697
9999	GEN 49-7665-1
