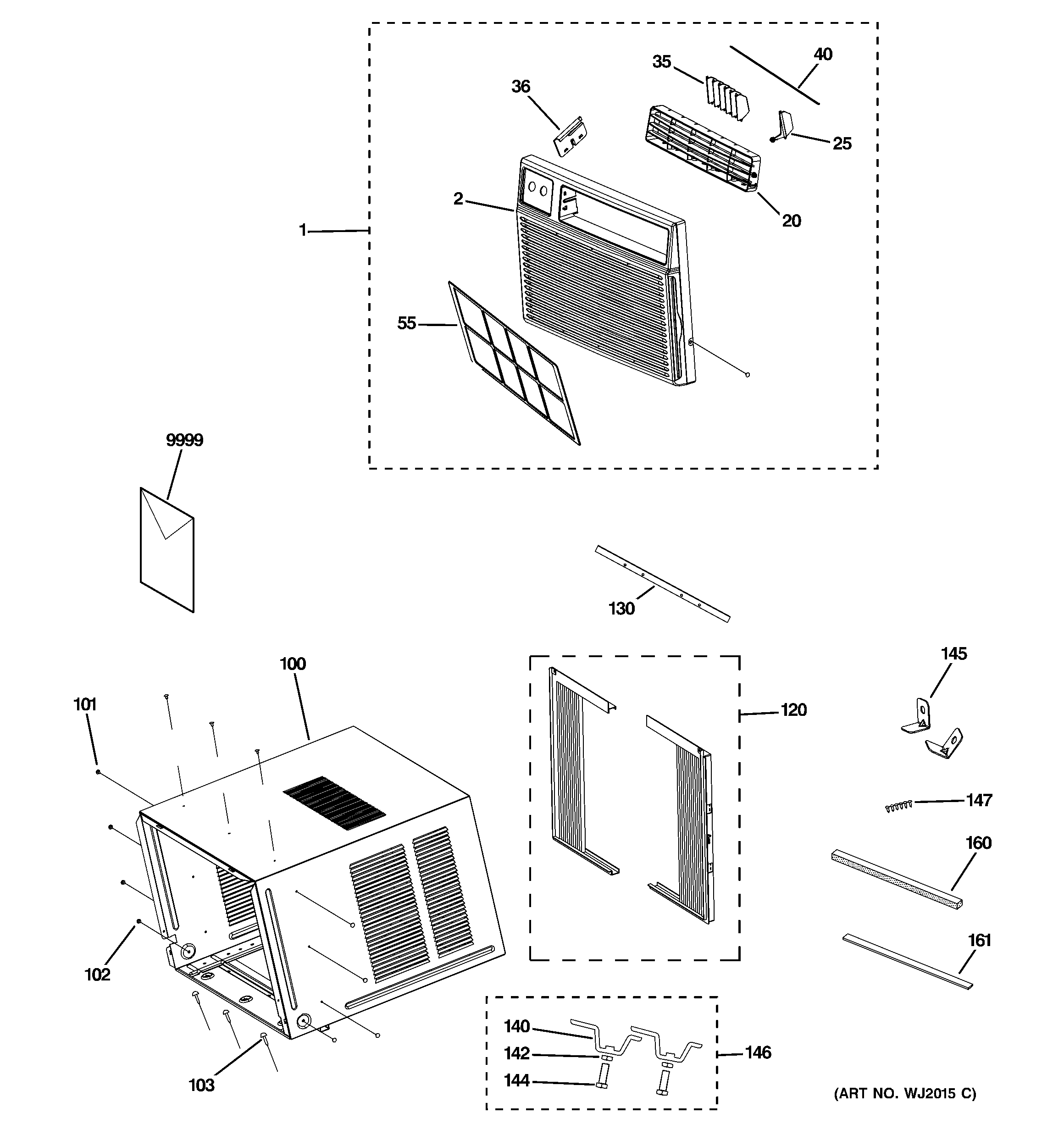

AEE12DPL1 GRILLE & CHASSIS PARTS

Written by

Products

Position	Product
1	GEN WJ71X10670
2	GEN WJ71X10570
20	GEN WJ71X10572
25	WJ71X10573 GE Air Conditioner Swing Louver
35	GEN WJ71X10574
36	SUPPORT OF LOUVER
40	WJ14X10079 GE Air Conditioner Guide Lever
55	WJ71X10571 GE Air Conditioner Filter
100	GEN WJ90X10134
101	SELF-TAPPING SCREW
102	GEN WJ01X10413
103	SCREW
120	WJ01X10359 GE Curtain Assembly
130	WJ68X10063 GE Air Conditioner Top Guide Assembly
140	WJ79X10209 GE Mounting Rack
142	WJ01X20351 GE Nut (M8)
144	GEN WJ01X10360
145	WJ66X10098 GE Window Locking Bracket
146	WJ79X10208 GE Air Conditioner Mounting Rack Assembly
147	WJ01X10351 GE Screw
160	WJ44X10015 GE Seal Strip
161	WJ44X10016 GE Seal Strip
9999	GEN 49-7665
9999	GEN 31-61637
