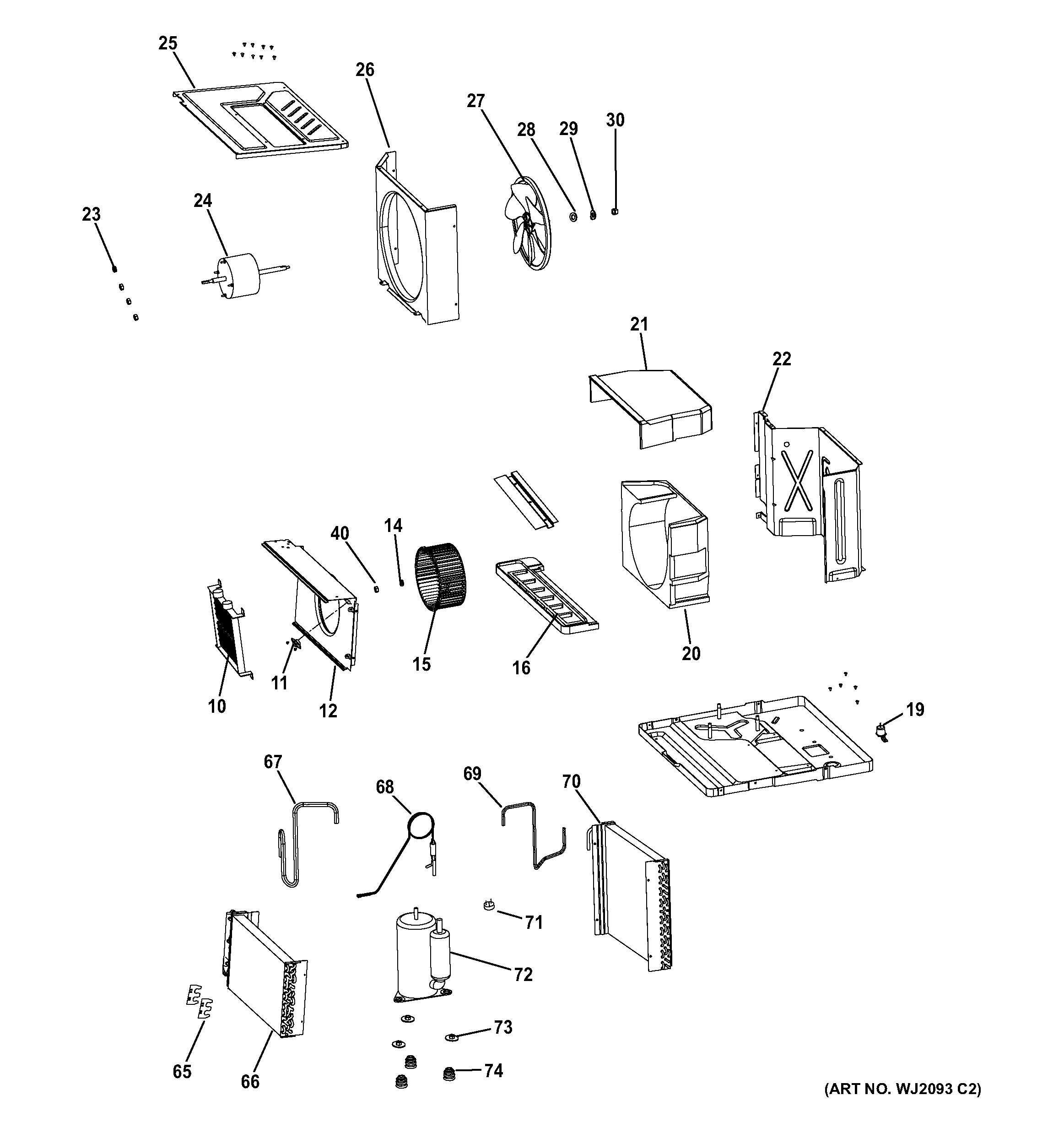

AEE12DRL1 BASE PAN & UNIT PARTS

Products

Position	Product
10	WJ27X10155 GE Air Conditioner Electric Heater
11	WJ26X10332 GE Air Conditioner TCO
12	COVER, EVAPORATOR
14	WJ03X10075 GE Washer Spring (Diameter 8mm)
15	CENTRIFUGAL FAN
16	WJ70X10058 GE Drain Pan
19	WJ58X10044 GE Drain Valve
20	WJ76X10255 GE Lower Snail Shell
21	WJ76X10340 GE Air Conditioner Upper Airflow Housing
22	WJ45X10031 GE Middle Insulation Plate
23	WJ01X10412 GE Nut (M4)
24	WJ95X10034 GE Air Conditioner Fan Motor
25	WJ11X10023 GE Connecting Plate Top
26	GEN WJ76X10257
27	WJ73X20314 GE Air Conditioner Axial Flow Fan
28	WJ01X10313 GE Washer Air Conditioner
29	WJ01X10312 GE Air Conditioner Washer
30	WJ01X10314 GE Air Conditioner Nut with Washer
40	WJ01X20351 GE Nut (M8)
65	WJ02X10036 GE Sensor Support
66	GEN WJ88X10265
67	WJ57X10057 GE Suction Tube
68	GEN WJ53X10274
69	GEN WJ49X10059
70	GEN WJ87X10291
71	GEN WJ23X10168
72	GEN WJ98X10331
73	WJ01X10361 GE Grommet Rubber
74	WJ01X10335 GE Washer Nut M8
