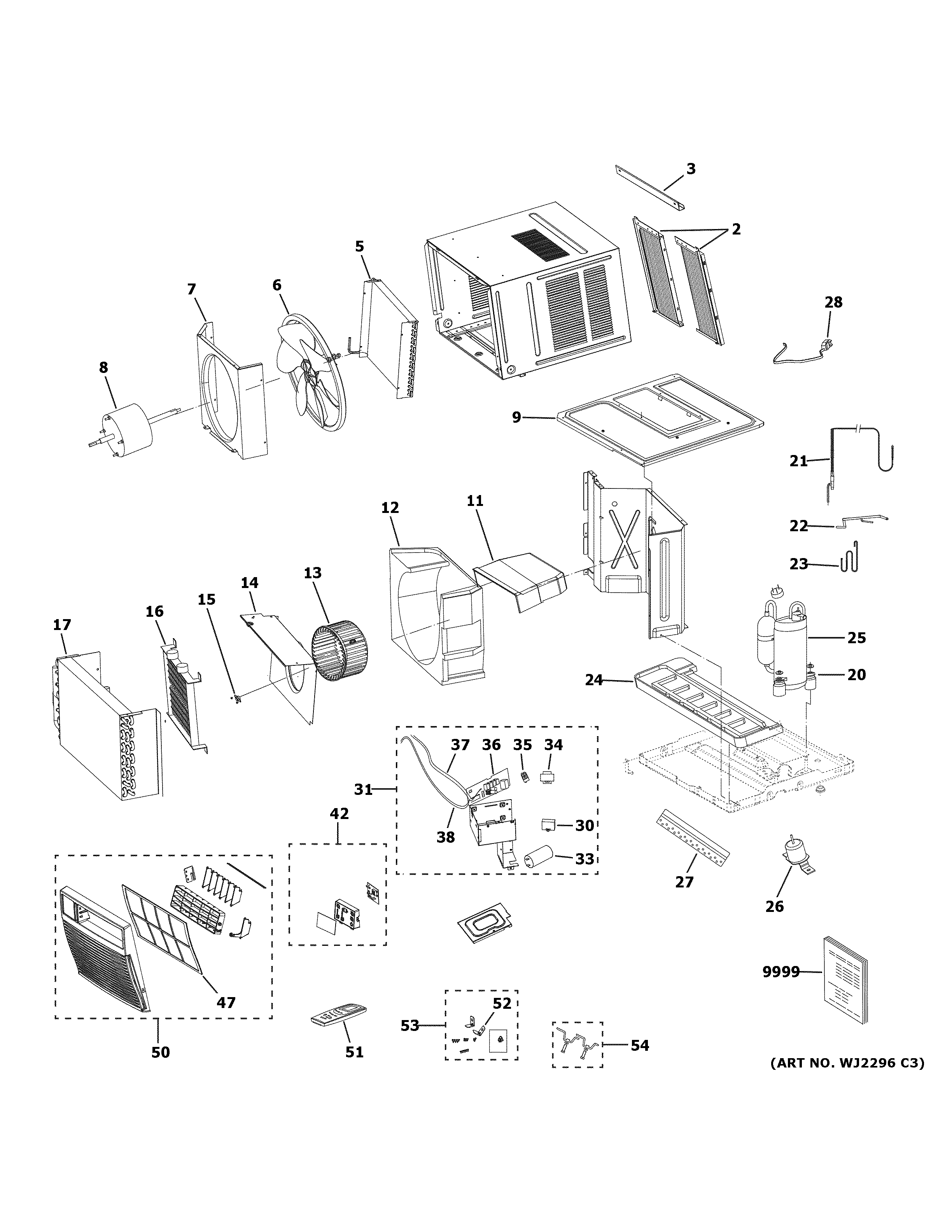

AEE12DTL2 ROOM AIR CONDITIONERadmin2025-04-26T08:38:28+00:00AEE12DTL2 ROOM AIR CONDITIONER ProductsPositionProduct2WJ01X10359 GE Curtain Assembly3WJ68X10063 GE Air Conditioner Top Guide Assembly5WJ88X32009 GE Condenser6WJ73X20314 GE Air Conditioner Axial Flow Fan7GEN WJ79X102068WJ95X10034 GE Air Conditioner Fan Motor9WJ11X10023 GE Connecting Plate Top11WJ76X10340 GE Air Conditioner Upper Airflow Housing12WJ76X10255 GE Lower Snail Shell13WJ73X20320 GE Air Conditioner Centrifugal Fan Assembly14COVER, EVAPORATOR15WJ26X10332 GE Air Conditioner TCO16WJ27X10155 GE Air Conditioner Electric Heater17WJ88X20613 GE Air Conditioner Evaporator Assembly20WJ01X10380 GE Rubber Grommet21WJ53X32007 GE Capillary Assembly22WJ53X32006 GE Inhalation Tube23WJ53X32005 GE Discharge Tube24WJ70X10058 GE Drain Pan25WJ98X20608 GE Air Conditioner Compressor and Fittings26WJ58X10044 GE Drain Valve27WJ26X24282 GE Thermal Control28WJ26X10333 GE Air Conditioner Power Cord (LCDI)30WJ20X20606 GE Air Conditioner Capacitor31WJ05X32004 GE Air Conditioner Electric Box Assembly33WJ20X20435 GE Air Conditioner CBB65 Capacitor34WJ27X10154 GE Air Conditioner Transformer35TERMINAL BOARD36WJ29X10052 GE Air Conditioner Main Board37WJ26X25108 GE Temperature Sensor38WJ27X10168 GE Air Conditioner Room Temperature Sensor42WJ05X32003 GE Air Conditioner Electric Controller Box Assembly47WJ71X20614 GE Air Conditioner Filter50WJ71X10777 GE Air Conditioner Front Panel Assembly51WJ26X20522 GE Air Conditioner Remote Controller52WJ66X10098 GE Window Locking Bracket53WJ01X20615 GE Installation Hardware Assembly54WJ79X10208 GE Air Conditioner Mounting Rack Assembly9999PM OWNERS MANUAL
