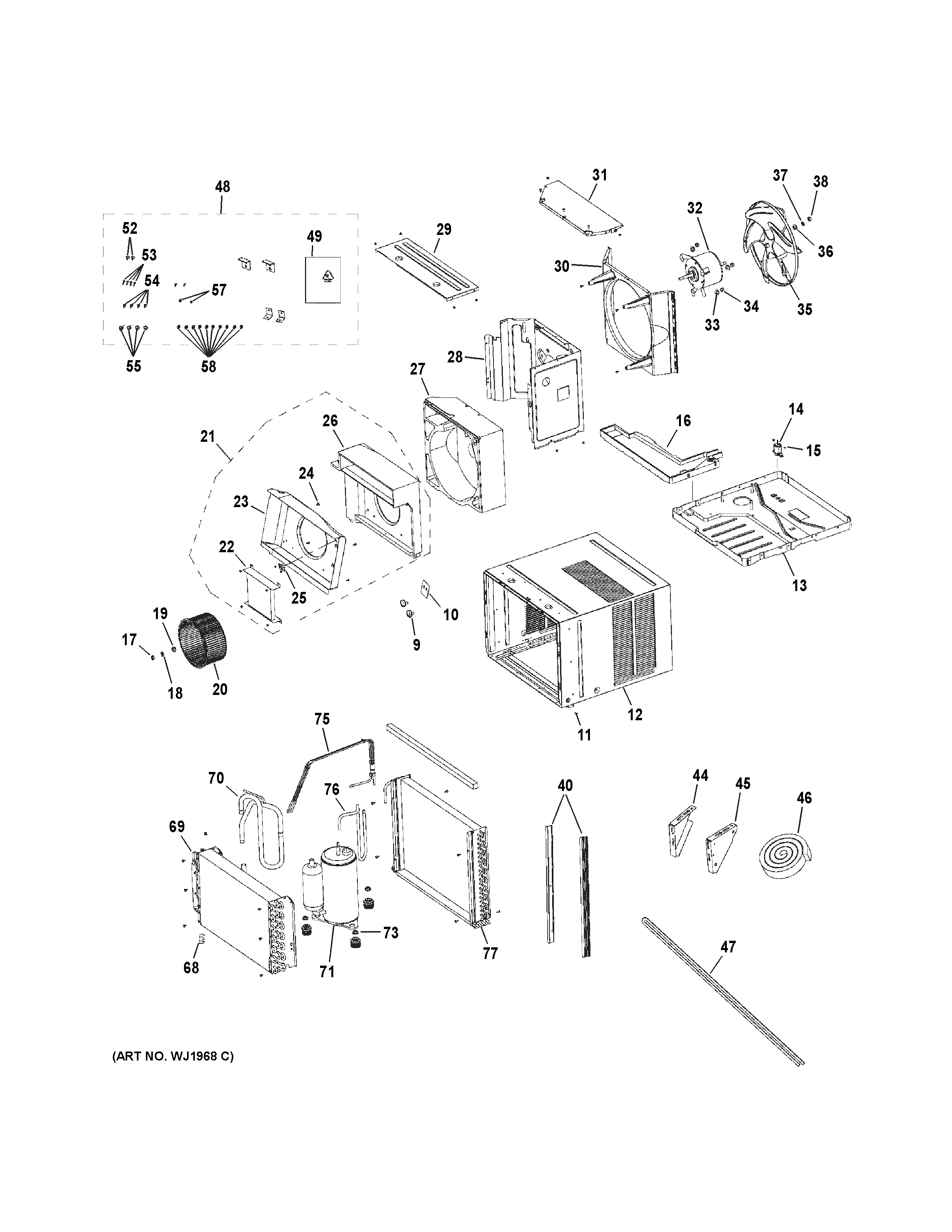

AEE18DNM1 CABINET & COMPONENTS

Products

Position	Product
9	KNOB SUB-ASSY
10	ESCUTCHEON
11	SELF-TAPPING SCREW
12	WJ90X10126 GE Cabinet Assembly
13	CHASSIS SUB-ASSY
14	GEN WJ58X10042
15	WJ01X10370 GE Screw St4.2 x 6.5
16	WJ05X10054 GE Air Conditioner Foam Water Tray
17	WJ01X10265 GE Washer Nut
18	WJ01X10266 GE Washer Assembly
19	WJ43X10075 GE Gasket (Diameter 10mm)
20	WJ73X10189 GE Air Conditioner Centrifugal Fan
21	WJ01X10371 GE Air Outlet Assembly
22	ELECTRIC HEATER
23	ELEC HEATER COVER
24	WJ01X10372 GE Volute Fixed Screw
25	GEN WJ26X10331
26	WJ05X10055 GE Air Outlet Foam
27	WJ90X10127 GE Propeller Housing Assembly
28	MOTOR SUPPORTING
29	TOP COVER
30	WJ79X10216 GE Condenser Cover
31	WJ79X10217 GE Top Rear Cover
32	FAN MOTOR
33	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
34	WJ01X10329 GE Air Conditioner Nut
35	WJ73X10190 GE Air Conditioner Axial Flow Fan
36	WJ43X10076 GE Gasket Diameter 8mm
37	WJ43X10077 GE Gasket (Diameter 8mm)
38	WJ01X10374 GE Levo Nut (M8)
40	CONNECTION BAR TO CABINE
44	WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
45	WJ67X10003 GE Right Side Case Mount Bracket
46	WJ43X10079 GE Window Top Foam Gasket
47	WJ43X10080 GE Window Seal Sash
48	WJ01X10376 GE Room Air Conditnr Installation
49	WJ01X10350 GE Plastic Bag
52	BOLT M6X19
53	WJ01X10351 GE Screw
54	BOLT M5X13
55	NUT M5X5
57	NUT M6X6
58	SCREW M4.8X8
68	SENSOR SUPPRT
69	EVAPORATOR ASSY
70	SUCTION PIPE
71	COMPRESSOR AND FITTINGS
73	WJ01X10335 GE Washer Nut M8
75	CAPILLARY SUB-ASSY
76	DISCHARGE TUBE
77	CONDENSER ASSY
