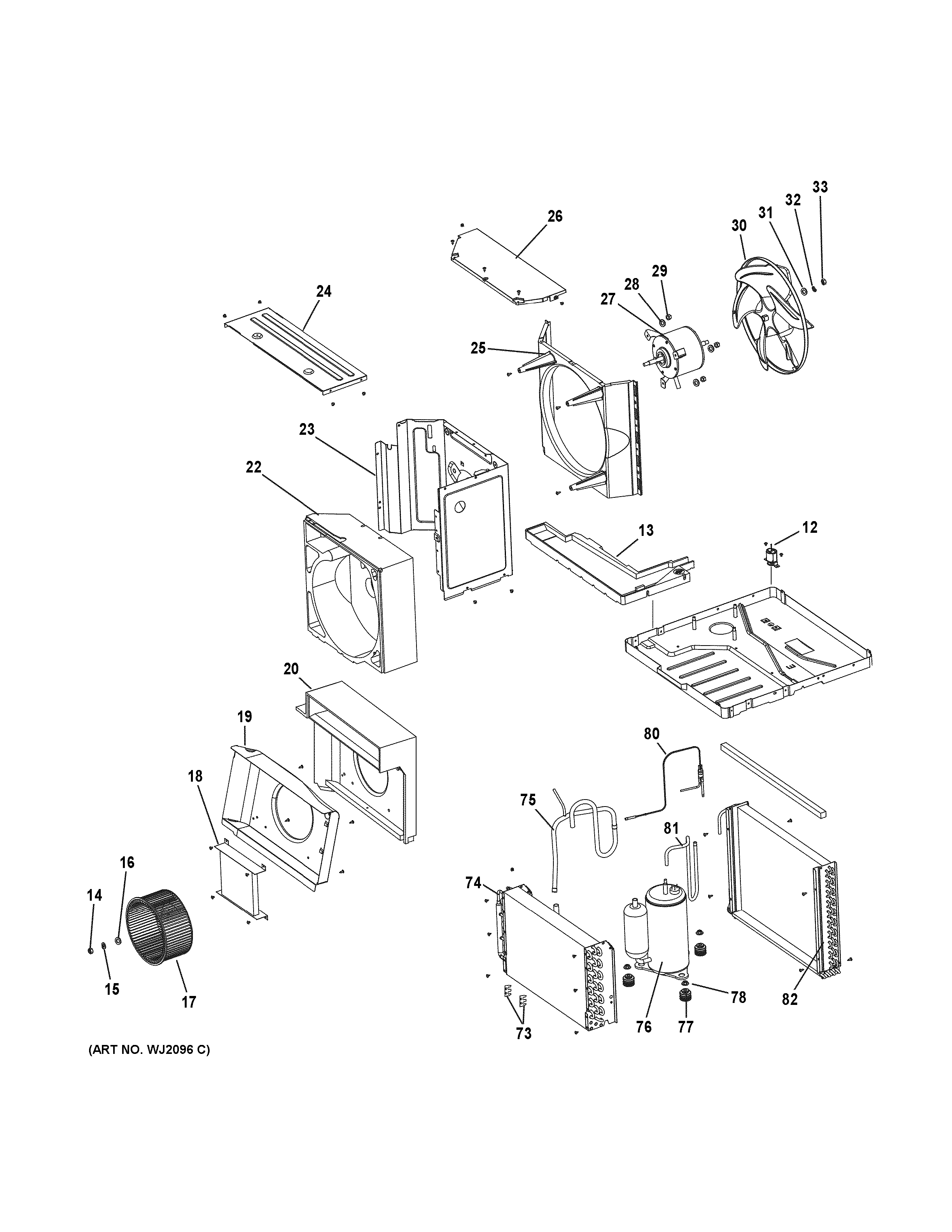

AEE18DRL1 BASE PAN & UNIT PARTS

Products

Position	Product
12	WJ58X10044 GE Drain Valve
13	WJ05X10054 GE Air Conditioner Foam Water Tray
14	WJ01X10265 GE Washer Nut
15	WJ43X10075 GE Gasket (Diameter 10mm)
16	WJ01X10266 GE Washer Assembly
17	WJ73X10189 GE Air Conditioner Centrifugal Fan
18	WJ27X10171 GE Air Conditioner Electric Heater
19	WJ79X10273 GE Electric Heater Cover
20	WJ05X10055 GE Air Outlet Foam
22	HOUSING, PROPELLER
23	WJ66X10104 GE Motor Support Bracket
24	WJ79X10274 GE Top Cover
25	WJ79X10216 GE Condenser Cover
26	WJ79X10217 GE Top Rear Cover
27	WJ94X10331 GE Air Conditioner Fan Motor
28	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
29	WJ01X10329 GE Air Conditioner Nut
30	WJ73X10190 GE Air Conditioner Axial Flow Fan
31	WJ43X10077 GE Gasket (Diameter 8mm)
32	WJ43X10076 GE Gasket Diameter 8mm
33	WJ01X10374 GE Levo Nut (M8)
73	WJ02X10036 GE Sensor Support
74	EVAPORATOR ASSY
75	SUCTION TUBE
76	COMPRESSOR
77	WJ01X10380 GE Rubber Grommet
78	WJ01X10335 GE Washer Nut M8
80	CAPILLARY TUBE
81	DISCHARGE TUBE
82	CONDENSER ASSY
