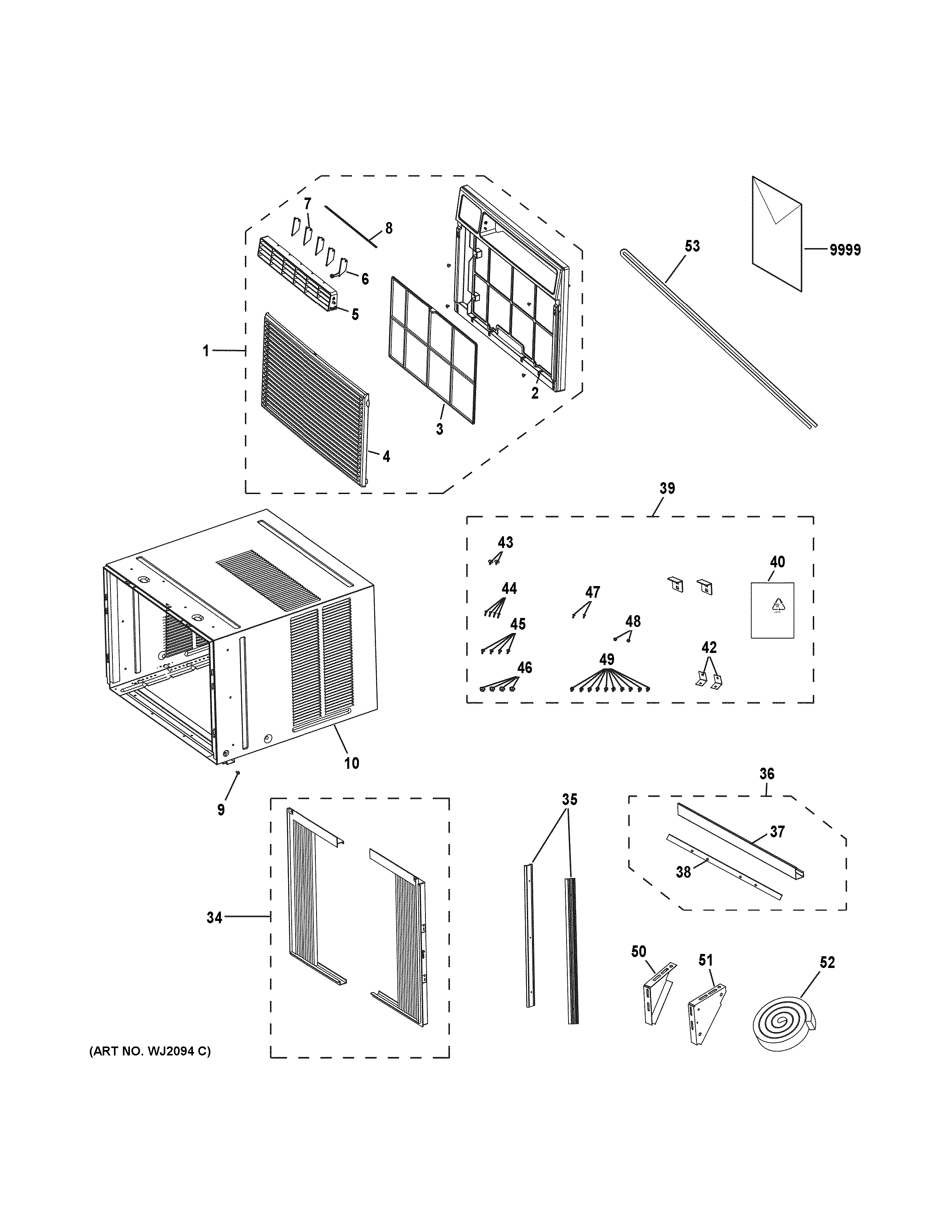

AEE18DRL1 GRILLE & CHASSIS PARTS

Products

Position	Product
1	WJ71X10778 GE Air Conditioner Front Panel Assembly
2	GEN WJ71X10725
3	WJ71X10668 GE Air Conditioner Filter Assembly
4	GEN WJ82X10060
5	GEN WJ14X10086
6	WJ71X10573 GE Air Conditioner Swing Louver
7	GEN WJ71X10574
8	LINK VERTICAL LOUVER
9	SELF-TAPPING SCREW
10	WJ90X10126 GE Cabinet Assembly
34	WJ69X10018 GE Air Conditioner Curtain Assembly
35	WJ68X10065 GE Cabinet Support
36	WJ14X10087 GE Air Conditioner Top Guide Assembly
37	WJ65X21244 GE Air Conditioner Top Guide
38	WJ43X10078 GE Top Rail Gasket
39	WJ01X10376 GE Room Air Conditnr Installation
40	WJ01X10350 GE Plastic Bag
42	WJ66X10098 GE Window Locking Bracket
43	BOLT M6X19
44	WJ01X10351 GE Screw
45	BOLT M5X13
46	NUT M5X5
47	SCREW
48	NUT M6X6
49	SCREW M4.8X8
50	WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
51	WJ67X10003 GE Right Side Case Mount Bracket
52	WJ43X10079 GE Window Top Foam Gasket
53	WJ43X10080 GE Window Seal Sash
9999	USE & CARE MANUAL
9999	MINI MANUAL
