AEE18DTL3 ROOM AIR CONDITIONER

AEE18DTL3 ROOM AIR CONDITIONER

Written by

in

AEE18DTL3 ROOM AIR CONDITIONER

Products

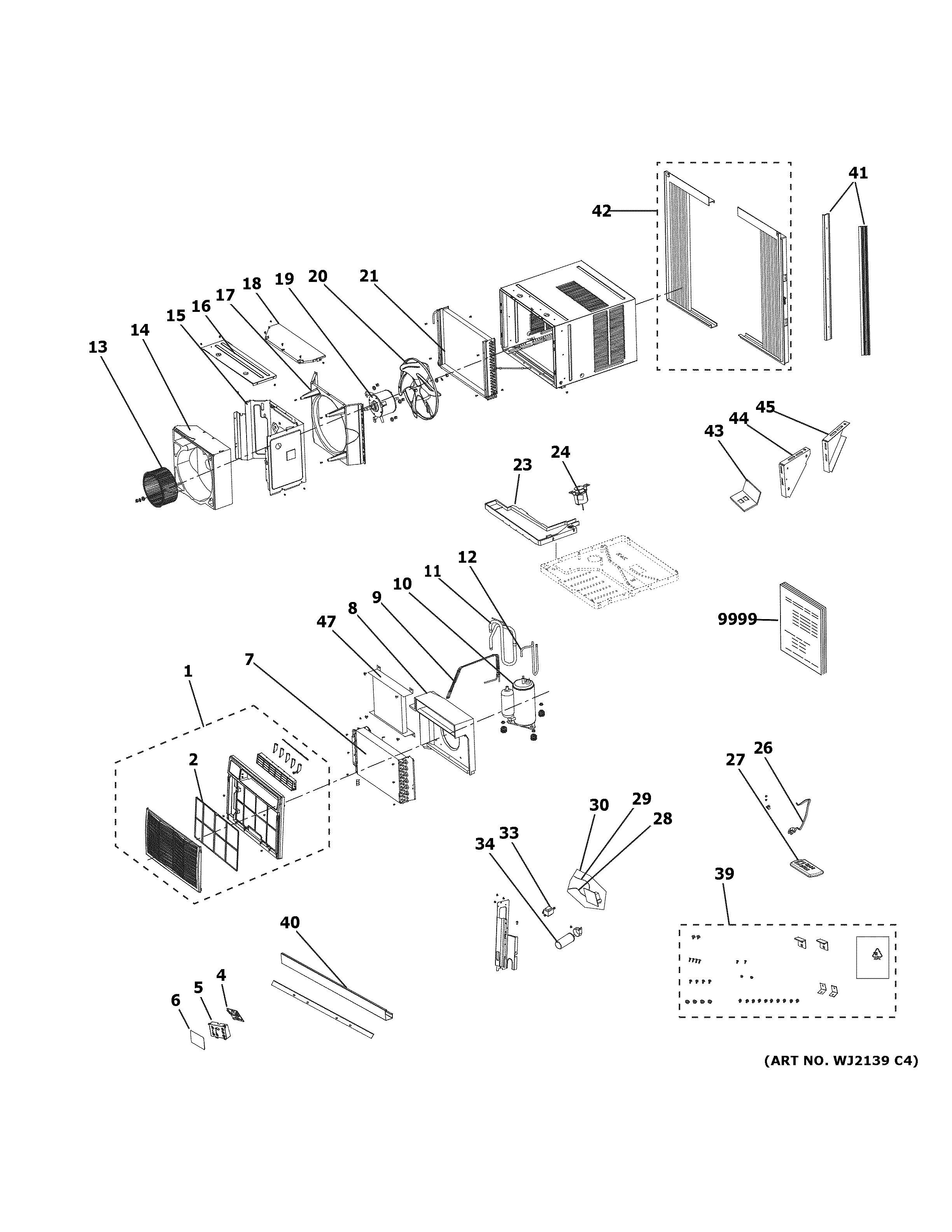

PositionProduct
1WJ71X10778 GE Air Conditioner Front Panel Assembly
2WJ71X10668 GE Air Conditioner Filter Assembly
4WJ26X26174 GE Air Conditioner Display Board
5WJ82X10077 GE Air Conditioner Control Panel
6WJ07X10265 GE Air Conditioner Escutcheon
7EVAPORATOR ASM
8WJ05X10055 GE Air Outlet Foam
9WJ53X20603 GE Air Conditioner Capillary Assembly
10WJ98X20555 GE Compressor and Fittings
11WJ57X20556 GE Suction Tube Assembly
12WJ49X20551 GE Discharge Tube
13WJ73X10189 GE Air Conditioner Centrifugal Fan
14WJ73X20605 GE Fan Housing
15WJ66X10104 GE Motor Support Bracket
16WJ79X10274 GE Top Cover
17WJ79X10216 GE Condenser Cover
18WJ79X10217 GE Top Rear Cover
19WJ94X20191 GE Air Conditioner Fan Motor
20WJ73X10190 GE Air Conditioner Axial Flow Fan
21WJ87X20166 GE Air Conditioner Condenser Assembly
23WJ05X10054 GE Air Conditioner Foam Water Tray
24WJ58X10044 GE Drain Valve
26WJ35X10168 GE Air Conditioner Power Cord
27WJ26X20522 GE Air Conditioner Remote Controller
28WJ26X25108 GE Temperature Sensor
29SENSOR TUBE
30WJ26X25626 GE Air Conditioner Main Control Board
33WJ27X10154 GE Air Conditioner Transformer
34WJ20X10207 GE Air Conditioner Capacitor
39WJ01X10376 GE Room Air Conditnr Installation
40WJ65X21244 GE Air Conditioner Top Guide
41WJ68X10065 GE Cabinet Support
42WJ69X10018 GE Air Conditioner Curtain Assembly
43WJ67X10004 GE Support Bracket
44WJ67X20198 GE Right Case Mount Bracket
45WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
47WJ27X10171 GE Air Conditioner Electric Heater
9999USE & CARE MANUAL
9999PM OWNERS MANUAL
