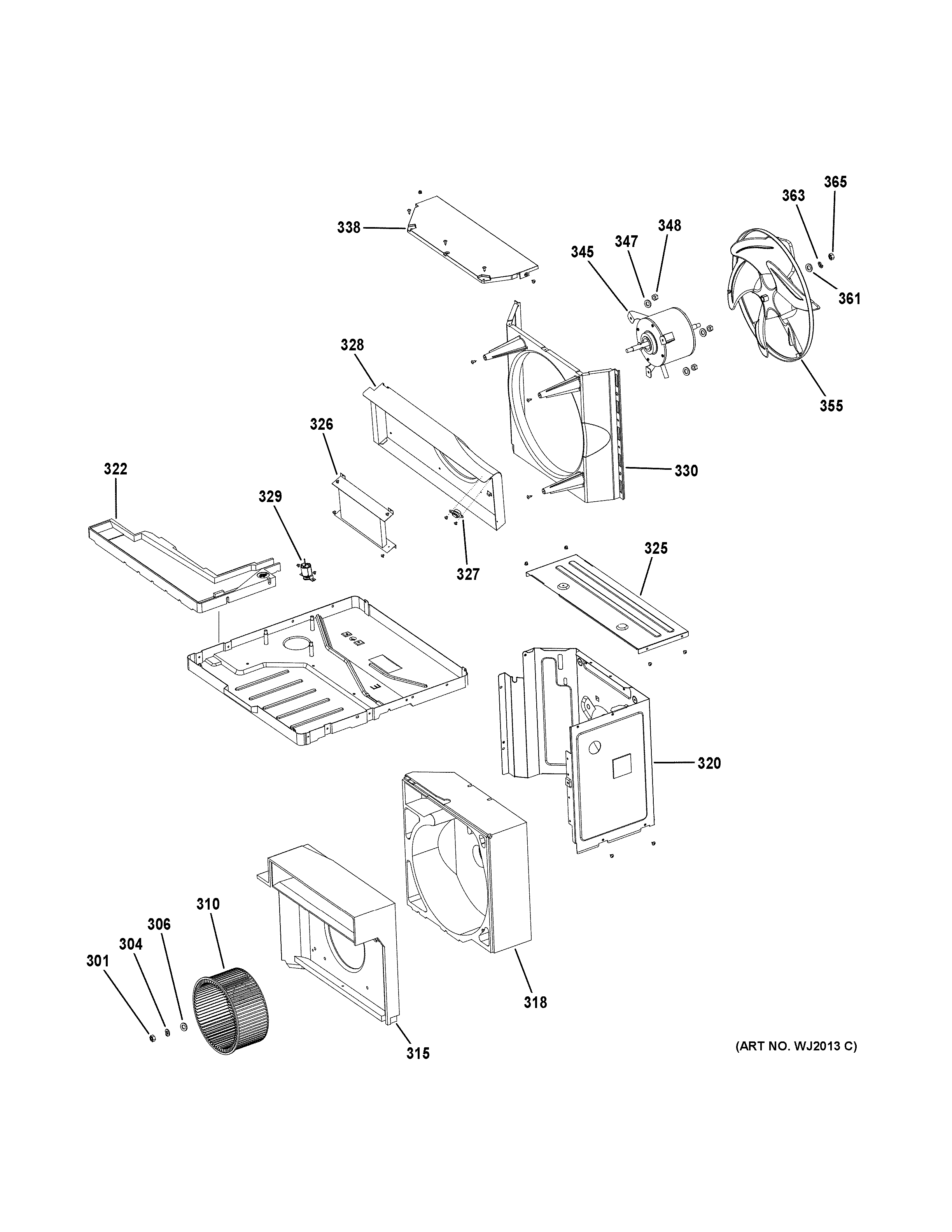

AEE23DPL1 BASE PAN PARTS

AEE23DPL1 BASE PAN PARTS

Written by

in

AEE23DPL1 BASE PAN PARTS

Products

PositionProduct
301WJ01X10265 GE Washer Nut
304WJ01X10266 GE Washer Assembly
306WJ43X10075 GE Gasket (Diameter 10mm)
310WJ73X10189 GE Air Conditioner Centrifugal Fan
315WJ76X10312 GE Air Outlet Shroud
318WJ76X10313 GE Propeller Housing
320WJ82X10068 GE Motor Support
322WJ05X10064 GE Water Tray
325WJ79X10244 GE Top Plate
326ELECTRIC HEATER
327THERMOCOUPLE
328WJ79X10243 GE Electric Heater Cover
329GEN WJ58X10042
330WJ79X10245 GE Condenser Cover
338WJ79X10246 GE Top Plate
345WJ95X10036 GE Air Conditioner Fan Motor
347WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
348WJ01X10329 GE Air Conditioner Nut
355WJ73X10190 GE Air Conditioner Axial Flow Fan
361WJ43X10076 GE Gasket Diameter 8mm
363WJ43X10077 GE Gasket (Diameter 8mm)
365WJ01X10374 GE Levo Nut (M8)
