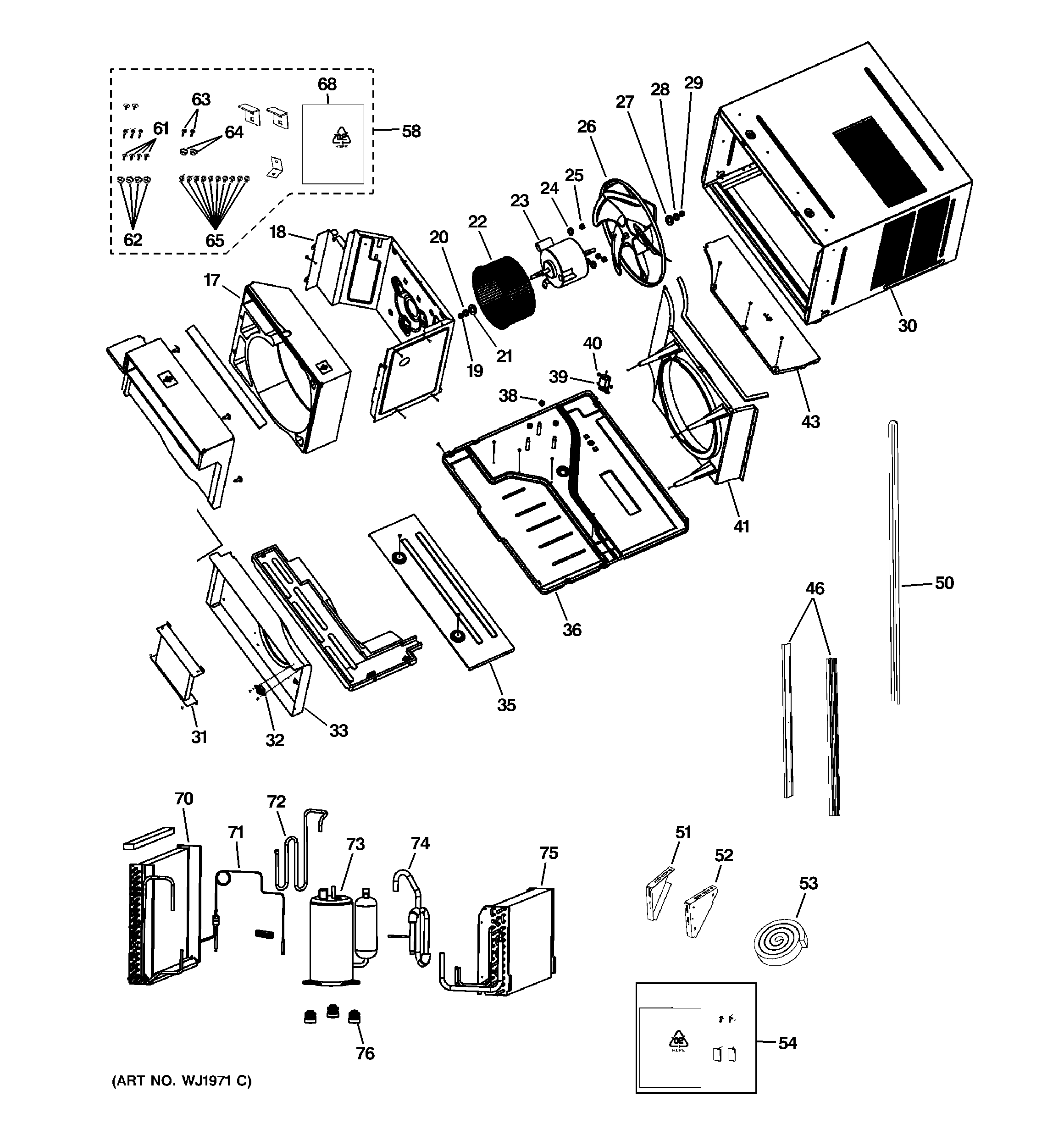

AEE24DNL1 CABINET & COMPONENTSadmin2025-04-26T08:38:02+00:00AEE24DNL1 CABINET & COMPONENTS ProductsPositionProduct18WJ82X10068 GE Motor Support19WJ01X10265 GE Washer Nut20WJ01X10266 GE Washer Assembly21WJ43X10075 GE Gasket (Diameter 10mm)22WJ73X10189 GE Air Conditioner Centrifugal Fan23FAN MOTOR24WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)25WJ01X10329 GE Air Conditioner Nut26WJ73X10190 GE Air Conditioner Axial Flow Fan27WJ43X10076 GE Gasket Diameter 8mm28WJ43X10077 GE Gasket (Diameter 8mm)29WJ01X10374 GE Levo Nut (M8)30CABINET ASM31ELECTRIC HEATER32GEN WJ26X1033133WJ79X10243 GE Electric Heater Cover35WJ79X10244 GE Top Plate36SELF-TAPPING SCREW38WJ01X10335 GE Washer Nut M839GEN WJ58X1004240WJ01X10370 GE Screw St4.2 x 6.541WJ79X10245 GE Condenser Cover43WJ79X10246 GE Top Plate46CABINET SUPPORT50WJ43X10080 GE Window Seal Sash51WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case52WJ67X10003 GE Right Side Case Mount Bracket53WJ43X10079 GE Window Top Foam Gasket54WJ01X10415 GE Hardware Kit58INSTALLATION H\W61BOLT M5X1362NUT M5X563BOLT M6X1964NUT M6X665SCREW M4.8X868WJ01X10350 GE Plastic Bag70CONDENSER ASM71CAPILLARY ASM72DISCHARGE PIPE73COMPRESSOR74SUCTION PIPE75EVAP ASM76RUBBER GROMMET
