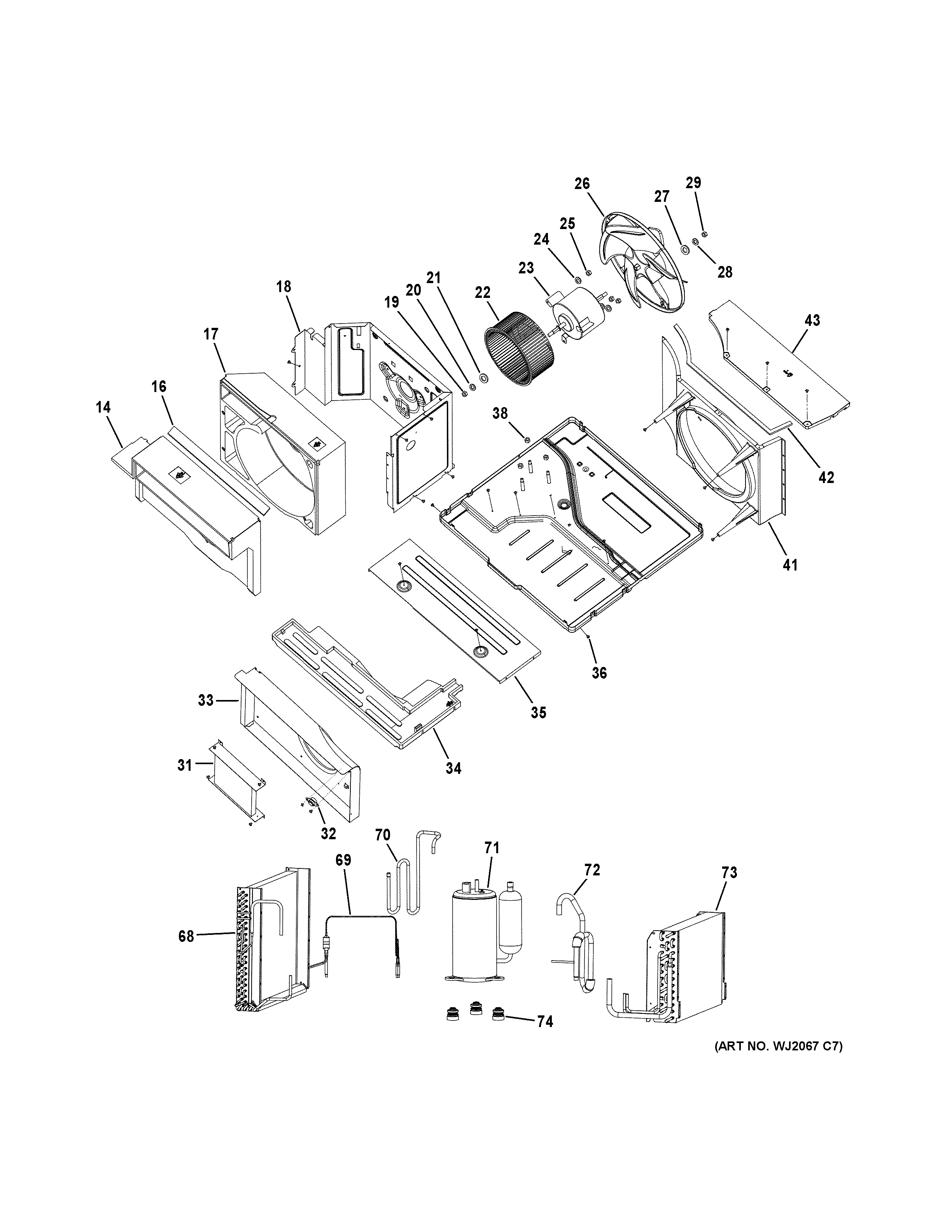

AEE24DQL1 BASE PAN & UNIT PARTS

Products

Position	Product
14	WJ76X10312 GE Air Outlet Shroud
16	WJ01X10372 GE Volute Fixed Screw
17	WJ76X10313 GE Propeller Housing
18	WJ82X10068 GE Motor Support
19	WJ01X10265 GE Washer Nut
20	WJ01X10266 GE Washer Assembly
21	WJ43X10075 GE Gasket (Diameter 10mm)
22	WJ73X10189 GE Air Conditioner Centrifugal Fan
23	WJ95X10036 GE Air Conditioner Fan Motor
24	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
25	WJ01X10329 GE Air Conditioner Nut
26	WJ73X10190 GE Air Conditioner Axial Flow Fan
27	WJ43X10076 GE Gasket Diameter 8mm
28	WJ43X10077 GE Gasket (Diameter 8mm)
29	WJ01X10374 GE Levo Nut (M8)
31	ELECTRIC HEATER
32	THERMOCOUPLE
33	WJ79X10243 GE Electric Heater Cover
34	WJ05X10064 GE Water Tray
35	WJ79X10244 GE Top Plate
36	SELF-TAPPING SCREW
38	WJ01X10335 GE Washer Nut M8
41	WJ79X10245 GE Condenser Cover
42	WJ66X10094 GE Sponge Rear Clapboard
43	WJ79X10246 GE Top Plate
68	CONDENSER ASM
69	WJ53X10246 GE Assembly Capillary
70	DISCHARGE PIPE
71	WJ98X10306 GE Air Conditioner A/C Compressor Assembly
72	TUBE, SUCTION
73	WJ88X10250 GE Evaporator Assembly
74	RUBBER GROMMET
