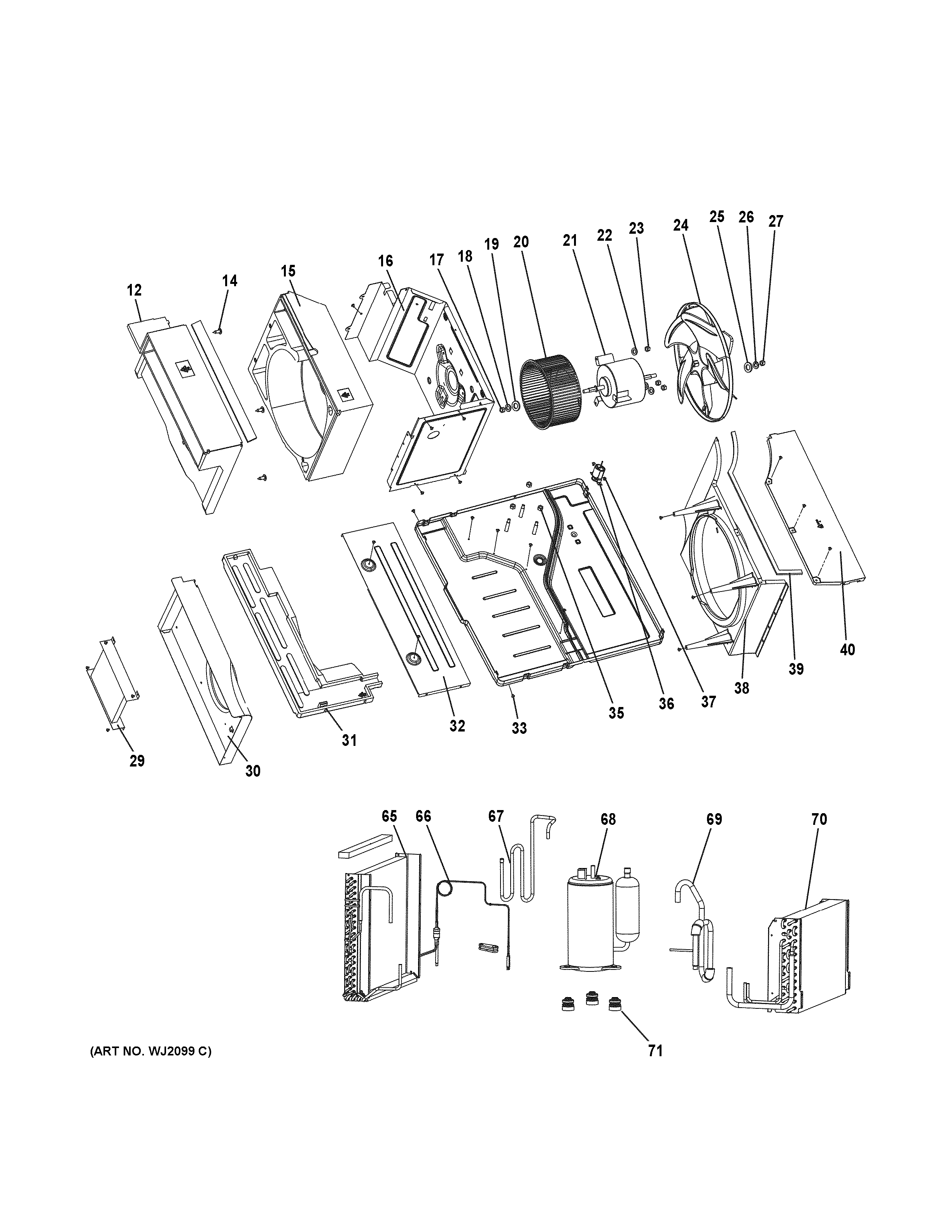

AEE24DSL1 BASE PAN & UNIT PARTS

Products

Position	Product
12	WJ76X10312 GE Air Outlet Shroud
14	WJ01X10372 GE Volute Fixed Screw
15	WJ76X10313 GE Propeller Housing
16	WJ82X10068 GE Motor Support
17	WJ01X10265 GE Washer Nut
18	WJ01X10266 GE Washer Assembly
19	WJ43X10075 GE Gasket (Diameter 10mm)
20	WJ73X10189 GE Air Conditioner Centrifugal Fan
21	WJ95X10036 GE Air Conditioner Fan Motor
22	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
23	WJ01X10329 GE Air Conditioner Nut
24	WJ73X10190 GE Air Conditioner Axial Flow Fan
25	WJ43X10076 GE Gasket Diameter 8mm
26	WJ43X10077 GE Gasket (Diameter 8mm)
27	WJ01X10374 GE Levo Nut (M8)
29	WJ27X10171 GE Air Conditioner Electric Heater
30	WJ79X10275 GE Electric Heater Cover
31	WJ05X10064 GE Water Tray
32	WJ79X10244 GE Top Plate
33	SELF-TAPPING SCREW
35	WJ01X10335 GE Washer Nut M8
36	WJ58X10044 GE Drain Valve
37	WJ01X10370 GE Screw St4.2 x 6.5
38	WJ79X10245 GE Condenser Cover
39	WJ66X10094 GE Sponge Rear Clapboard
40	WJ79X10246 GE Top Plate
65	CONDENSER ASM
66	WJ53X10246 GE Assembly Capillary
67	DISCHARGE PIPE
68	WJ98X10306 GE Air Conditioner A/C Compressor Assembly
69	TUBE, SUCTION
70	WJ88X10247 GE Evaporator Assembly
71	RUBBER GROMMET
