AEE24DTH1 ROOM AIR CONDITIONER

AEE24DTH1 ROOM AIR CONDITIONER

Written by

in

AEE24DTH1 ROOM AIR CONDITIONER

Products

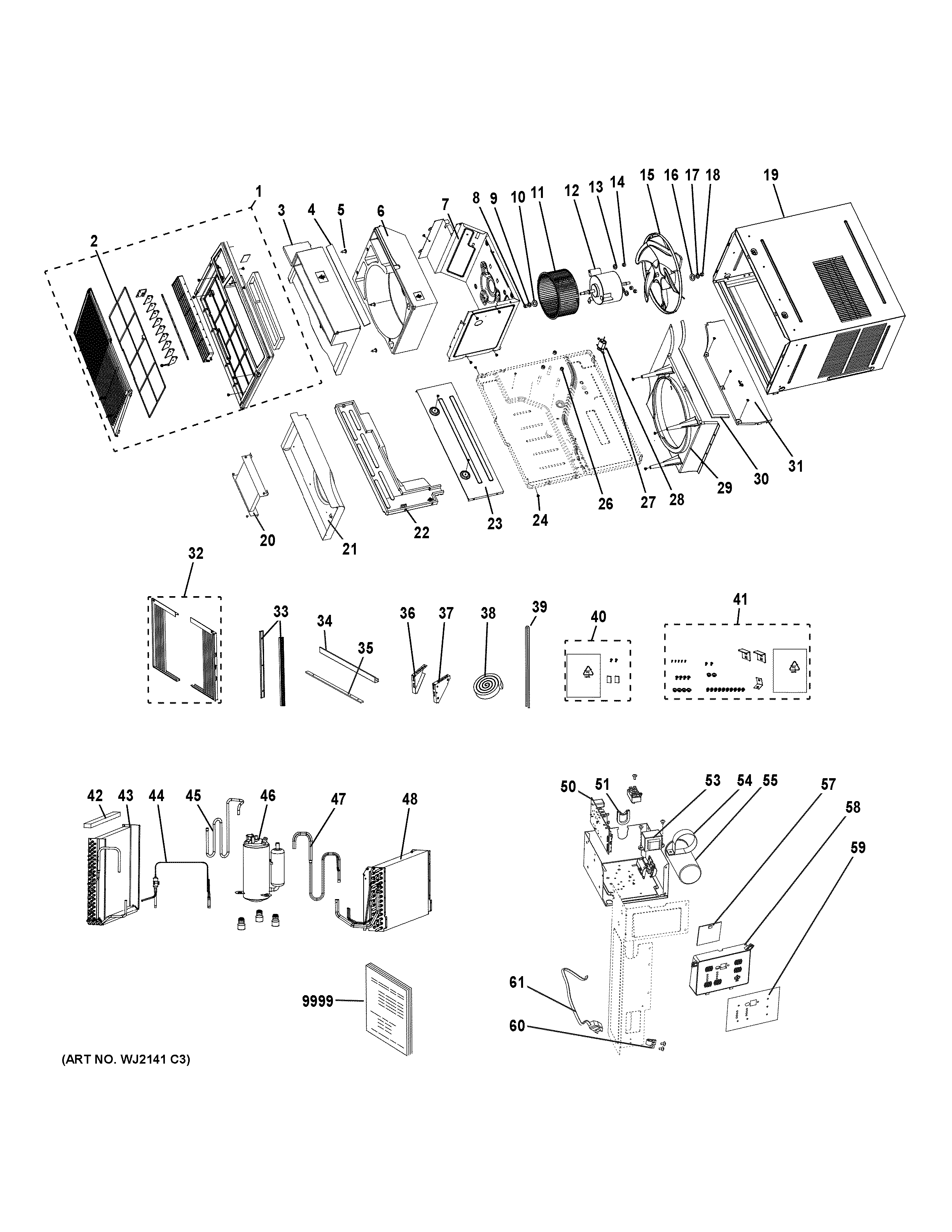

Position	Product
1	WJ71X10779 GE Front Panel Assembly
2	WJ71X10710 GE Air Conditioner Filter
3	WJ76X10312 GE Air Outlet Shroud
4	WJ43X20216 GE Connecting Foam Sponge
5	WJ01X10372 GE Volute Fixed Screw
6	WJ76X10313 GE Propeller Housing
7	WJ82X10068 GE Motor Support
8	WJ01X10265 GE Washer Nut
9	WJ01X10266 GE Washer Assembly
10	WJ43X10075 GE Gasket (Diameter 10mm)
11	WJ73X10189 GE Air Conditioner Centrifugal Fan
12	WJ95X10036 GE Air Conditioner Fan Motor
13	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
14	WJ01X10329 GE Air Conditioner Nut
15	WJ73X10190 GE Air Conditioner Axial Flow Fan
16	WJ43X10076 GE Gasket Diameter 8mm
17	WJ43X10077 GE Gasket (Diameter 8mm)
18	WJ01X10374 GE Levo Nut (M8)
19	WJ90X20542 GE Cabinet Assembly
20	WJ27X10171 GE Air Conditioner Electric Heater
21	WJ79X10275 GE Electric Heater Cover
22	WJ05X10064 GE Water Tray
23	WJ79X10244 GE Top Plate
24	WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC
26	WJ01X10335 GE Washer Nut M8
27	WJ58X10044 GE Drain Valve
28	WJ01X10370 GE Screw St4.2 x 6.5
29	WJ79X10245 GE Condenser Cover
30	WJ66X10094 GE Sponge Rear Clapboard
31	WJ79X10246 GE Top Plate
32	WJ69X10017 GE Air Conditioner Curtain Assembly
33	WJ68X10064 GE Cabinet Support
34	WJ82X10069 GE Top Guide
35	WJ43X10082 GE Gasket Form
36	WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
37	WJ67X10003 GE Right Side Case Mount Bracket
38	WJ43X10079 GE Window Top Foam Gasket
39	WJ43X10080 GE Window Seal Sash
40	WJ01X10415 GE Hardware Kit
41	WJ01X10433 GE Hardware Installation
42	WJ43X20215 GE Condenser Support
43	WJ79X20601 GE Air Conditioner Condenser Assembly
44	WJ53X20600 GE Air Conditioner Capillary Assembly
45	WJ49X20547 GE Air Conditioner Discharge Tube
46	WJ98X20546 GE Air Conditioner Compressor and Fittings
47	WJ57X20549 GE Air Conditioner Suction Tube Assembly
48	WJ87X21255 GE Air Conditioner Evaporator Assembly
50	WJ29X10053 GE Air Conditioner Main Board
51	WJ01X20199 GE Loop Cable Cross
53	WJ27X10154 GE Air Conditioner Transformer
54	WJ02X10033 GE Capacitor Clamp
55	WJ20X20541 GE Air Conditioner CBB65 Capacitor
57	WJ26X10377 GE Air Conditioner Display Board
58	WJ26X10346 GE Air Conditioner Electric Controller Box
59	WJ07X10267 GE Air Conditioner Membrane Overlay
60	CABLE CLAMP
61	WJ35X10168 GE Air Conditioner Power Cord
9999	USE & CARE MANUAL
9999	PM OWNERS MANUAL
